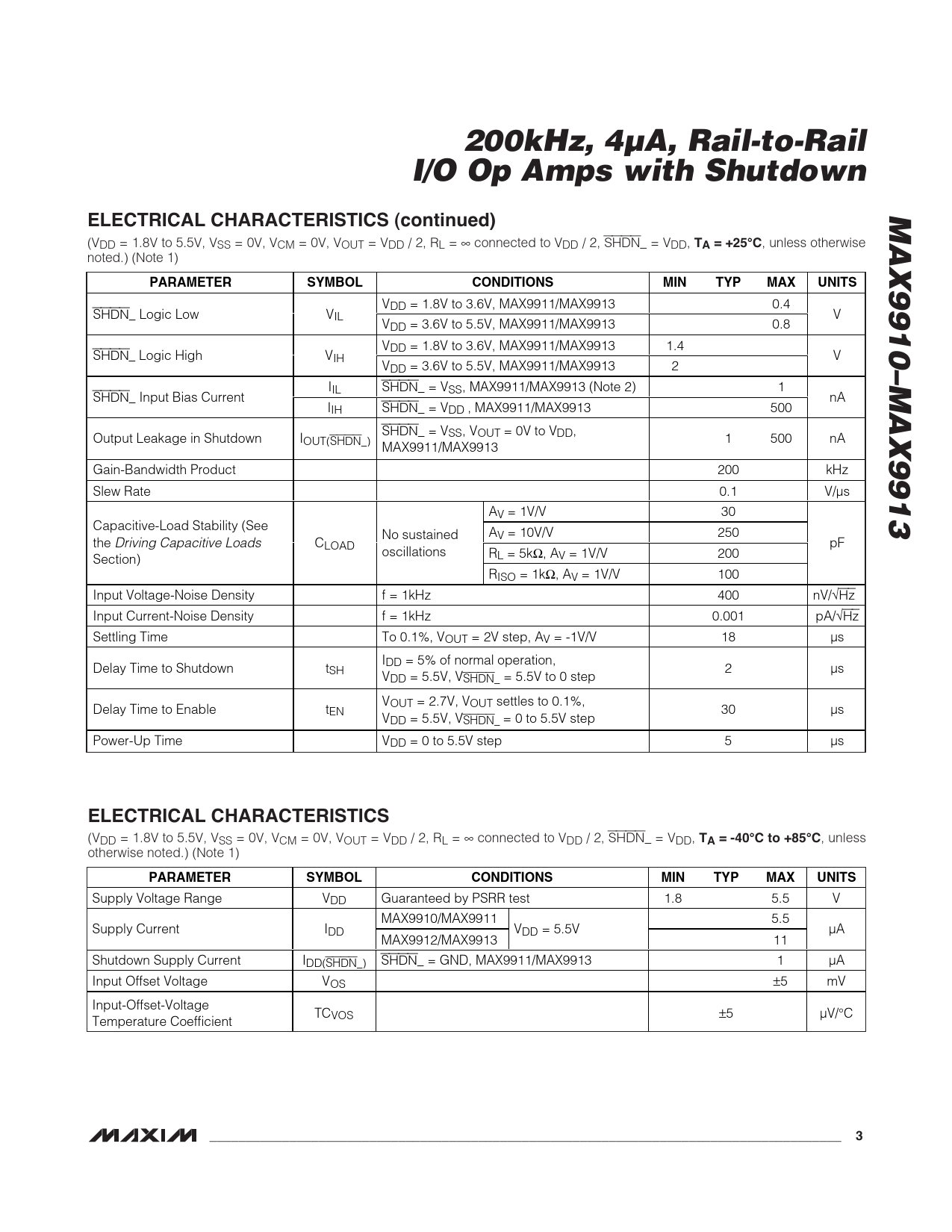

200kHz, 4µA, Rail-to-Rail I/O Op Amps with Shutdown MAX9910–MAX9913 ELECTRICAL CHARACTERISTICS (continued)
(VDD = 1.8V to 5.5V, VSS = 0V, VCM = 0V, VOUT = VDD / 2, RL = ∞ connected to VDD / 2, SHDN_ = VDD,
TA = +25°C
, unless otherwise noted.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
VDD = 1.8V to 3.6V, MAX9911/MAX9913 0.4 SHDN_ Logic Low VIL V VDD = 3.6V to 5.5V, MAX9911/MAX9913 0.8 VDD = 1.8V to 3.6V, MAX9911/MAX9913 1.4 SHDN_ Logic High VIH V VDD = 3.6V to 5.5V, MAX9911/MAX9913 2 IIL SHDN_ = VSS, MAX9911/MAX9913 (Note 2) 1 SHDN_ Input Bias Current nA IIH SHDN_ = VDD , MAX9911/MAX9913 500 SHDN_ = V Output Leakage in Shutdown I SS, VOUT = 0V to VDD, OUT(SHDN_) 1 500 nA MAX9911/MAX9913 Gain-Bandwidth Product 200 kHz Slew Rate 0.1 V/µs AV = 1V/V 30 Capacitive-Load Stability (See No sustained AV = 10V/V 250 the Driving Capacitive Loads CLOAD pF oscillations RL = 5kΩ, AV = 1V/V 200 Section) RISO = 1kΩ, AV = 1V/V 100 Input Voltage-Noise Density f = 1kHz 400 nV/√Hz Input Current-Noise Density f = 1kHz 0.001 pA/√Hz Settling Time To 0.1%, VOUT = 2V step, AV = -1V/V 18 µs I Delay Time to Shutdown t DD = 5% of normal operation, SH 2 µs VDD = 5.5V, VSHDN_ = 5.5V to 0 step V Delay Time to Enable t OUT = 2.7V, VOUT settles to 0.1%, EN 30 µs VDD = 5.5V, VSHDN_ = 0 to 5.5V step Power-Up Time VDD = 0 to 5.5V step 5 µs
ELECTRICAL CHARACTERISTICS
(VDD = 1.8V to 5.5V, VSS = 0V, VCM = 0V, VOUT = VDD / 2, RL = ∞ connected to VDD / 2, SHDN_ = VDD,
TA = -40°C to +85°C
, unless otherwise noted.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Supply Voltage Range VDD Guaranteed by PSRR test 1.8 5.5 V MAX9910/MAX9911 5.5 Supply Current IDD VDD = 5.5V µA MAX9912/MAX9913 11 Shutdown Supply Current IDD(SHDN_) SHDN_ = GND, MAX9911/MAX9913 1 µA Input Offset Voltage VOS ±5 mV Input-Offset-Voltage TCVOS ±5 µV/°C Temperature Coefficient
