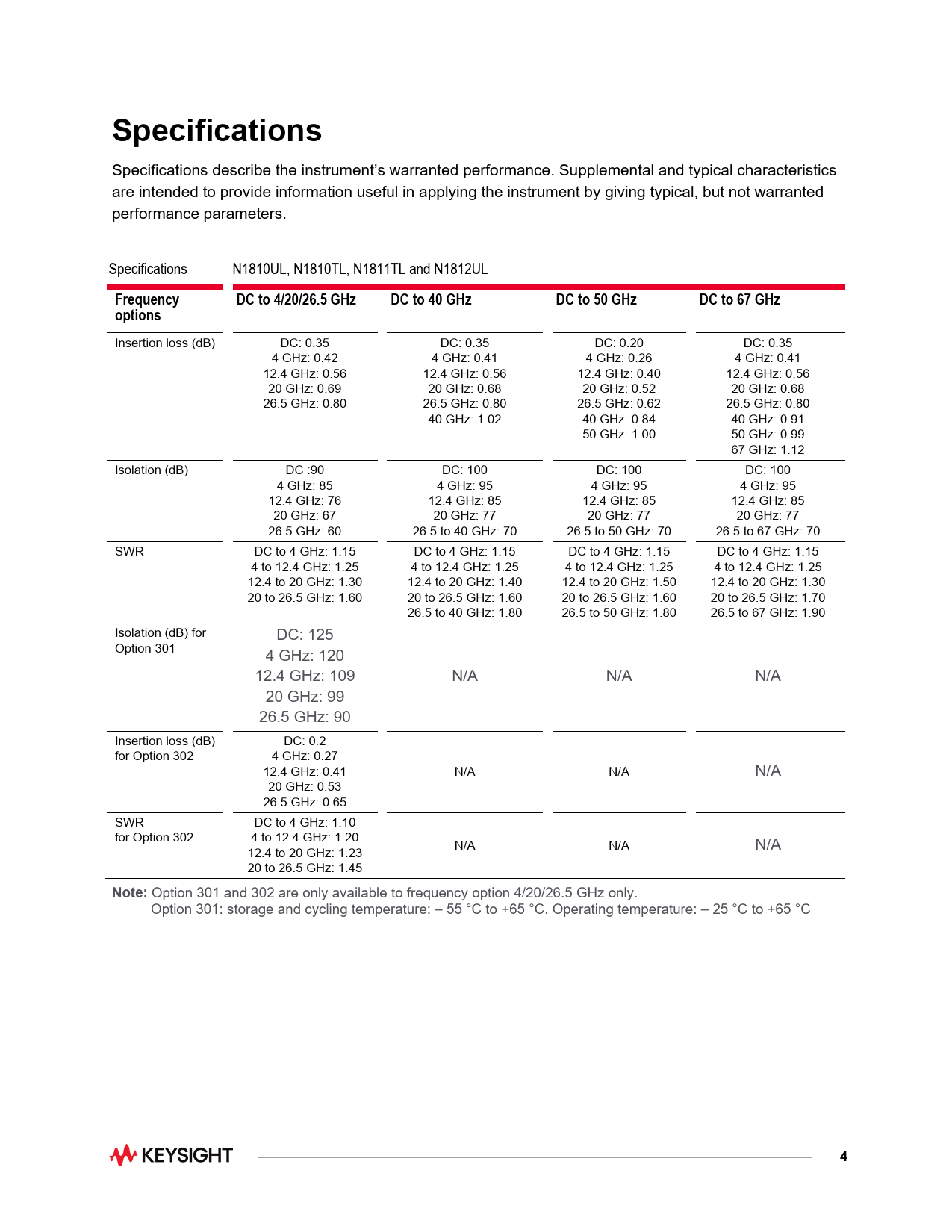

Specifications
Specifications describe the instrument’s warranted performance. Supplemental and typical characteristics are intended to provide information useful in applying the instrument by giving typical, but not warranted performance parameters. Specifications N1810UL, N1810TL, N1811TL and N1812UL
Frequency DC to 4/20/26.5 GHz DC to 40 GHz DC to 50 GHz DC to 67 GHz options
Insertion loss (dB) DC: 0.35 DC: 0.35 DC: 0.20 DC: 0.35 4 GHz: 0.42 4 GHz: 0.41 4 GHz: 0.26 4 GHz: 0.41 12.4 GHz: 0.56 12.4 GHz: 0.56 12.4 GHz: 0.40 12.4 GHz: 0.56 20 GHz: 0.69 20 GHz: 0.68 20 GHz: 0.52 20 GHz: 0.68 26.5 GHz: 0.80 26.5 GHz: 0.80 26.5 GHz: 0.62 26.5 GHz: 0.80 40 GHz: 1.02 40 GHz: 0.84 40 GHz: 0.91 50 GHz: 1.00 50 GHz: 0.99 67 GHz: 1.12 Isolation (dB) DC :90 DC: 100 DC: 100 DC: 100 4 GHz: 85 4 GHz: 95 4 GHz: 95 4 GHz: 95 12.4 GHz: 76 12.4 GHz: 85 12.4 GHz: 85 12.4 GHz: 85 20 GHz: 67 20 GHz: 77 20 GHz: 77 20 GHz: 77 26.5 GHz: 60 26.5 to 40 GHz: 70 26.5 to 50 GHz: 70 26.5 to 67 GHz: 70 SWR DC to 4 GHz: 1.15 DC to 4 GHz: 1.15 DC to 4 GHz: 1.15 DC to 4 GHz: 1.15 4 to 12.4 GHz: 1.25 4 to 12.4 GHz: 1.25 4 to 12.4 GHz: 1.25 4 to 12.4 GHz: 1.25 12.4 to 20 GHz: 1.30 12.4 to 20 GHz: 1.40 12.4 to 20 GHz: 1.50 12.4 to 20 GHz: 1.30 20 to 26.5 GHz: 1.60 20 to 26.5 GHz: 1.60 20 to 26.5 GHz: 1.60 20 to 26.5 GHz: 1.70 26.5 to 40 GHz: 1.80 26.5 to 50 GHz: 1.80 26.5 to 67 GHz: 1.90 Isolation (dB) for DC: 125 Option 301 4 GHz: 120 12.4 GHz: 109 N/A N/A N/A 20 GHz: 99 26.5 GHz: 90 Insertion loss (dB) DC: 0.2 for Option 302 4 GHz: 0.27 12.4 GHz: 0.41 N/A N/A N/A 20 GHz: 0.53 26.5 GHz: 0.65 SWR DC to 4 GHz: 1.10 for Option 302 4 to 12.4 GHz: 1.20 12.4 to 20 GHz: 1.23 N/A N/A N/A 20 to 26.5 GHz: 1.45
Note:
Option 301 and 302 are only available to frequency option 4/20/26.5 GHz only. Option 301: storage and cycling temperature: – 55 °C to +65 °C. Operating temperature: – 25 °C to +65 °C
4
