Datasheet AN431 (Diodes) - 2
| 制造商 | Diodes |
| 描述 | Adjustable Precision Shunt Regulators |
| 页数 / 页 | 13 / 2 — A Product Line of. Diodes Incorporated. AN431. Typical Applications … |
| 文件格式/大小 | PDF / 364 Kb |
| 文件语言 | 英语 |
A Product Line of. Diodes Incorporated. AN431. Typical Applications Circuit. www.diodes.com
该数据表的模型线
文件文字版本
A Product Line of Diodes Incorporated AN431 Typical Applications Circuit

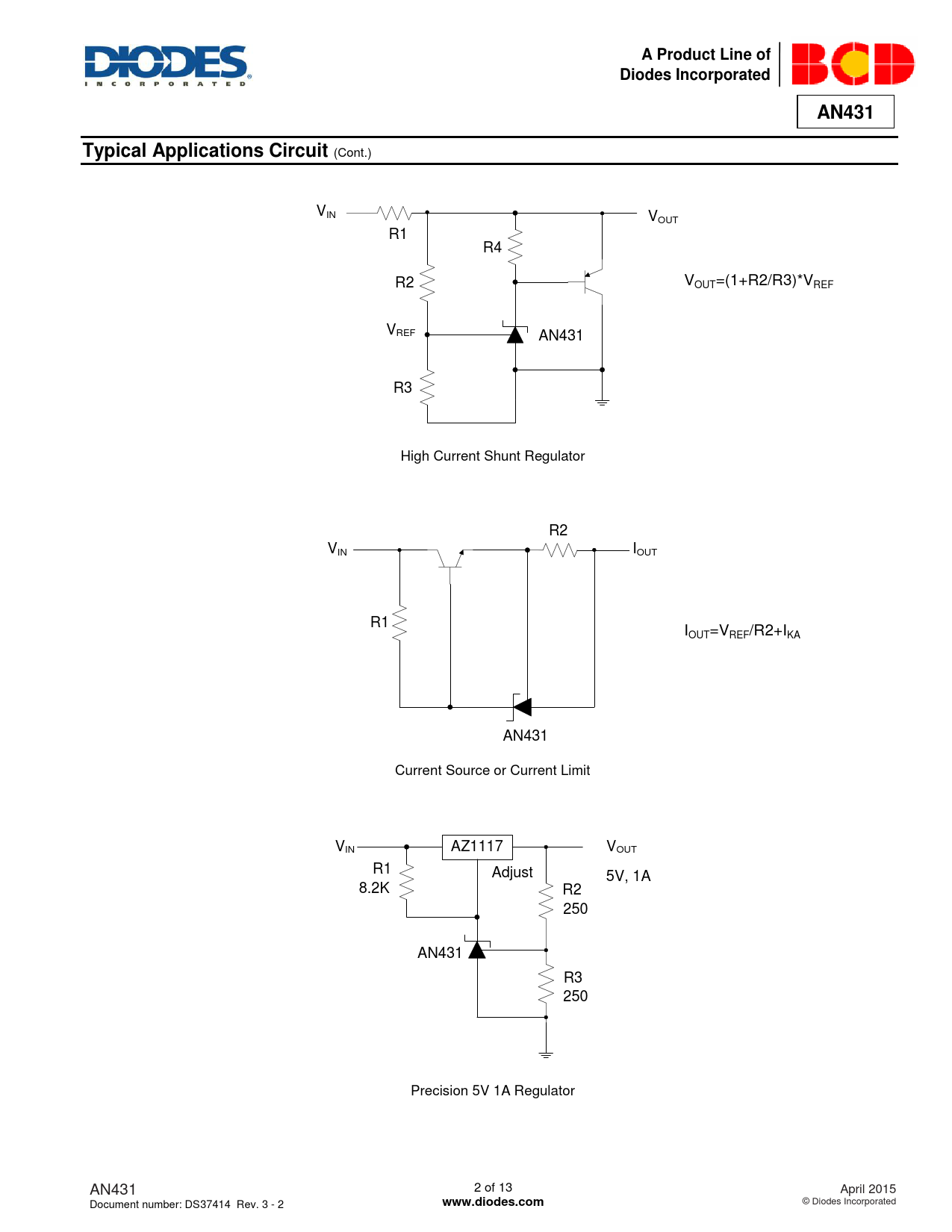

(Cont.) VIN VOUT R1 R4 R2 VOUT=(1+R2/R3)*VREF VREF AN431 R3 High Current Shunt Regulator R2 VIN IOUT R1 IOUT=VREF/R2+IKA AN431 Current Source or Current Limit VIN AZ1117 VOUT R1 Adjust 5V, 1A 8.2K R2 250 AN431 R3 250 Precision 5V 1A Regulator AN431 2 of 13 April 2015 Document number: DS37414 Rev. 3 - 2
