Datasheet PD333-3C/HO/L2 (Everlight) - 2
| 制造商 | Everlight |
| 描述 | 5mm Silicon PIN Photodiode , T-1 3/4 |
| 页数 / 页 | 7 / 2 — PD333-3C/H0/L2. Package Dimensions. Notes:. Absolute Maximum Ratings … |
| 文件格式/大小 | PDF / 238 Kb |
| 文件语言 | 英语 |
PD333-3C/H0/L2. Package Dimensions. Notes:. Absolute Maximum Ratings (Ta=25. Parameter Symbol. Rating. Units
该数据表的模型线
文件文字版本

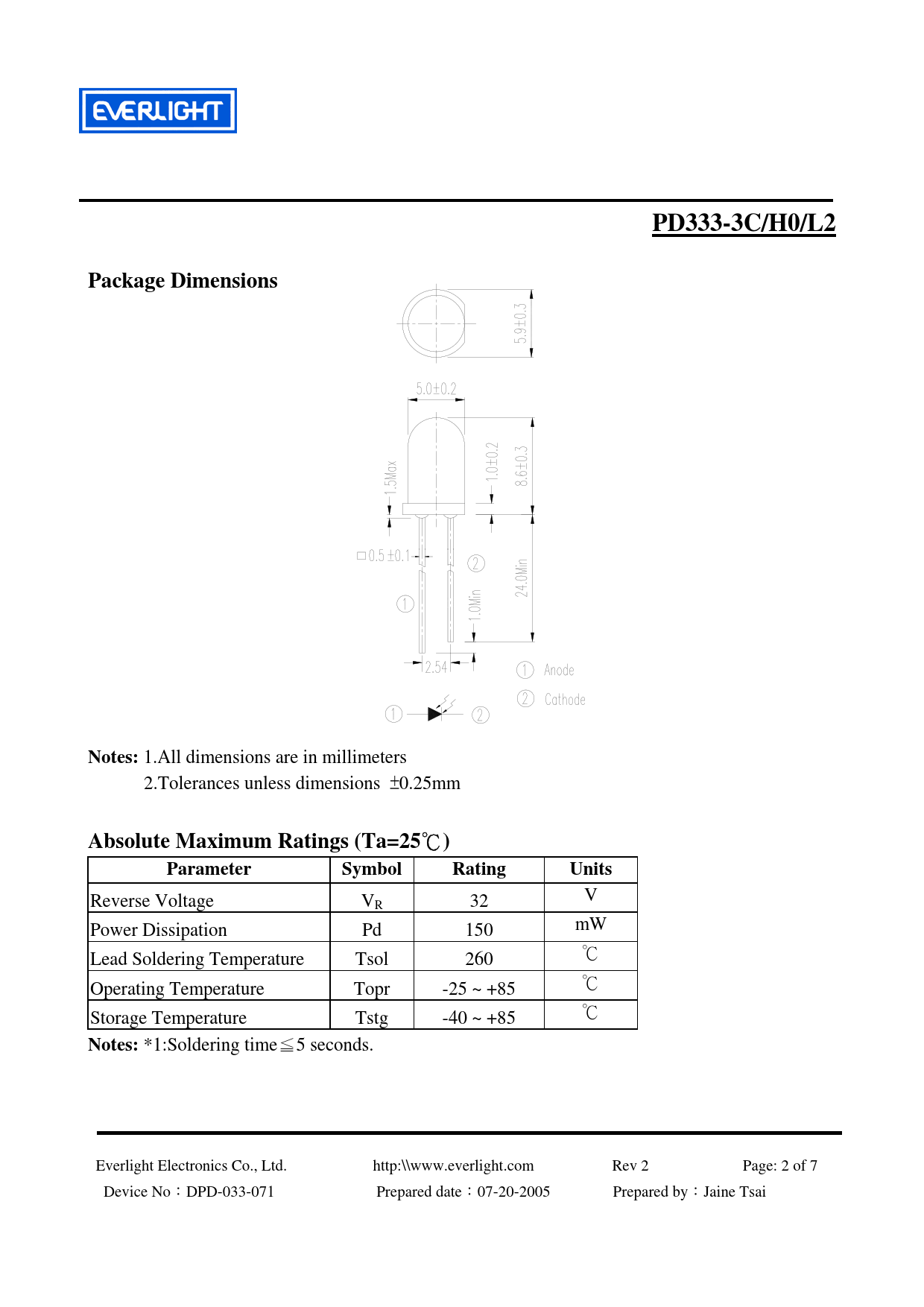

PD333-3C/H0/L2 Package Dimensions Notes:
1.All dimensions are in millimeters
2.Tolerances unless dimensions ±0.25mm
Absolute Maximum Ratings (Ta=25
℃
) Parameter Symbol Rating Units
Reverse Voltage VR 32 V Power Dissipation Pd 150 mW Lead Soldering Temperature Tsol 260 ℃ Operating Temperature Topr -25 ~ +85 ℃ Storage Temperature Tstg -40 ~ +85 ℃
Notes:
*1:Soldering time≦5 seconds.
Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 2 Page: 2 of 7 Device No：DPD-033-071 Prepared date：07-20-2005 Prepared by：Jaine Tsai
1.All dimensions are in millimeters
2.Tolerances unless dimensions ±0.25mm
Absolute Maximum Ratings (Ta=25
℃
) Parameter Symbol Rating Units
Reverse Voltage VR 32 V Power Dissipation Pd 150 mW Lead Soldering Temperature Tsol 260 ℃ Operating Temperature Topr -25 ~ +85 ℃ Storage Temperature Tstg -40 ~ +85 ℃
Notes:
*1:Soldering time≦5 seconds.
Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 2 Page: 2 of 7 Device No：DPD-033-071 Prepared date：07-20-2005 Prepared by：Jaine Tsai
