1.0V Micropower, SOT23, Operational Amplifier. MAX4289. Typical Operating Characteristics (continued)

1.0V Micropower, SOT23, Operational Amplifier MAX4289 Typical Operating Characteristics (continued)

该数据表的模型线

文件文字版本

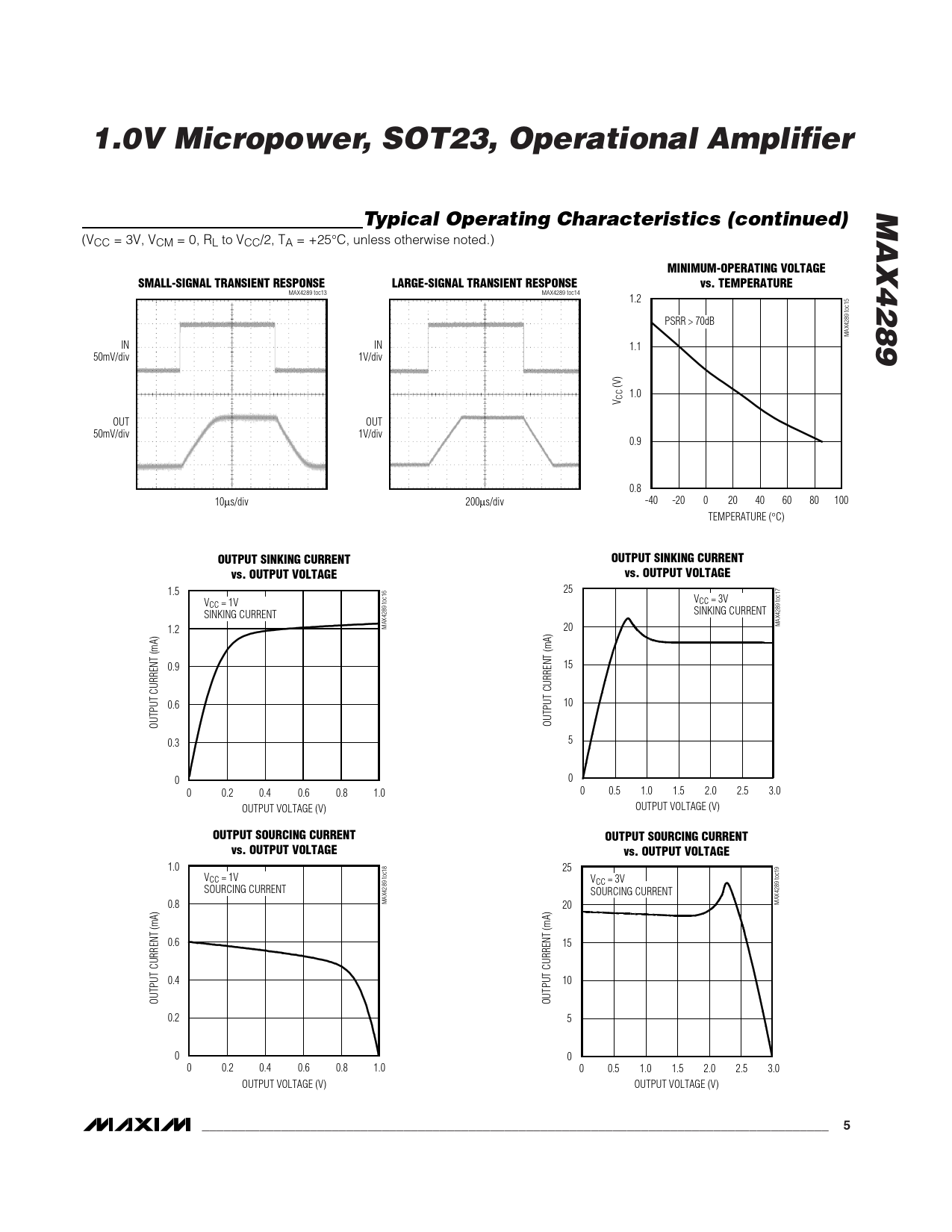

1.0V Micropower, SOT23, Operational Amplifier MAX4289 Typical Operating Characteristics (continued)
(VCC = 3V, VCM = 0, RL to VCC/2, TA = +25°C, unless otherwise noted.)
MINIMUM-OPERATING VOLTAGE SMALL-SIGNAL TRANSIENT RESPONSE LARGE-SIGNAL TRANSIENT RESPONSE vs. TEMPERATURE
MAX4289 toc13 MAX4289 toc14 1.2 PSRR > 70dB MAX4289 toc15 IN IN 1.1 50mV/div 1V/div (V) 1.0 V CC OUT OUT 50mV/div 1V/div 0.9 0.8 10µs/div 200µs/div -40 -20 0 20 40 60 80 100 TEMPERATURE (°C)
OUTPUT SINKING CURRENT OUTPUT SINKING CURRENT vs. OUTPUT VOLTAGE vs. OUTPUT VOLTAGE
1.5 25 V V CC = 1V CC = 3V SINKING CURRENT SINKING CURRENT MAX4289 toc17 1.2 MAX4289 toc16 20 0.9 15 0.6 10 OUTPUT CURRENT (mA) OUTPUT CURRENT (mA) 0.3 5 0 0 0 0.2 0.4 0.6 0.8 1.0 0 0.5 1.0 1.5 2.0 2.5 3.0 OUTPUT VOLTAGE (V) OUTPUT VOLTAGE (V)
OUTPUT SOURCING CURRENT OUTPUT SOURCING CURRENT vs. OUTPUT VOLTAGE vs. OUTPUT VOLTAGE
1.0 25 VCC = 1V VCC = 3V SOURCING CURRENT SOURCING CURRENT 0.8 MAX4289 toc18 20 MAX4289 toc19 0.6 15 0.4 10 OUTPUT CURRENT (mA) OUTPUT CURRENT (mA) 0.2 5 0 0 0 0.2 0.4 0.6 0.8 1.0 0 0.5 1.0 1.5 2.0 2.5 3.0 OUTPUT VOLTAGE (V) OUTPUT VOLTAGE (V)
_______________________________________________________________________________________ 5
