Datasheet AZ431L (Diodes) - 4
| 制造商 | Diodes |
| 描述 | Low-voltage (1.24v) Adjustable Precision Shunt Regulator |
| 页数 / 页 | 19 / 4 — AZ431L. Functional Block Diagram. Absolute Maximum Ratings. Symbol. … |
| 文件格式/大小 | PDF / 602 Kb |
| 文件语言 | 英语 |
AZ431L. Functional Block Diagram. Absolute Maximum Ratings. Symbol. Parameter. Rating. Unit. Recommended Operating Conditions. Min. Max
该数据表的模型线
文件文字版本

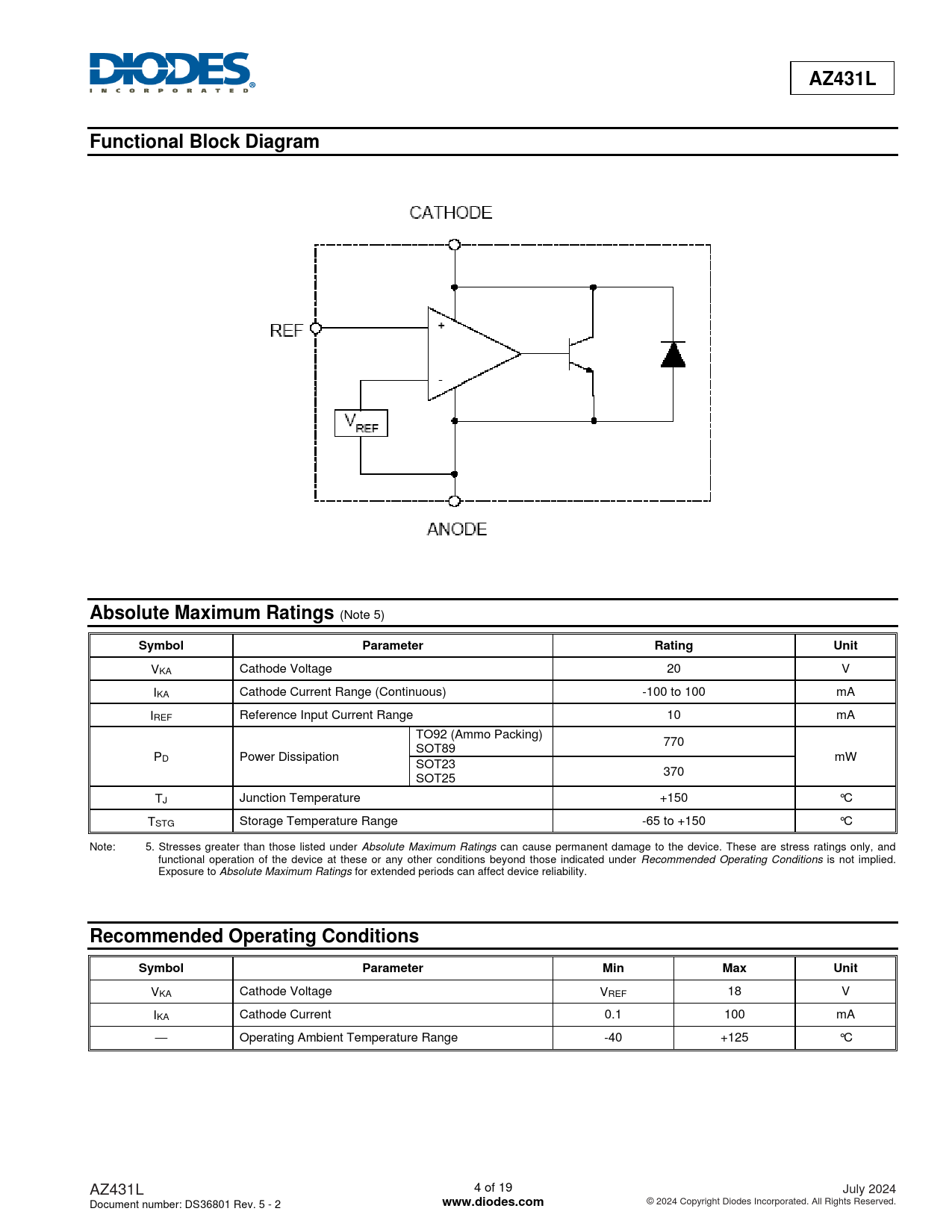

AZ431L Functional Block Diagram Absolute Maximum Ratings
(Note 5)
Symbol Parameter Rating Unit
VKA Cathode Voltage 20 V IKA Cathode Current Range (Continuous) -100 to 100 mA IREF Reference Input Current Range 10 mA TO92 (Ammo Packing) 770 SOT89 PD Power Dissipation mW SOT23 370 SOT25 TJ Junction Temperature +150 °C TSTG Storage Temperature Range -65 to +150 °C Note: 5. Stresses greater than those listed under Absolute Maximum Ratings can cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to Absolute Maximum Ratings for extended periods can affect device reliability.
Recommended Operating Conditions Symbol Parameter Min Max Unit
VKA Cathode Voltage VREF 18 V IKA Cathode Current 0.1 100 mA — Operating Ambient Temperature Range -40 +125 °C AZ431L 4 of 19 July 2024 Document number: DS36801 Rev. 5 - 2
www.diodes.com
© 2024 Copyright Diodes Incorporated. All Rights Reserved.
