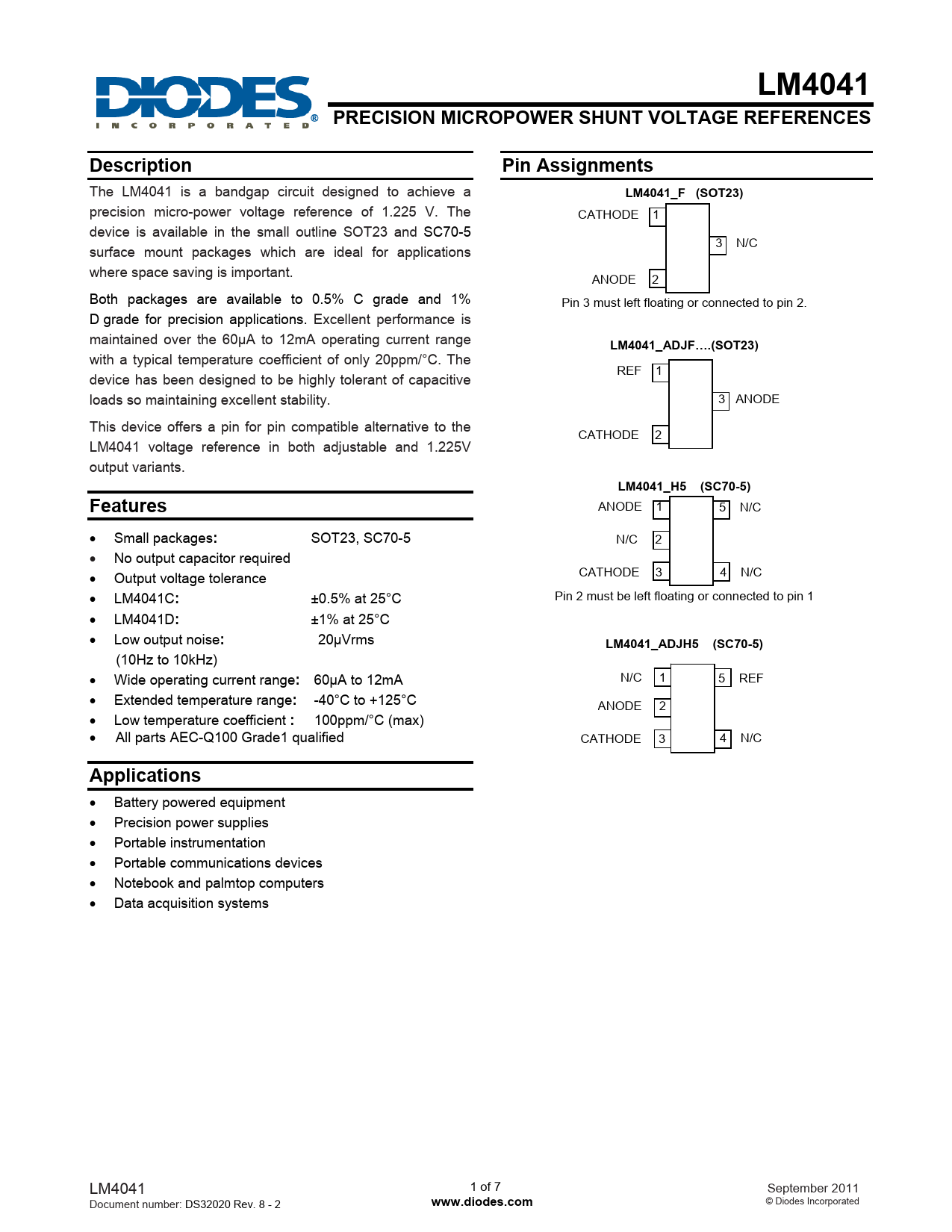

LM4041 PRECISION MICROPOWER SHUNT VOLTAGE REFERENCES Description Pin Assignments
The LM4041 is a bandgap circuit designed to achieve a
LM4041_F (SOT23)
precision micro-power voltage reference of 1.225 V. The CATHODE 1 device is available in the small outline SOT23 and SC70-5 3 N/C surface mount packages which are ideal for applications where space saving is important. ANODE 2 Both packages are available to 0.5% C grade and 1% Pin 3 must left floating or connected to pin 2. D grade for precision applications. Excellent performance is maintained over the 60µA to 12mA operating current range
LM4041_ADJF….(SOT23)
with a typical temperature coefficient of only 20ppm/°C. The REF 1 device has been designed to be highly tolerant of capacitive loads so maintaining excellent stability. 3 ANODE This device offers a pin for pin compatible alternative to the CATHODE 2 LM4041 voltage reference in both adjustable and 1.225V output variants.
LM4041_H5 (SC70-5) Features
ANODE 1 5 N/C • Smal packages
:
SOT23, SC70-5 N/C 2 • No output capacitor required • Output voltage tolerance CATHODE 3 4 N/C • LM4041C
:
±0.5% at 25°C Pin 2 must be left floating or connected to pin 1 • LM4041D
:
±1% at 25°C • Low output noise
:
20µVrms
LM4041_ADJH5 (SC70-5)
(10Hz to 10kHz) • Wide operating current range
:
60µA to 12mA N/C 1 5 REF • Extended temperature range
:
-40°C to +125°C ANODE 2 • Low temperature coefficient
:
100ppm/°C (max) • All parts AEC-Q100 Grade1 qualified CATHODE 3 4 N/C
Applications
• Battery powered equipment • Precision power supplies • Portable instrumentation • Portable communications devices • Notebook and palmtop computers • Data acquisition systems LM4041 1 of 7 September 2011 Document number: DS32020 Rev. 8 - 2
