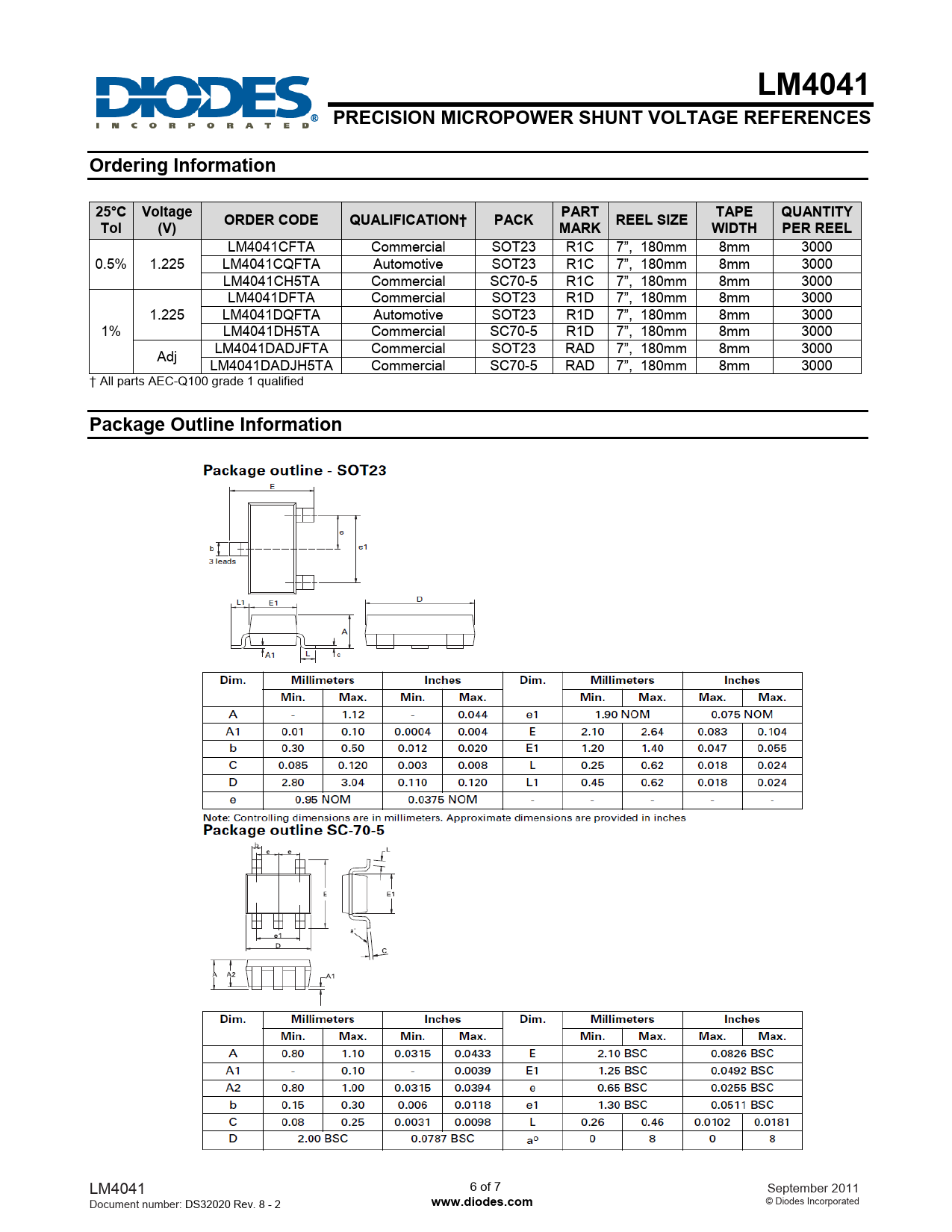

LM4041. PRECISION MICROPOWER SHUNT VOLTAGE REFERENCES. Ordering Information. 25°C Voltage. PART. TAPE. QUANTITY. ORDER CODE
该数据表的模型线
文件文字版本
LM4041 PRECISION MICROPOWER SHUNT VOLTAGE REFERENCES Ordering Information 25°C Voltage PART TAPE QUANTITY ORDER CODE QUALIFICATION† PACK REEL SIZE Tol (V) MARK WIDTH PER REEL
LM4041CFTA Commercial SOT23 R1C 7”, 180mm 8mm 3000 0.5% 1.225 LM4041CQFTA Automotive SOT23 R1C 7”, 180mm 8mm 3000 LM4041CH5TA Commercial SC70-5 R1C 7”, 180mm 8mm 3000 LM4041DFTA Commercial SOT23 R1D 7”, 180mm 8mm 3000 1.225 LM4041DQFTA Automotive SOT23 R1D 7”, 180mm 8mm 3000 1% LM4041DH5TA Commercial SC70-5 R1D 7”, 180mm 8mm 3000 LM4041DADJFTA Commercial SOT23 RAD 7”, 180mm 8mm 3000 Adj LM4041DADJH5TA Commercial SC70-5 RAD 7”, 180mm 8mm 3000 † All parts AEC-Q100 grade 1 qualified
Package Outline Information
LM4041 6 of 7 September 2011 Document number: DS32020 Rev. 8 - 2
www.diodes.com
© Diodes Incorporated
LM4041CFTA Commercial SOT23 R1C 7”, 180mm 8mm 3000 0.5% 1.225 LM4041CQFTA Automotive SOT23 R1C 7”, 180mm 8mm 3000 LM4041CH5TA Commercial SC70-5 R1C 7”, 180mm 8mm 3000 LM4041DFTA Commercial SOT23 R1D 7”, 180mm 8mm 3000 1.225 LM4041DQFTA Automotive SOT23 R1D 7”, 180mm 8mm 3000 1% LM4041DH5TA Commercial SC70-5 R1D 7”, 180mm 8mm 3000 LM4041DADJFTA Commercial SOT23 RAD 7”, 180mm 8mm 3000 Adj LM4041DADJH5TA Commercial SC70-5 RAD 7”, 180mm 8mm 3000 † All parts AEC-Q100 grade 1 qualified
