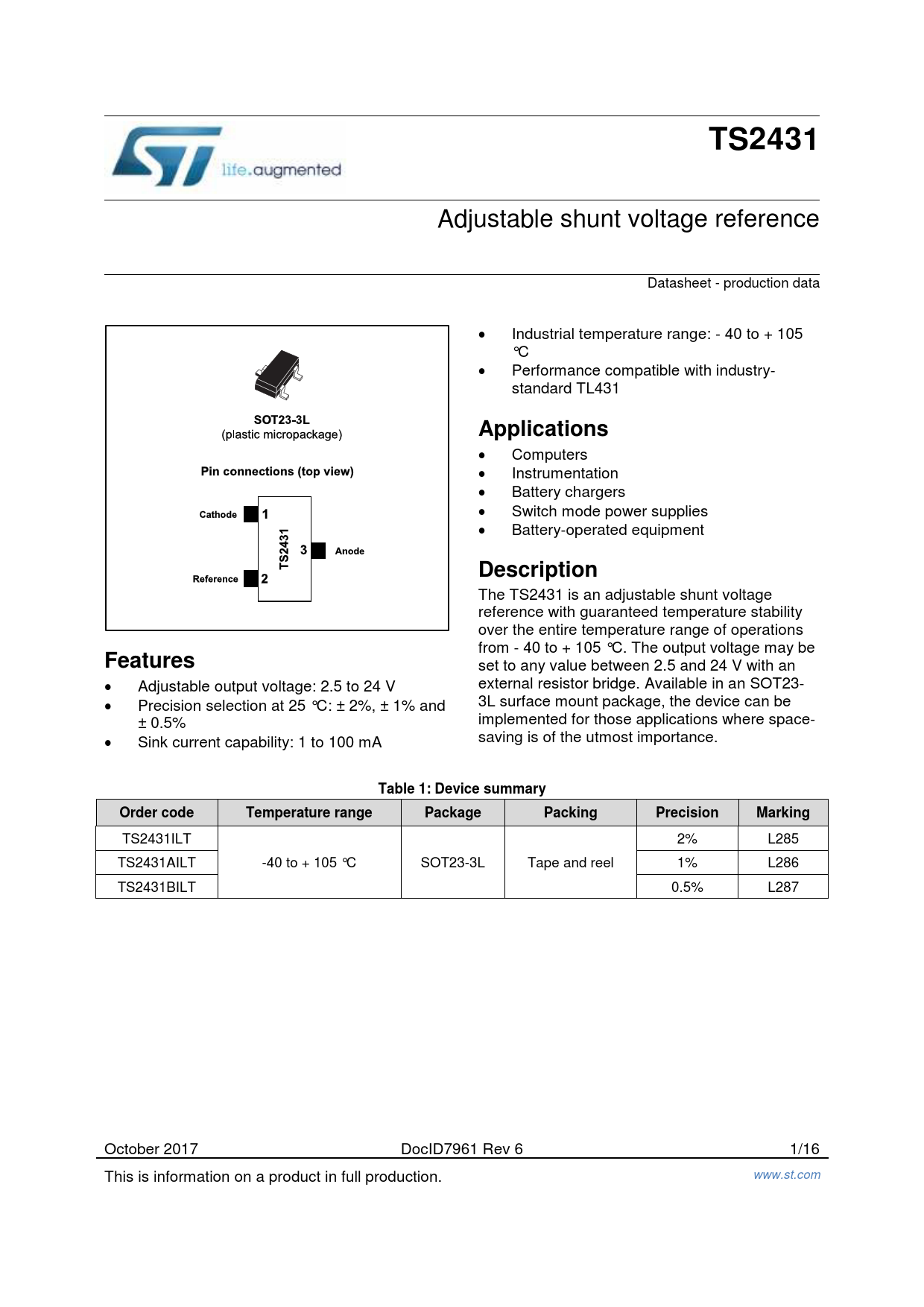

TS2431
Adjustable shunt voltage reference Datasheet - production data Industrial temperature range: - 40 to + 105 °C Performance compatible with industry- standard TL431
Applications
Computers Instrumentation Battery chargers Switch mode power supplies Battery-operated equipment
Description
The TS2431 is an adjustable shunt voltage reference with guaranteed temperature stability over the entire temperature range of operations from - 40 to + 105 °C. The output voltage may be
Features
set to any value between 2.5 and 24 V with an Adjustable output voltage: 2.5 to 24 V external resistor bridge. Available in an SOT23- Precision selection at 25 °C: ± 2%, ± 1% and 3L surface mount package, the device can be ± 0.5% implemented for those applications where space- Sink current capability: 1 to 100 mA saving is of the utmost importance.
Table 1: Device summary Order code Temperature range Package Packing Precision Marking
TS2431ILT 2% L285 TS2431AILT -40 to + 105 °C SOT23-3L Tape and reel 1% L286 TS2431BILT 0.5% L287 October 2017 DocID7961 Rev 6 1/16 This is information on a product in full production. www.st.com
