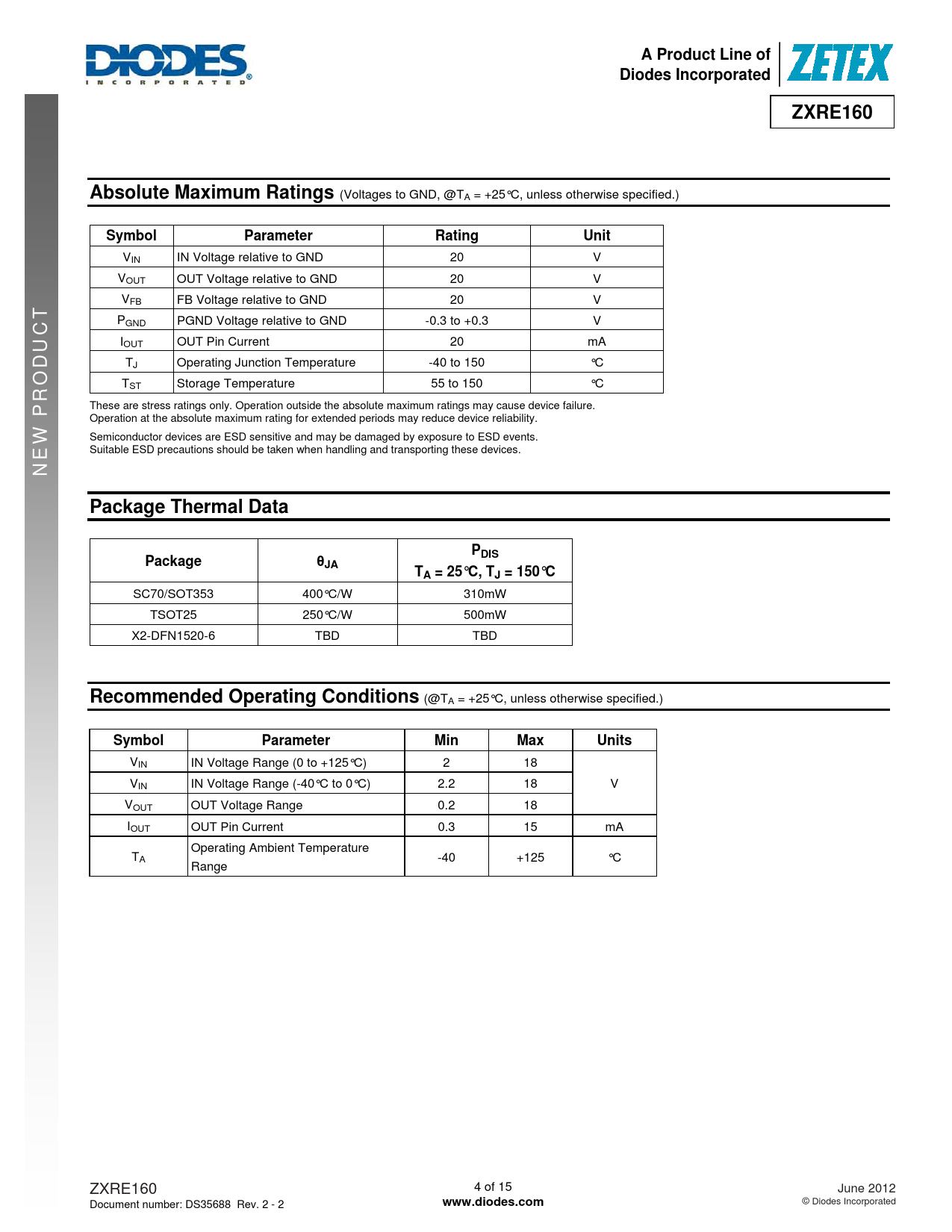

A Product Line of Diodes Incorporated ZXRE160 Absolute Maximum Ratings
(Voltages to GND, @TA = +25°C, unless otherwise specified.)
Symbol Parameter Rating Unit
VIN IN Voltage relative to GND 20 V VOUT OUT Voltage relative to GND 20 V
T
VFB FB Voltage relative to GND 20 V PGND PGND Voltage relative to GND -0.3 to +0.3 V
UC
IOUT OUT Pin Current 20 mA TJ Operating Junction Temperature -40 to 150 °C TST Storage Temperature 55 to 150 °C These are stress ratings only. Operation outside the absolute maximum ratings may cause device failure. Operation at the absolute maximum rating for extended periods may reduce device reliability. Semiconductor devices are ESD sensitive and may be damaged by exposure to ESD events. Suitable ESD precautions should be taken when handling and transporting these devices.
NEW PROD Package Thermal Data PDIS Package θJA TA = 25°C, TJ = 150°C
SC70/SOT353 400°C/W 310mW TSOT25 250°C/W 500mW X2-DFN1520-6 TBD TBD
Recommended Operating Conditions
(@TA = +25°C, unless otherwise specified.)
Symbol Parameter Min Max Units
VIN IN Voltage Range (0 to +125°C) 2 18 VIN IN Voltage Range (-40°C to 0°C) 2.2 18 V VOUT OUT Voltage Range 0.2 18 IOUT OUT Pin Current 0.3 15 mA Operating Ambient Temperature TA -40 +125 °C Range ZXRE160 4 of 15 June 2012 Document number: DS35688 Rev. 2 - 2
www.diodes.com
© Diodes Incorporated
