| 描述 | Sot23 Micropower (4μA) 1.22V Voltage Reference |
| 页数 / 页 | 5 / 2 — ZXRE1004. Schematic Diagram. Absolute Maximum Ratings. Parameter. Rating. … |
| 文件格式/大小 | PDF / 420 Kb |
| 文件语言 | 英语 |

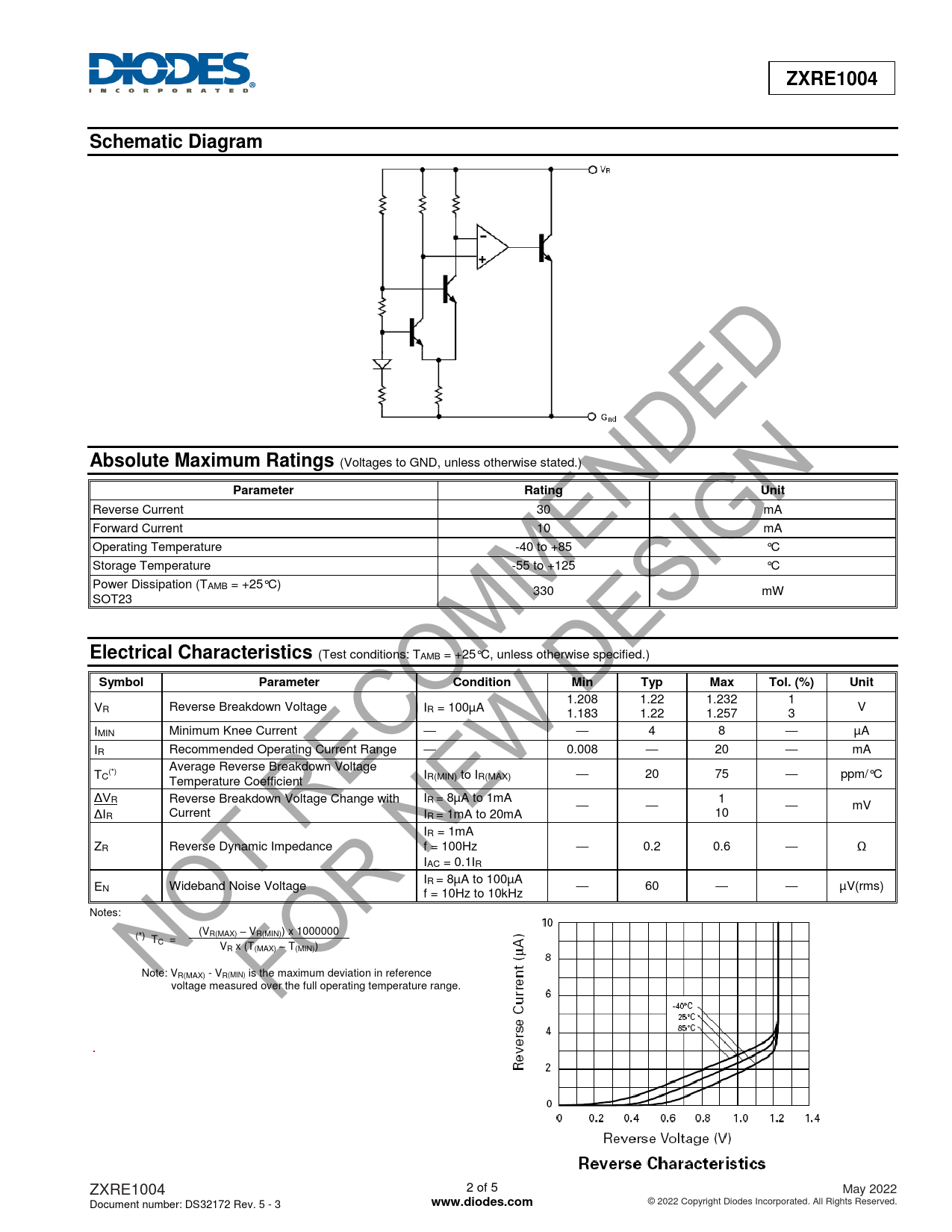

ZXRE1004. Schematic Diagram. Absolute Maximum Ratings. Parameter. Rating. Unit. Electrical Characteristics. Symbol. Condition. Min. Typ. Max
该数据表的模型线
文件文字版本
ZXRE1004 Schematic Diagram Absolute Maximum Ratings
(Voltages to GND, unless otherwise stated.)
Parameter Rating Unit
Reverse Current 30 mA Forward Current 10 mA Operating Temperature -40 to +85 °C Storage Temperature -55 to +125 °C Power Dissipation (TAMB = +25°C) 330 mW SOT23
Electrical Characteristics
(Test conditions: TAMB = +25°C, unless otherwise specified.)
Symbol Parameter Condition Min Typ Max Tol. (%) Unit
1.208 1.22 1.232 1 VR Reverse Breakdown Voltage IR = 100µA V 1.183 1.22 1.257 3 IMIN Minimum Knee Current — — 4 8 — µA IR Recommended Operating Current Range — 0.008 — 20 — mA Average Reverse Breakdown Voltage T (*) C I Temperature Coefficient R(MIN) to IR(MAX) — 20 75 — ppm/°C ΔVR Reverse Breakdown Voltage Change with IR = 8µA to 1mA — 1 — — mV ΔIR Current IR 10 = 1mA to 20mA IR = 1mA ZR Reverse Dynamic Impedance f = 100Hz — 0.2 0.6 — Ω IAC = 0.1IR I E R = 8µ A to 100µA N Wideband Noise Voltage — 60 — — µV(rms) f = 10Hz to 10kHz Notes: (*) (VR(MAX) – VR(MIN)) x 1000000 TC = VR x (T(MAX) – T(MIN)) Note: VR(MAX) - VR(MIN) is the maximum deviation in reference voltage measured over the full operating temperature range.
.
