Datasheet MAX6100, MAX6101, MAX6102, MAX6103, MAX6104, MAX6105, MAX6106, MAX6107 (Analog Devices) - 4
| 制造商 | Analog Devices |
| 描述 | Low-Cost, Micropower, Low-Dropout, High-Output-Current, SOT23 Voltage References |
| 页数 / 页 | 14 / 4 — Low-Cost, Micropower, Low-Dropout, High-Output-Current, SOT23 Voltage … |
| 文件格式/大小 | PDF / 335 Kb |
| 文件语言 | 英语 |
Low-Cost, Micropower, Low-Dropout, High-Output-Current, SOT23 Voltage References
该数据表的模型线
文件文字版本

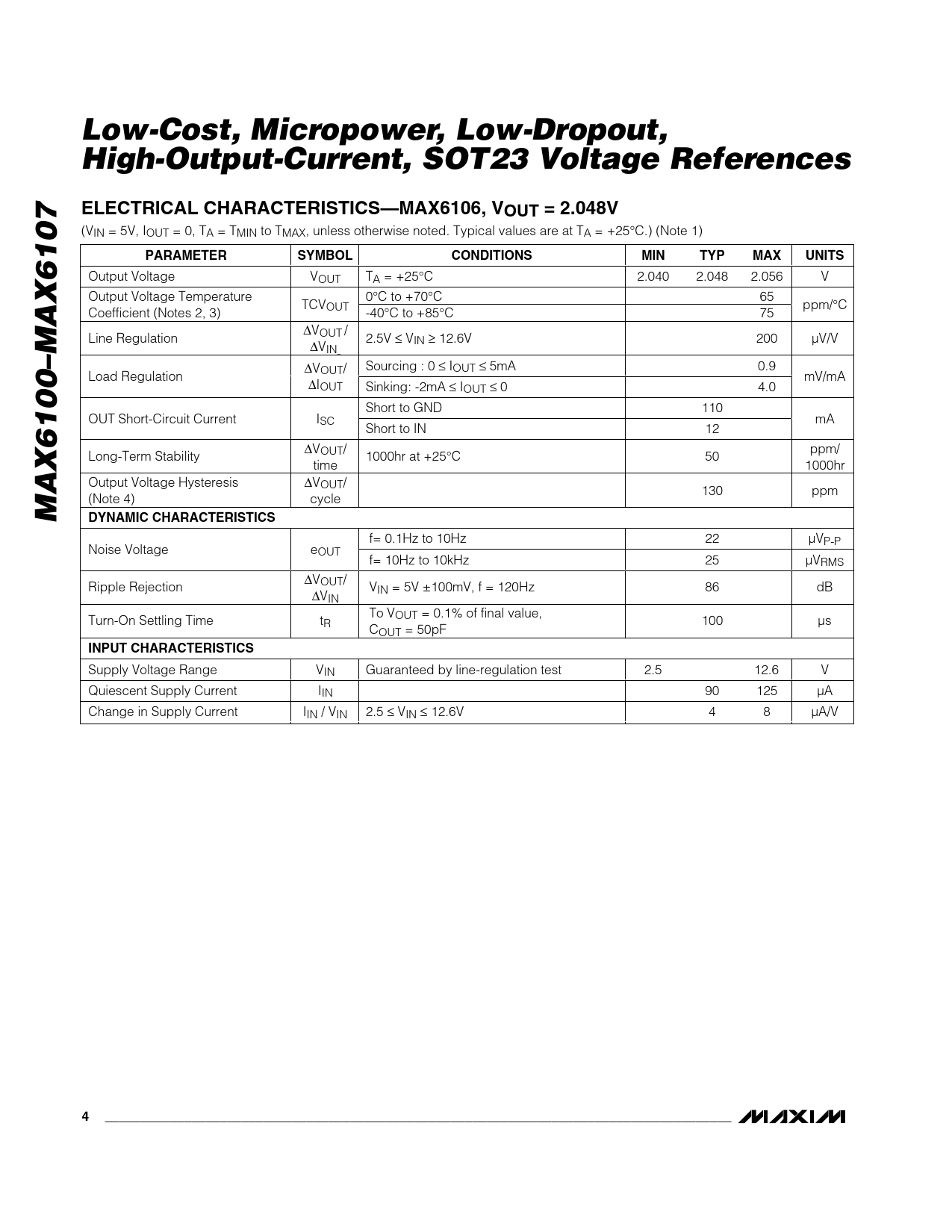

Low-Cost, Micropower, Low-Dropout, High-Output-Current, SOT23 Voltage References ELECTRICAL CHARACTERISTICS—MAX6106, VOUT = 2.048V
(VIN = 5V, IOUT = 0, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Output Voltage VOUT TA = +25°C 2.040 2.048 2.056 V Output Voltage Temperature 0°C to +70°C 65 TCV ppm/°C Coefficient (Notes 2, 3) OUT -40°C to +85°C 75 ∆V / Line Regulation OUT ∆ 2.5V ≤ VIN ≥ 12.6V 200 µV/V VIN_ Sourcing : 0 ∆VOUT/ ≤ IOUT ≤ 5mA 0.9 Load Regulation ∆ mV/mA IOUT Sinking: -2mA ≤ IOUT ≤ 0 4.0 Short to GND 110 OUT Short-Circuit Current ISC mA Short to IN 12 ∆V ppm/ Long-Term Stability OUT/ 1000hr at +25°C 50 time 1000hr Output Voltage Hysteresis ∆VOUT/ 130 ppm (Note 4) cycle
MAX6100–MAX6107 DYNAMIC CHARACTERISTICS
f= 0.1Hz to 10Hz 22 µVP-P Noise Voltage eOUT f= 10Hz to 10kHz 25 µVRMS ∆V Ripple Rejection OUT/ ∆ VIN = 5V ±100mV, f = 120Hz 86 dB VIN To V Turn-On Settling Time t OUT = 0.1% of final value, R 100 µs COUT = 50pF
INPUT CHARACTERISTICS
Supply Voltage Range VIN Guaranteed by line-regulation test 2.5 12.6 V Quiescent Supply Current IIN 90 125 µA Change in Supply Current IIN / VIN 2.5 ≤ VIN ≤ 12.6V 4 8 µA/V
4 _______________________________________________________________________________________
(VIN = 5V, IOUT = 0, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Output Voltage VOUT TA = +25°C 2.040 2.048 2.056 V Output Voltage Temperature 0°C to +70°C 65 TCV ppm/°C Coefficient (Notes 2, 3) OUT -40°C to +85°C 75 ∆V / Line Regulation OUT ∆ 2.5V ≤ VIN ≥ 12.6V 200 µV/V VIN_ Sourcing : 0 ∆VOUT/ ≤ IOUT ≤ 5mA 0.9 Load Regulation ∆ mV/mA IOUT Sinking: -2mA ≤ IOUT ≤ 0 4.0 Short to GND 110 OUT Short-Circuit Current ISC mA Short to IN 12 ∆V ppm/ Long-Term Stability OUT/ 1000hr at +25°C 50 time 1000hr Output Voltage Hysteresis ∆VOUT/ 130 ppm (Note 4) cycle
MAX6100–MAX6107 DYNAMIC CHARACTERISTICS
f= 0.1Hz to 10Hz 22 µVP-P Noise Voltage eOUT f= 10Hz to 10kHz 25 µVRMS ∆V Ripple Rejection OUT/ ∆ VIN = 5V ±100mV, f = 120Hz 86 dB VIN To V Turn-On Settling Time t OUT = 0.1% of final value, R 100 µs COUT = 50pF
INPUT CHARACTERISTICS
Supply Voltage Range VIN Guaranteed by line-regulation test 2.5 12.6 V Quiescent Supply Current IIN 90 125 µA Change in Supply Current IIN / VIN 2.5 ≤ VIN ≤ 12.6V 4 8 µA/V
4 _______________________________________________________________________________________
