Datasheet MAX6100, MAX6101, MAX6102, MAX6103, MAX6104, MAX6105, MAX6106, MAX6107 (Analog Devices) - 5
| 制造商 | Analog Devices |
| 描述 | Low-Cost, Micropower, Low-Dropout, High-Output-Current, SOT23 Voltage References |
| 页数 / 页 | 14 / 5 — Low-Cost, Micropower, Low-Dropout,. High-Output-Current, SOT23 Voltage … |
| 文件格式/大小 | PDF / 335 Kb |
| 文件语言 | 英语 |
Low-Cost, Micropower, Low-Dropout,. High-Output-Current, SOT23 Voltage References. MAX6100–MAX6107
该数据表的模型线
文件文字版本

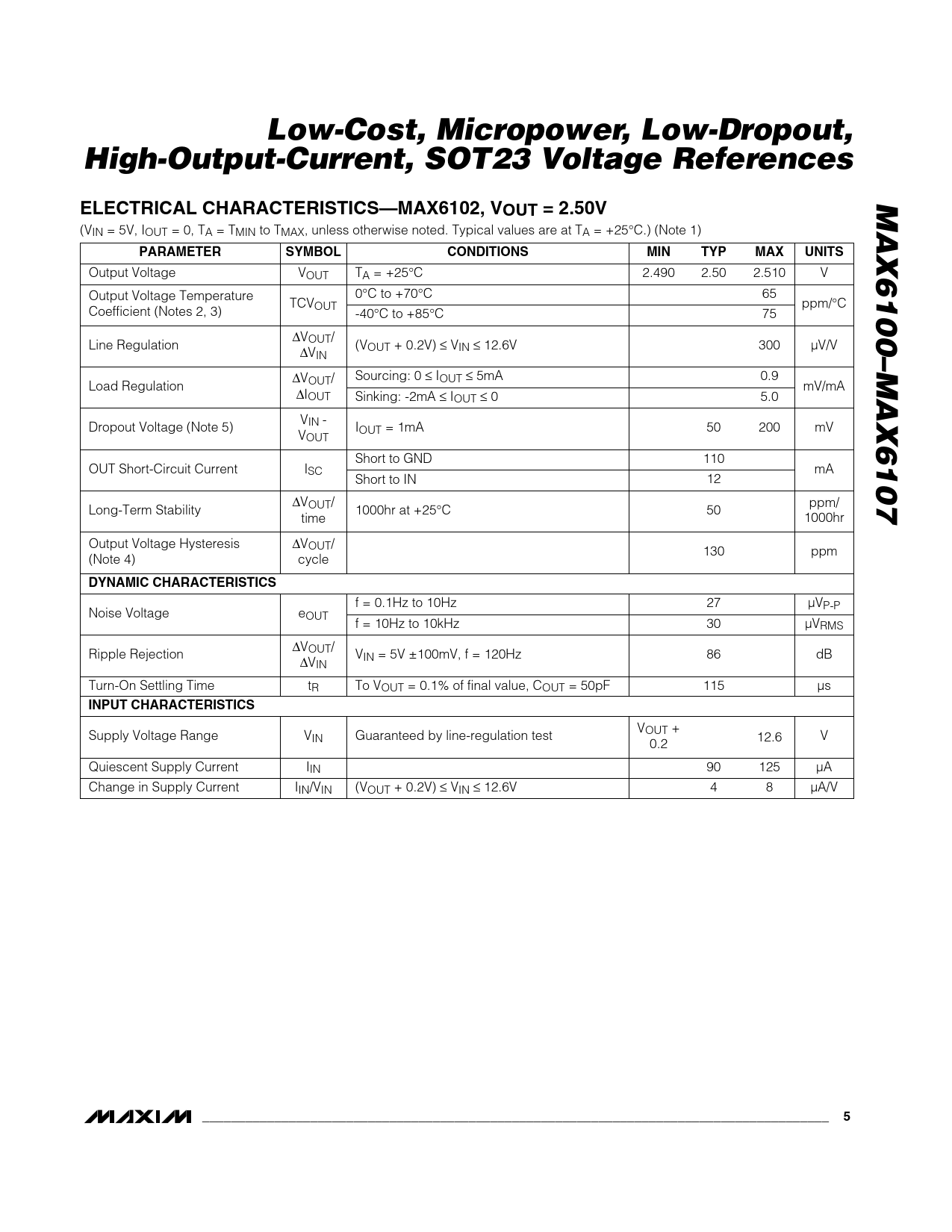

Low-Cost, Micropower, Low-Dropout, High-Output-Current, SOT23 Voltage References MAX6100–MAX6107 ELECTRICAL CHARACTERISTICS—MAX6102, VOUT = 2.50V
(VIN = 5V, IOUT = 0, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Output Voltage VOUT TA = +25°C 2.490 2.50 2.510 V 0°C to +70°C 65 Output Voltage Temperature TCVOUT ppm/°C Coefficient (Notes 2, 3) -40°C to +85°C 75 ∆VOUT/ Line Regulation (VOUT + 0.2V) ≤ VIN ≤ 12.6V 300 µV/V ∆VIN Sourcing: 0 ≤ IOUT ≤ 5mA 0.9 ∆VOUT/ Load Regulation mV/mA ∆IOUT Sinking: -2mA ≤ IOUT ≤ 0 5.0 VIN - Dropout Voltage (Note 5) IOUT = 1mA 50 200 mV VOUT Short to GND 110 OUT Short-Circuit Current ISC mA Short to IN 12 ∆VOUT/ ppm/ Long-Term Stability 1000hr at +25°C 50 time 1000hr Output Voltage Hysteresis ∆VOUT/ 130 ppm (Note 4) cycle
DYNAMIC CHARACTERISTICS
f = 0.1Hz to 10Hz 27 µVP-P Noise Voltage eOUT f = 10Hz to 10kHz 30 µVRMS ∆VOUT/ Ripple Rejection VIN = 5V ±100mV, f = 120Hz 86 dB ∆VIN Turn-On Settling Time tR To VOUT = 0.1% of final value, COUT = 50pF 115 µs
INPUT CHARACTERISTICS
V Supply Voltage Range VIN Guaranteed by line-regulation test OUT + 12.6 V 0.2 Quiescent Supply Current IIN 90 125 µA Change in Supply Current IIN/VIN (VOUT + 0.2V) ≤ VIN ≤ 12.6V 4 8 µA/V
_______________________________________________________________________________________ 5
(VIN = 5V, IOUT = 0, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Output Voltage VOUT TA = +25°C 2.490 2.50 2.510 V 0°C to +70°C 65 Output Voltage Temperature TCVOUT ppm/°C Coefficient (Notes 2, 3) -40°C to +85°C 75 ∆VOUT/ Line Regulation (VOUT + 0.2V) ≤ VIN ≤ 12.6V 300 µV/V ∆VIN Sourcing: 0 ≤ IOUT ≤ 5mA 0.9 ∆VOUT/ Load Regulation mV/mA ∆IOUT Sinking: -2mA ≤ IOUT ≤ 0 5.0 VIN - Dropout Voltage (Note 5) IOUT = 1mA 50 200 mV VOUT Short to GND 110 OUT Short-Circuit Current ISC mA Short to IN 12 ∆VOUT/ ppm/ Long-Term Stability 1000hr at +25°C 50 time 1000hr Output Voltage Hysteresis ∆VOUT/ 130 ppm (Note 4) cycle
DYNAMIC CHARACTERISTICS
f = 0.1Hz to 10Hz 27 µVP-P Noise Voltage eOUT f = 10Hz to 10kHz 30 µVRMS ∆VOUT/ Ripple Rejection VIN = 5V ±100mV, f = 120Hz 86 dB ∆VIN Turn-On Settling Time tR To VOUT = 0.1% of final value, COUT = 50pF 115 µs
INPUT CHARACTERISTICS
V Supply Voltage Range VIN Guaranteed by line-regulation test OUT + 12.6 V 0.2 Quiescent Supply Current IIN 90 125 µA Change in Supply Current IIN/VIN (VOUT + 0.2V) ≤ VIN ≤ 12.6V 4 8 µA/V
_______________________________________________________________________________________ 5
