Datasheet STGAP3S6I (STMicroelectronics)
| 制造商 | STMicroelectronics |
| 描述 | Galvanically Isolated 6/10 A Single Gate Drivers With Protection Features |
| 页数 / 页 | 32 / 1 — STGAP3S6I, STGAP3S6S. STGAP3SXI, STGAP3SXS. Features. Product status … |
| 文件格式/大小 | PDF / 1.3 Mb |
| 文件语言 | 英语 |
STGAP3S6I, STGAP3S6S. STGAP3SXI, STGAP3SXS. Features. Product status link. Applications. Product label. Description. DS14758. Rev 1
该数据表的模型线
文件文字版本

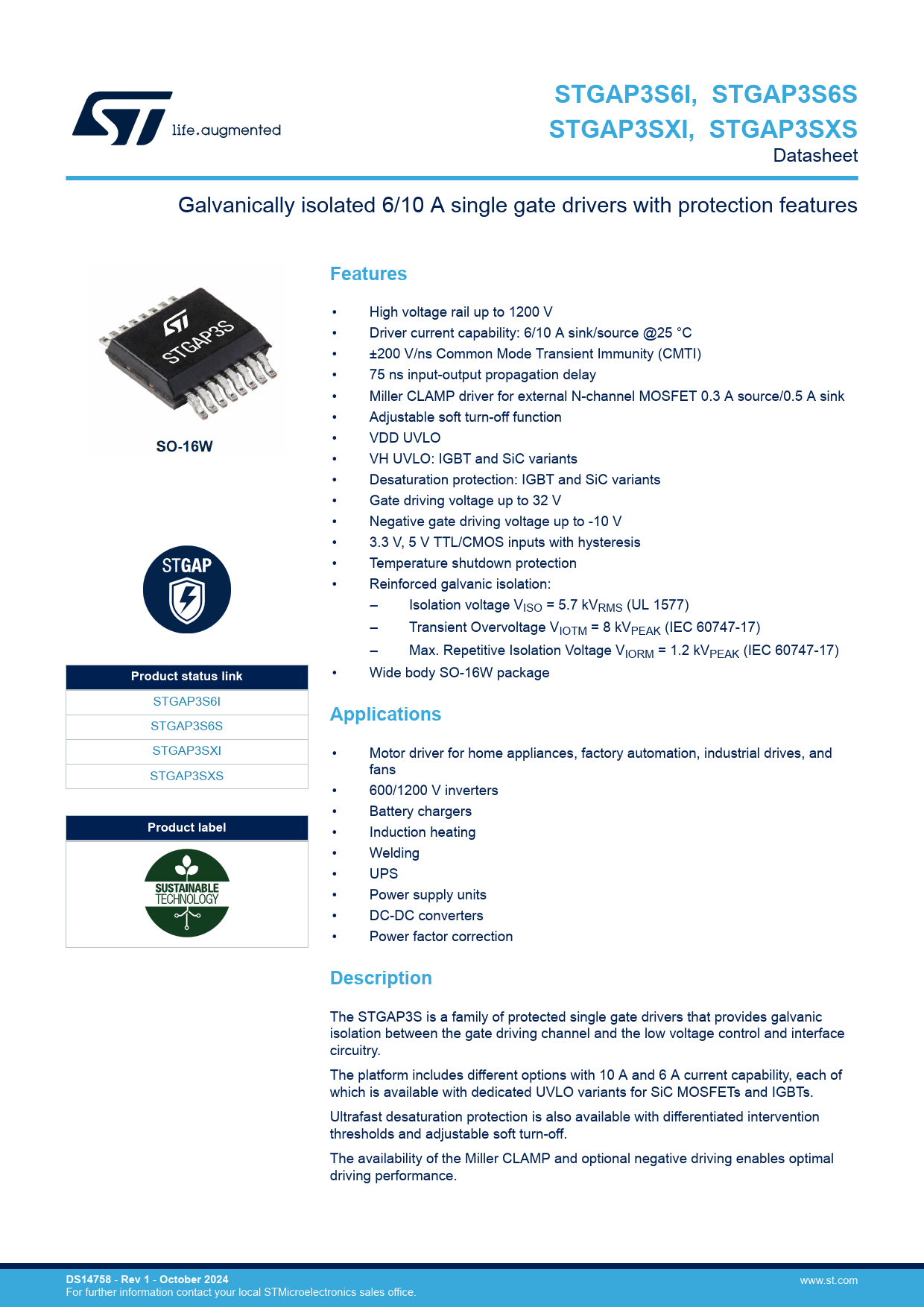

STGAP3S6I, STGAP3S6S STGAP3SXI, STGAP3SXS
Datasheet Galvanically isolated 6/10 A single gate drivers with protection features
Features
• High voltage rail up to 1200 V • Driver current capability: 6/10 A sink/source @25 °C • ±200 V/ns Common Mode Transient Immunity (CMTI) • 75 ns input-output propagation delay • Miller CLAMP driver for external N-channel MOSFET 0.3 A source/0.5 A sink • Adjustable soft turn-off function • VDD UVLO • VH UVLO: IGBT and SiC variants • Desaturation protection: IGBT and SiC variants • Gate driving voltage up to 32 V • Negative gate driving voltage up to -10 V • 3.3 V, 5 V TTL/CMOS inputs with hysteresis • Temperature shutdown protection • Reinforced galvanic isolation: – Isolation voltage VISO = 5.7 kVRMS (UL 1577) – Transient Overvoltage VIOTM = 8 kVPEAK (IEC 60747-17) – Max. Repetitive Isolation Voltage VIORM = 1.2 kVPEAK (IEC 60747-17)
Product status link
• Wide body SO-16W package STGAP3S6I
Applications
STGAP3S6S STGAP3SXI • Motor driver for home appliances, factory automation, industrial drives, and fans STGAP3SXS • 600/1200 V inverters • Battery chargers
Product label
• Induction heating • Welding • UPS • Power supply units • DC-DC converters • Power factor correction
Description
The STGAP3S is a family of protected single gate drivers that provides galvanic isolation between the gate driving channel and the low voltage control and interface circuitry. The platform includes different options with 10 A and 6 A current capability, each of which is available with dedicated UVLO variants for SiC MOSFETs and IGBTs. Ultrafast desaturation protection is also available with differentiated intervention thresholds and adjustable soft turn-off. The availability of the Miller CLAMP and optional negative driving enables optimal driving performance.
DS14758
-
Rev 1
-
October 2024
www.st.com For further information contact your local STMicroelectronics sales office. Document Outline STGAP3S6I, STGAP3S6S, STGAP3SXI, STGAP3SXS @NA Cover image @NA Device summary Features Applications Description 1 Block diagram 2 Pin description and connection diagram 3 Device ratings 3.1 Absolute maximum ratings 3.2 Thermal data 3.3 Recommended operating conditions 4 Electrical characteristics 5 Isolation 6 Functional description 6.1 Power supplies and UVLO 6.2 Power-up, power-down, and “safe state” 6.3 Control inputs 6.3.1 Anti cross conduction interlocking 6.4 Miller clamp function 6.4.1 Miller clamp driver 6.5 Desaturation protection 6.5.1 Adjustable soft turn-off function 6.6 Watchdog 6.7 Thermal shutdown protection 7 Typical application diagram 8 PCB layout 8.1 Layout guidelines and considerations 8.2 Layout example 9 Unused functions 10 Testing and characterization information 11 Package information 11.1 SO-16W package information 11.2 SO-16W suggested land pattern 12 Ordering information Revision history Contents List of tables List of figures
