STGAP3S6I, STGAP3S6S, STGAP3SXI, STGAP3SXS. Isolation. Table 6. Isolation and safety specifications. Symbol. Parameter
该数据表的模型线
文件文字版本

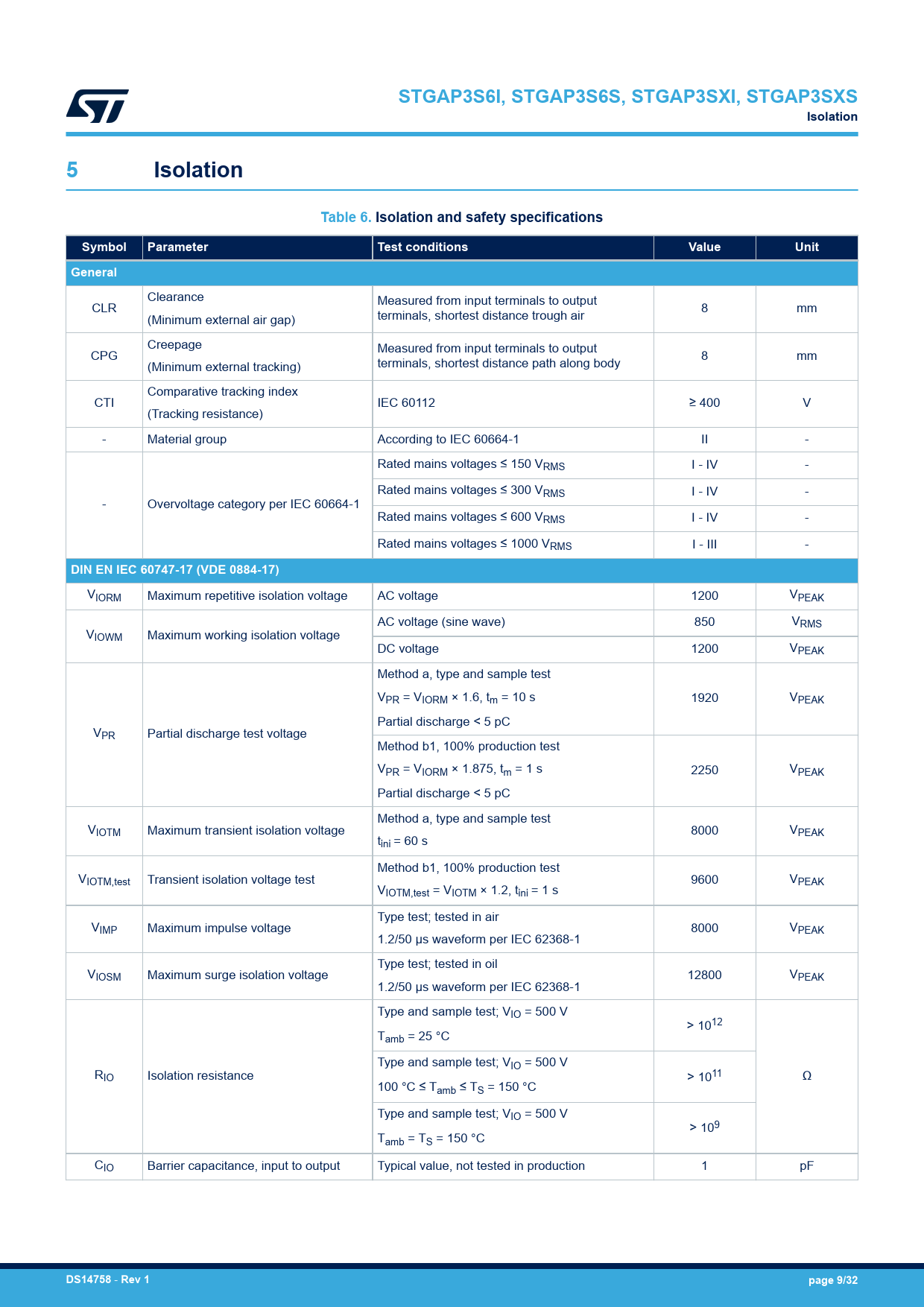

STGAP3S6I, STGAP3S6S, STGAP3SXI, STGAP3SXS Isolation 5 Isolation Table 6. Isolation and safety specifications Symbol Parameter Test conditions Value Unit General
Clearance Measured from input terminals to output CLR 8 mm (Minimum external air gap) terminals, shortest distance trough air Creepage Measured from input terminals to output CPG 8 mm (Minimum external tracking) terminals, shortest distance path along body Comparative tracking index CTI IEC 60112 ≥ 400 V (Tracking resistance) - Material group According to IEC 60664-1 II - Rated mains voltages ≤ 150 VRMS I - IV - Rated mains voltages ≤ 300 VRMS I - IV - - Overvoltage category per IEC 60664-1 Rated mains voltages ≤ 600 VRMS I - IV - Rated mains voltages ≤ 1000 VRMS I - III -
DIN EN IEC 60747-17 (VDE 0884-17)
VIORM Maximum repetitive isolation voltage AC voltage 1200 VPEAK AC voltage (sine wave) 850 VRMS VIOWM Maximum working isolation voltage DC voltage 1200 VPEAK Method a, type and sample test VPR = VIORM × 1.6, tm = 10 s 1920 VPEAK Partial discharge < 5 pC VPR Partial discharge test voltage Method b1, 100% production test VPR = VIORM × 1.875, tm = 1 s 2250 VPEAK Partial discharge < 5 pC Method a, type and sample test VIOTM Maximum transient isolation voltage 8000 VPEAK tini = 60 s Method b1, 100% production test VIOTM,test Transient isolation voltage test 9600 VPEAK VIOTM,test = VIOTM × 1.2, tini = 1 s Type test; tested in air VIMP Maximum impulse voltage 8000 VPEAK 1.2/50 µs waveform per IEC 62368-1 Type test; tested in oil VIOSM Maximum surge isolation voltage 12800 VPEAK 1.2/50 µs waveform per IEC 62368-1 Type and sample test; VIO = 500 V > 1012 Tamb = 25 °C Type and sample test; VIO = 500 V RIO Isolation resistance > 1011 Ω 100 °C ≤ Tamb ≤ TS = 150 °C Type and sample test; VIO = 500 V > 109 Tamb = TS = 150 °C CIO Barrier capacitance, input to output Typical value, not tested in production 1 pF
DS14758
-
Rev 1 page 9/32
