Datasheet MAX6070 (Analog Devices)
| 制造商 | Analog Devices |
| 描述 | Low-Noise, High-Precision Series Voltage References |
| 页数 / 页 | 26 / 1 — Low-Noise, High-Precision Series. MAX6070/MAX6071. Voltage References. … |
| 文件格式/大小 | PDF / 6.6 Mb |
| 文件语言 | 英语 |
Low-Noise, High-Precision Series. MAX6070/MAX6071. Voltage References. General Description. Benefits and Features. Applications
该数据表的模型线
- MAX6070AAUT12+ MAX6070AAUT12+T MAX6070AAUT18+ MAX6070AAUT18+T MAX6070AAUT18/V+ MAX6070AAUT18/V+T MAX6070AAUT21+ MAX6070AAUT21+T MAX6070AAUT25+ MAX6070AAUT25+T MAX6070AAUT30+ MAX6070AAUT30+T MAX6070AAUT33+ MAX6070AAUT33+T MAX6070AAUT33/V+ MAX6070AAUT33/V+T MAX6070AAUT41+ MAX6070AAUT41+T MAX6070AAUT50+ MAX6070AAUT50+T MAX6070AAUT50/V+ MAX6070AAUT50/V+T MAX6070BAUT12+ MAX6070BAUT12+T MAX6070BAUT12/V+ MAX6070BAUT12/V+T MAX6070BAUT18+ MAX6070BAUT18+T MAX6070BAUT21+ MAX6070BAUT21+T MAX6070BAUT21/V+ MAX6070BAUT21/V+T MAX6070BAUT25+ MAX6070BAUT25+T MAX6070BAUT25/V+ MAX6070BAUT25/V+T MAX6070BAUT30+ MAX6070BAUT30+T MAX6070BAUT33+ MAX6070BAUT33+T MAX6070BAUT33/V+ MAX6070BAUT33/V+T MAX6070BAUT41+ MAX6070BAUT41+T MAX6070BAUT41/V+ MAX6070BAUT41/V+T MAX6070BAUT50+ MAX6070BAUT50+T MAX6070DAUT12/V+ MAX6070DAUT12/V+T MAX6070DAUT25/V+ MAX6070DAUT25/V+T MAX6070DAUT30/V+ MAX6070DAUT30/V+T MAX6070DAUT41/V+ MAX6070DAUT41/V+T
- MAX6071AAUT12+ MAX6071AAUT12+T MAX6071AAUT18+ MAX6071AAUT18+T MAX6071AAUT21+ MAX6071AAUT21+T MAX6071AAUT25+ MAX6071AAUT25+T MAX6071AAUT30+ MAX6071AAUT30+T MAX6071AAUT30/V+ MAX6071AAUT30/V+T MAX6071AAUT33+ MAX6071AAUT33+T MAX6071AAUT41+ MAX6071AAUT41+T MAX6071AAUT50+ MAX6071AAUT50+T MAX6071ANT25+ MAX6071ANT25+T MAX6071BAUT12+ MAX6071BAUT12+T MAX6071BAUT18+ MAX6071BAUT18+T MAX6071BAUT21+ MAX6071BAUT21+T MAX6071BAUT25+ MAX6071BAUT25+T MAX6071BAUT25/V+ MAX6071BAUT25/V+T MAX6071BAUT30+ MAX6071BAUT30+T MAX6071BAUT33+ MAX6071BAUT33+T MAX6071BAUT41+ MAX6071BAUT41+T MAX6071BAUT50+ MAX6071BAUT50+T
文件文字版本
link to page 25 link to page 25 link to page 24 Click here to ask an associate for production status of specific part numbers.

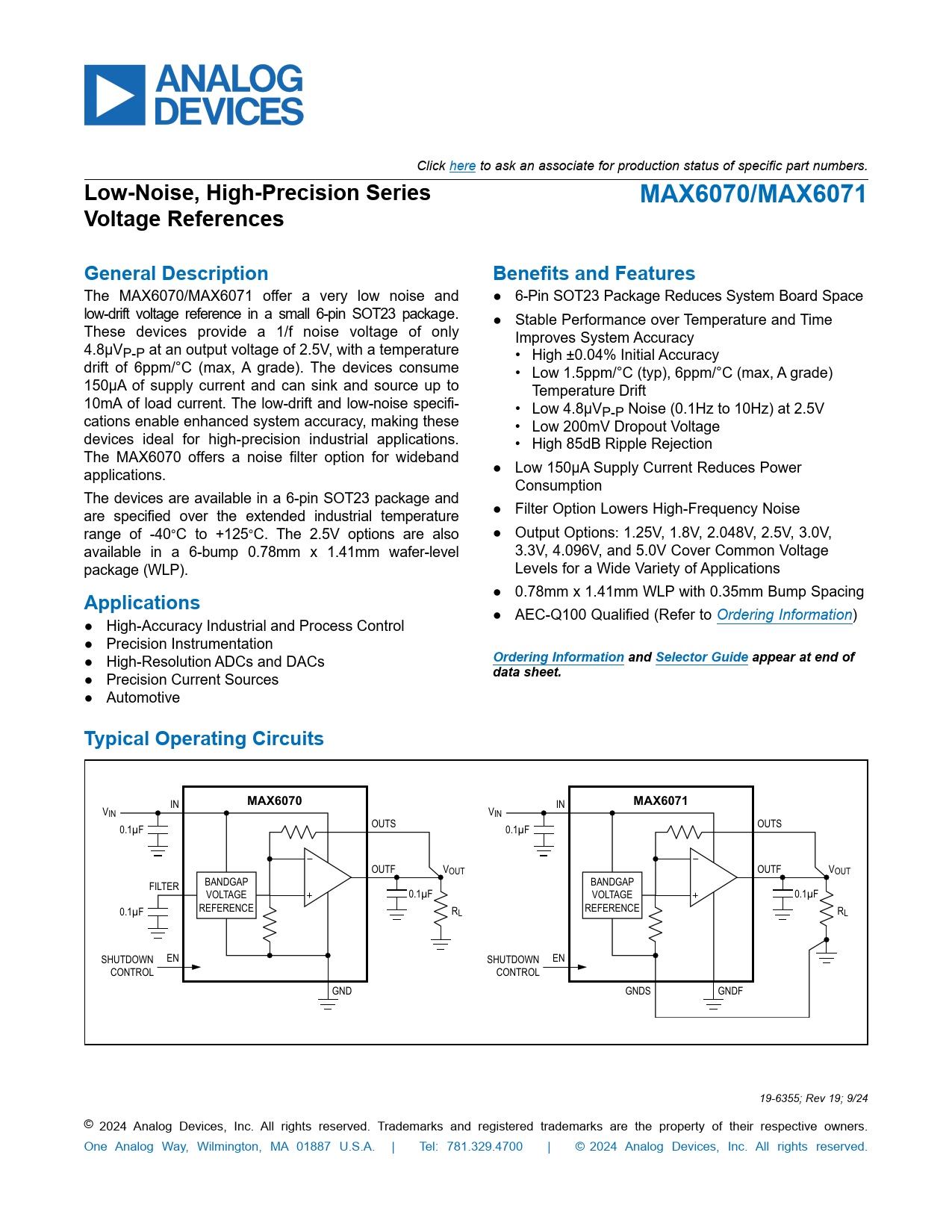

Low-Noise, High-Precision Series MAX6070/MAX6071 Voltage References General Description Benefits and Features
The MAX6070/MAX6071 offer a very low noise and ● 6-Pin SOT23 Package Reduces System Board Space low-drift voltage reference in a small 6-pin SOT23 package. ● Stable Performance over Temperature and Time These devices provide a 1/f noise voltage of only Improves System Accuracy 4.8µVP-P at an output voltage of 2.5V, with a temperature • High ±0.04% Initial Accuracy drift of 6ppm/°C (max, A grade). The devices consume • Low 1.5ppm/°C (typ), 6ppm/°C (max, A grade) 150μA of supply current and can sink and source up to Temperature Drift 10mA of load current. The low-drift and low-noise specifi- • Low 4.8μV cations enable enhanced system accuracy, making these P-P Noise (0.1Hz to 10Hz) at 2.5V • Low 200mV Dropout Voltage devices ideal for high-precision industrial applications. • High 85dB Ripple Rejection The MAX6070 offers a noise filter option for wideband applications. ● Low 150μA Supply Current Reduces Power Consumption The devices are available in a 6-pin SOT23 package and are specified over the extended industrial temperature ● Filter Option Lowers High-Frequency Noise range of -40°C to +125°C. The 2.5V options are also ● Output Options: 1.25V, 1.8V, 2.048V, 2.5V, 3.0V, available in a 6-bump 0.78mm x 1.41mm wafer-level 3.3V, 4.096V, and 5.0V Cover Common Voltage package (WLP). Levels for a Wide Variety of Applications
Applications
● 0.78mm x 1.41mm WLP with 0.35mm Bump Spacing ● AEC-Q100 Qualified (Refer to Ordering Information) ● High-Accuracy Industrial and Process Control ● Precision Instrumentation ● High-Resolution ADCs and DACs
Ordering Information and Selector Guide appear at end of
● Precision Current Sources
data sheet.
● Automotive
Typical Operating Circuits
IN
MAX6070
IN
MAX6071
VIN VIN 0.1µF OUTS 0.1µF OUTS OUTF VOUT OUTF VOUT BANDGAP FILTER BANDGAP VOLTAGE 0.1µF VOLTAGE 0.1µF REFERENCE 0.1µF RL REFERENCE RL SHUTDOWN EN SHUTDOWN EN CONTROL CONTROL GND GNDS GNDF 19-6355; Rev 19; 9/24 © 2024 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. One Analog Way, Wilmington, MA 01887 U.S.A. | Tel: 781.329.4700 | © 2024 Analog Devices, Inc. All rights reserved.
