Datasheet MAX6066 (Analog Devices) - 2
| 制造商 | Analog Devices |
| 描述 | Precision, Micropower, Low-Dropout, High-Output-Current, SOT23 Voltage References |
| 页数 / 页 | 16 / 2 — Precision, Micropower, Low-Dropout, High-Output-Current, SOT23 Voltage … |
| 文件格式/大小 | PDF / 559 Kb |
| 文件语言 | 英语 |

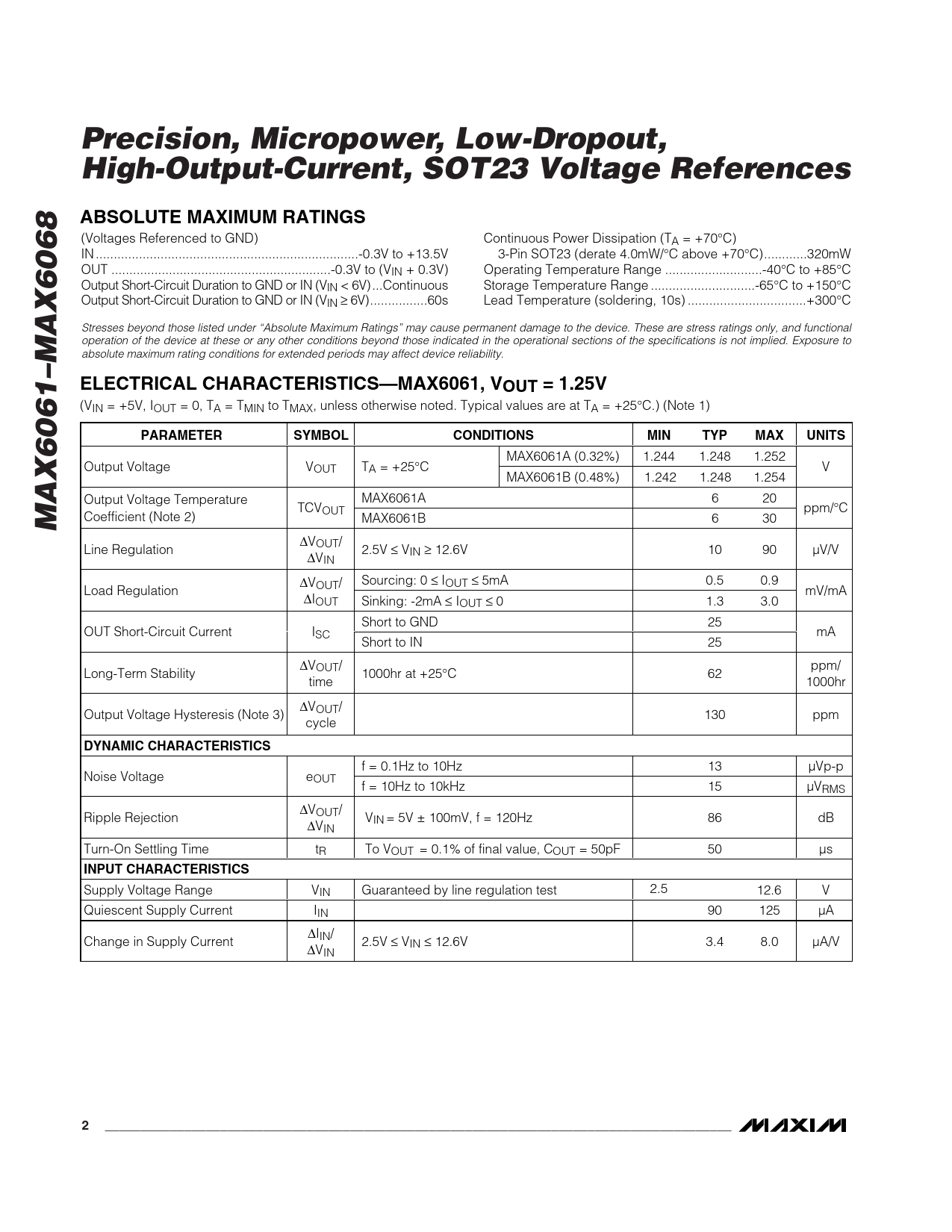

Precision, Micropower, Low-Dropout, High-Output-Current, SOT23 Voltage References. ABSOLUTE MAXIMUM RATINGS
该数据表的模型线
文件文字版本
Precision, Micropower, Low-Dropout, High-Output-Current, SOT23 Voltage References ABSOLUTE MAXIMUM RATINGS
(Voltages Referenced to GND) Continuous Power Dissipation (TA = +70°C) IN ...-0.3V to +13.5V 3-Pin SOT23 (derate 4.0mW/°C above +70°C)..320mW OUT ...-0.3V to (VIN + 0.3V) Operating Temperature Range ...-40°C to +85°C Output Short-Circuit Duration to GND or IN (VIN < 6V)...Continuous Storage Temperature Range ...-65°C to +150°C Output Short-Circuit Duration to GND or IN (VIN ≥ 6V)..60s Lead Temperature (soldering, 10s) ...+300°C Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
ELECTRICAL CHARACTERISTICS—MAX6061, VOUT = 1.25V
(VIN = +5V, IOUT = 0, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
MAX6061A (0.32%) 1.244 1.248 1.252 Output Voltage VOUT TA = +25°C V MAX6061B (0.48%) 1.242 1.248 1.254 Output Voltage Temperature MAX6061A 6 20 TCV ppm/°C
MAX6061–MAX6068
OUT Coefficient (Note 2) MAX6061B 6 30 ∆V Line Regulation OUT/ ∆ 2.5V ≤ VIN ≥ 12.6V 10 90 µV/V VIN Sourcing: 0 ∆VOUT/ ≤ IOUT ≤ 5mA 0.5 0.9 Load Regulation ∆ mV/mA IOUT Sinking: -2mA ≤ IOUT ≤ 0 1.3 3.0 Short to GND 25 OUT Short-Circuit Current ISC mA Short to IN 25 ∆V ppm/ Long-Term Stability OUT/ 1000hr at +25°C 62 time 1000hr ∆V Output Voltage Hysteresis (Note 3) OUT/ 130 ppm cycle
DYNAMIC CHARACTERISTICS
f = 0.1Hz to 10Hz 13 µVp-p Noise Voltage eOUT f = 10Hz to 10kHz 15 µVRMS ∆V Ripple Rejection OUT/ ∆ VIN = 5V ± 100mV, f = 120Hz 86 dB V IN Turn-On Settling Time tR To VOUT = 0.1% of final value, C OUT = 50pF 50 µs
INPUT CHARACTERISTICS
Supply Voltage Range VIN Guaranteed by line regulation test 2.5 12.6 V Quiescent Supply Current IIN 90 125 µA ∆I Change in Supply Current IN/ ∆ 2.5V ≤ VIN ≤ 12.6V 3.4 8.0 µA/V VIN
