Typical Operating Characteristics (continued). MAX6125. LOAD-TRANSIENT RESPONSE (SINKING). LOAD-TRANSIENT RESPONSE (SOURCING)
该数据表的模型线
文件文字版本

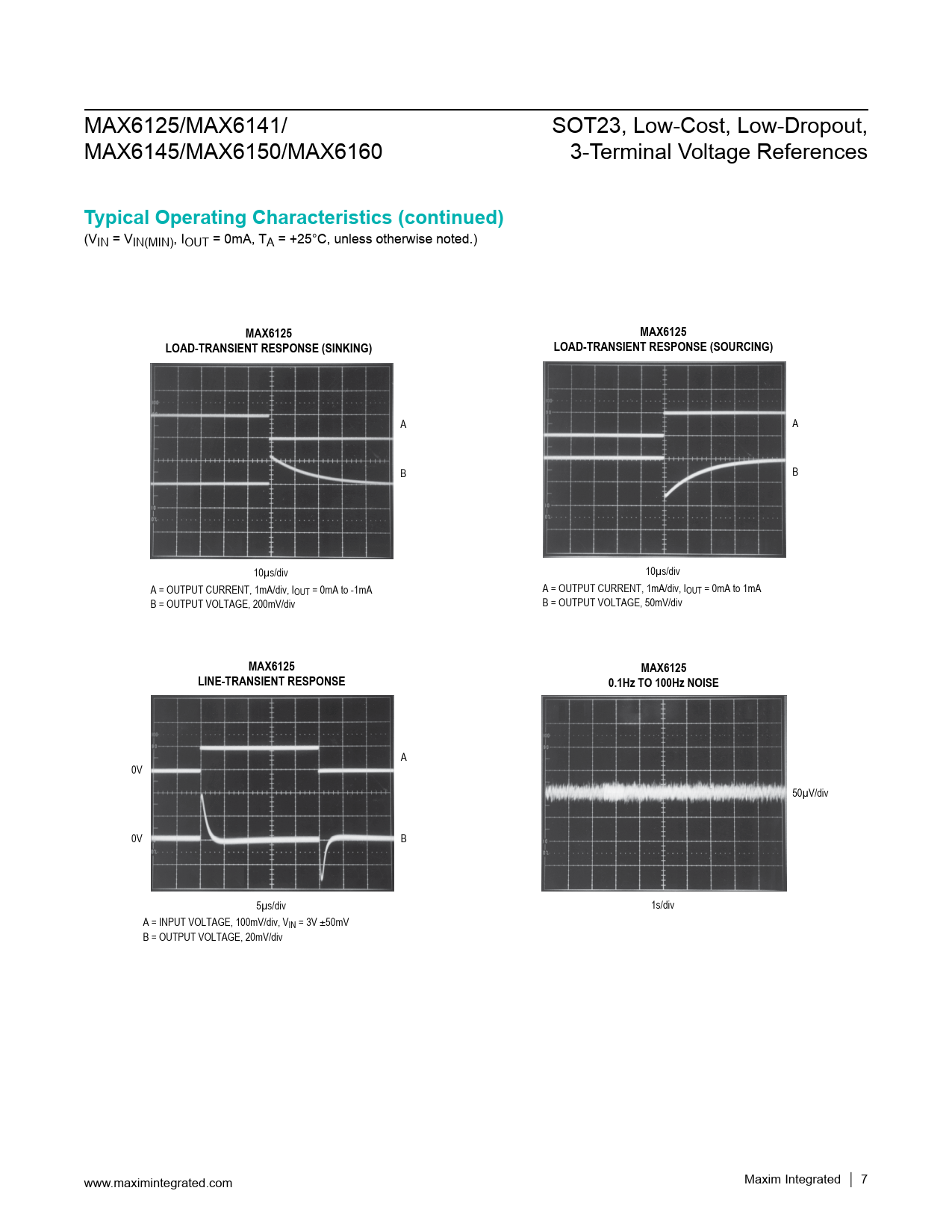

MAX6125/MAX6141/ SOT23, Low-Cost, Low-Dropout, MAX6145/MAX6150/MAX6160 3-Terminal Voltage References
Typical Operating Characteristics (continued)
(VIN = VIN(MIN), IOUT = 0mA, TA = +25°C, unless otherwise noted.)
MAX6125 MAX6125 LOAD-TRANSIENT RESPONSE (SINKING) LOAD-TRANSIENT RESPONSE (SOURCING)
A A B B 10µs/div 10µs/div A = OUTPUT CURRENT, 1mA/div, IOUT = 0mA to -1mA A = OUTPUT CURRENT, 1mA/div, IOUT = 0mA to 1mA B = OUTPUT VOLTAGE, 200mV/div B = OUTPUT VOLTAGE, 50mV/div
MAX6125 MAX6125 LINE-TRANSIENT RESPONSE 0.1Hz TO 100Hz NOISE
A 0V 50µV/div 0V B 5µs/div 1s/div A = INPUT VOLTAGE, 100mV/div, VIN = 3V ±50mV B = OUTPUT VOLTAGE, 20mV/div www.maximintegrated.com Maxim Integrated │ 7
