Datasheet ZTB (ECS Inc.)
| 制造商 | ECS Inc. |
| 描述 | Сeramic resonator with low frequency 455 KHz and exended temp range -20°C ~ 80°C |
| 页数 / 页 | 2 / 1 — Not suggested for new design. No alternates suggested. ZTB455E. 455 KHz. … |
| 文件格式/大小 | PDF / 382 Kb |
| 文件语言 | 英语 |

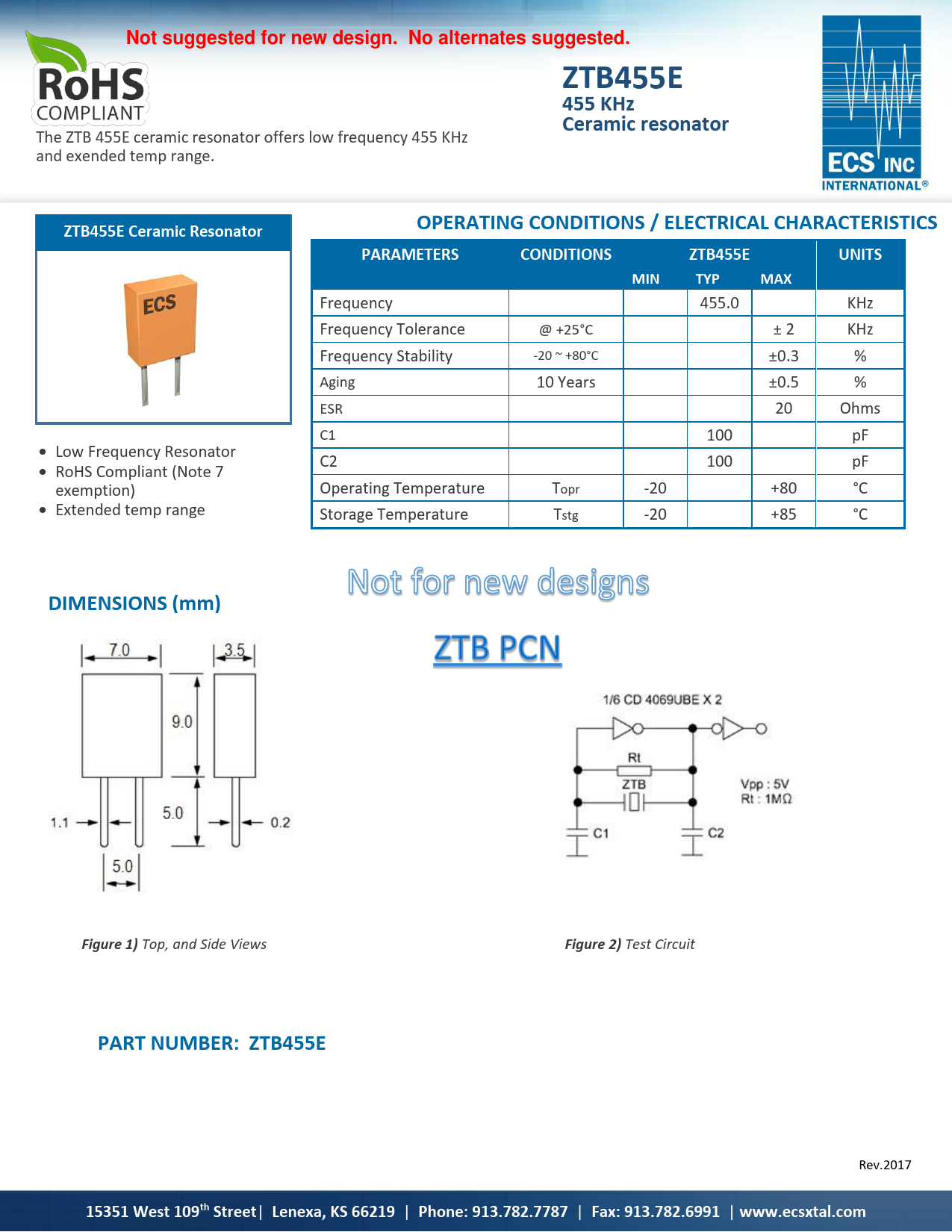

Not suggested for new design. No alternates suggested. ZTB455E. 455 KHz. Ceramic resonator
该数据表的模型线
文件文字版本
Not suggested for new design. No alternates suggested. ZTB455E 455 KHz Ceramic resonator
The ZTB 455E ceramic resonator offers low frequency 455 KHz and exended temp range.
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS ZTB45 5E Ceramic Resonator PARAMETERS CONDITIONS ZTB455E UNITS MIN TYP MAX
Frequency 455.0 KHz Frequency Tolerance @ +25°C ± 2 KHz Frequency Stability -20 ~ +80°C ±0.3 % Aging 10 Years ±0.5 % ESR 20 Ohms C1 100 pF • Low Frequency Resonator C2 100 pF • RoHS Compliant (Note 7 exemption) Operating Temperature Topr -20 +80 °C • Extended temp range Storage Temperature Tstg -20 +85 °C
DIMENSIONS (mm) Figure 1)
Top, and Side Views
Figure 2)
Test Circuit
PART NUMBER: ZTB455E
Rev.2017
15351 West 109th Street
|
Lenexa, KS 66219
|
Phone: 913.782.7787
|
Fax: 913.782.6991
|
www.ecsxtal.com
