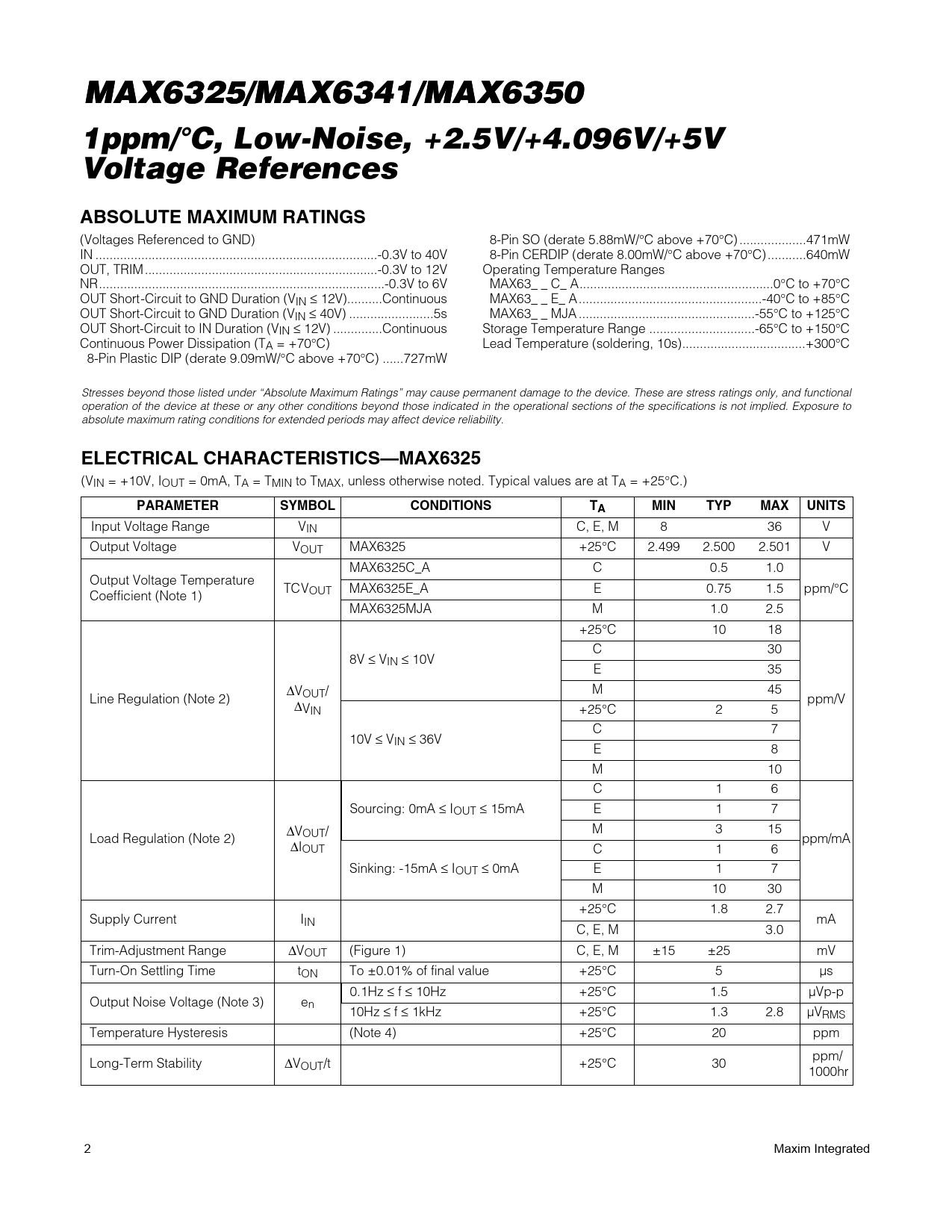

MAX6325/MAX6341/MAX6350 MAX6325/MAX6341/MAX6350
1ppm/°C, Low-Noise, +2.5V/+4.096V/+5V Voltage References ABSOLUTE MAXIMUM RATINGS
(Voltages Referenced to GND) 8-Pin SO (derate 5.88mW/°C above +70°C) ...471mW IN ..-0.3V to 40V 8-Pin CERDIP (derate 8.00mW/°C above +70°C) ...640mW OUT, TRIM ..-0.3V to 12V Operating Temperature Ranges NR...-0.3V to 6V MAX63_ _ C_ A...0°C to +70°C OUT Short-Circuit to GND Duration (VIN ≤ 12V)..Continuous MAX63_ _ E_ A ..-40°C to +85°C OUT Short-Circuit to GND Duration (VIN ≤ 40V) ..5s MAX63_ _ MJA ..-55°C to +125°C OUT Short-Circuit to IN Duration (VIN ≤ 12V) ..Continuous Storage Temperature Range ..-65°C to +150°C Continuous Power Dissipation (TA = +70°C) Lead Temperature (soldering, 10s)...+300°C 8-Pin Plastic DIP (derate 9.09mW/°C above +70°C) ..727mW Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
ELECTRICAL CHARACTERISTICS—MAX6325
(VIN = +10V, IOUT = 0mA, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.)
PARAMETER SYMBOL CONDITIONS TA MIN TYP MAX UNITS
Input Voltage Range VIN C, E, M 8 36 V Output Voltage VOUT MAX6325 +25°C 2.499 2.500 2.501 V MAX6325C_A C 0.5 1.0 Output Voltage Temperature TCVOUT MAX6325E_A E 0.75 1.5 ppm/°C Coefficient (Note 1) MAX6325MJA M 1.0 2.5 +25°C 10 18 C 30 8V ≤ VIN ≤ 10V E 35 M 45 ∆VOUT/ Line Regulation (Note 2) ppm/V ∆VIN +25°C 2 5 C 7 10V ≤ VIN ≤ 36V E 8 M 10 C 1 6 Sourcing: 0mA ≤ IOUT ≤ 15mA E 1 7 ∆V M 3 15 Load Regulation (Note 2) OUT/ ∆ ppm/mA IOUT C 1 6 Sinking: -15mA ≤ IOUT ≤ 0mA E 1 7 M 10 30 +25°C 1.8 2.7 Supply Current IIN mA C, E, M 3.0 Trim-Adjustment Range ∆VOUT (Figure 1) C, E, M ±15 ±25 mV Turn-On Settling Time tON To ±0.01% of final value +25°C 5 µs 0.1Hz ≤ f ≤ 10Hz +25°C 1.5 µVp-p Output Noise Voltage (Note 3) en 10Hz ≤ f ≤ 1kHz +25°C 1.3 2.8 µVRMS Temperature Hysteresis (Note 4) +25°C 20 ppm ppm/ Long-Term Stability ∆VOUT/t +25°C 30 1000hr 2 Maxim Integrated
