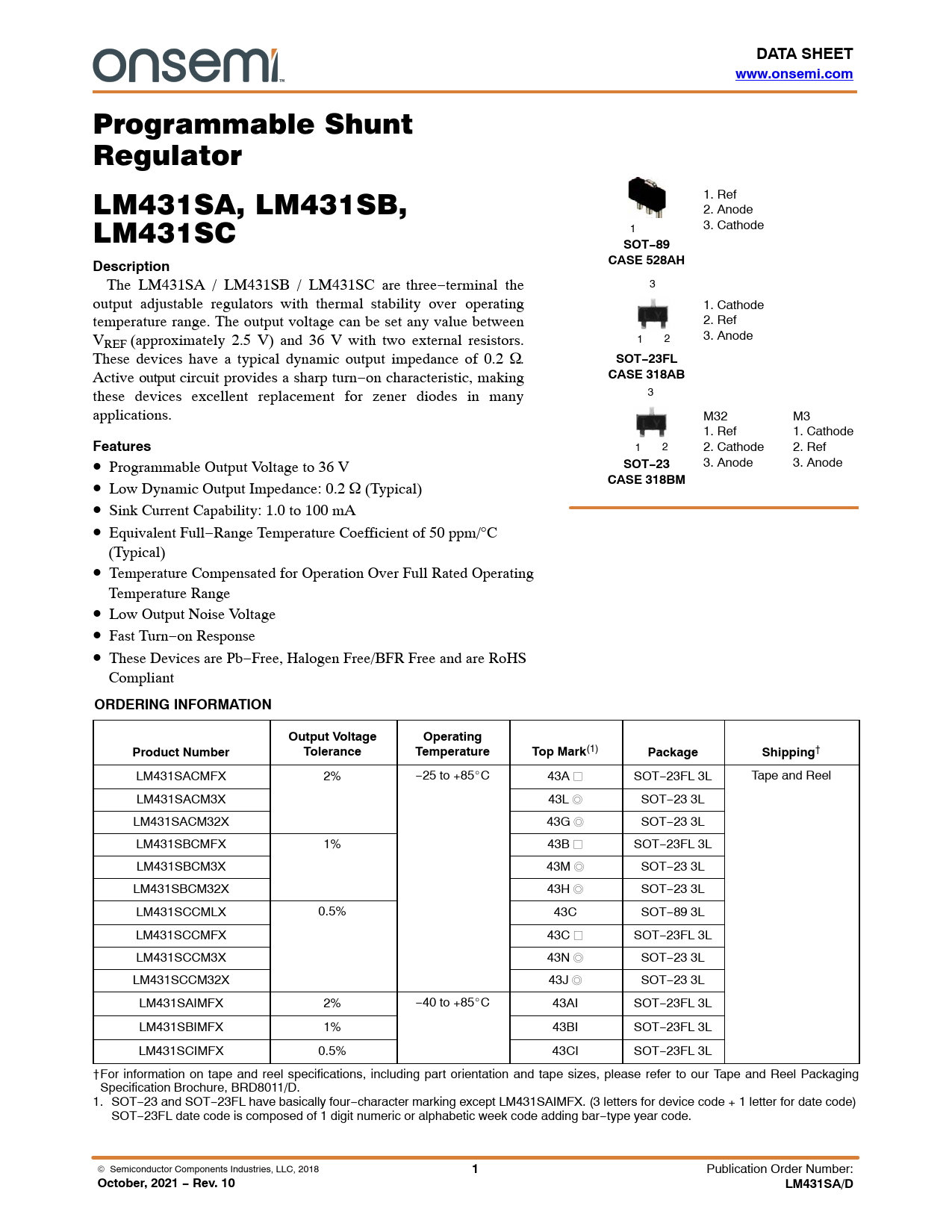

DATA SHEET www.onsemi.com
Programmable Shunt Regulator LM431SA, LM431SB, 1. Ref 2. Anode LM431SC 1 3. Cathode
SOT−89 Description CASE 528AH
The LM431SA / LM431SB / LM431SC are three−terminal the 3 output adjustable regulators with thermal stability over operating 1. Cathode temperature range. The output voltage can be set any value between 2. Ref V 3. Anode REF (approximately 2.5 V) and 36 V with two external resistors. 1 2 These devices have a typical dynamic output impedance of 0.2 W.
SOT−23FL
Active output circuit provides a sharp turn−on characteristic, making
CASE 318AB
these devices excellent replacement for zener diodes in many 3 applications. M32 M3 1. Ref 1. Cathode
Features
1 2 2. Cathode 2. Ref • Programmable Output Voltage to 36 V
SOT−23
3. Anode 3. Anode • Low Dynamic Output Impedance: 0.2 W (Typical)
CASE 318BM
• Sink Current Capability: 1.0 to 100 mA • Equivalent Full−Range Temperature Coefficient of 50 ppm/°C (Typical) • Temperature Compensated for Operation Over Full Rated Operating Temperature Range • Low Output Noise Voltage • Fast Turn−on Response • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
ORDERING INFORMATION Output Voltage Operating Product Number Tolerance Temperature Top Mark
(1)
Package Shipping
† LM431SACMFX 2% −25 to +85_C 43A □ SOT−23FL 3L Tape and Reel LM431SACM3X 43L ◎ SOT−23 3L LM431SACM32X 43G ◎ SOT−23 3L LM431SBCMFX 1% 43B □ SOT−23FL 3L LM431SBCM3X 43M ◎ SOT−23 3L LM431SBCM32X 43H ◎ SOT−23 3L LM431SCCMLX 0.5% 43C SOT−89 3L LM431SCCMFX 43C □ SOT−23FL 3L LM431SCCM3X 43N ◎ SOT−23 3L LM431SCCM32X 43J ◎ SOT−23 3L LM431SAIMFX 2% −40 to +85_C 43AI SOT−23FL 3L LM431SBIMFX 1% 43BI SOT−23FL 3L LM431SCIMFX 0.5% 43CI SOT−23FL 3L †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specification Brochure, BRD8011/D. 1. SOT−23 and SOT−23FL have basically four−character marking except LM431SAIMFX. (3 letters for device code + 1 letter for date code) SOT−23FL date code is composed of 1 digit numeric or alphabetic week code adding bar−type year code. © Semiconductor Components Industries, LLC, 2018
1
Publication Order Number:
October, 2021 − Rev. 10 LM431SA/D
