Datasheet LM431SB (ON Semiconductor) - 9
| 制造商 | ON Semiconductor |
| 描述 | Adjustable/2.5V, 1% Tolerance Shunt Regulator |
| 页数 / 页 | 12 / 9 — PACKAGE DIMENSIONS. SOT23−3L. GENERIC. MARKING DIAGRAM*. DOCUMENT NUMBER: … |
| 文件格式/大小 | PDF / 412 Kb |
| 文件语言 | 英语 |
PACKAGE DIMENSIONS. SOT23−3L. GENERIC. MARKING DIAGRAM*. DOCUMENT NUMBER: 98AON27911H. DESCRIPTION:. PAGE 1 OF 1. onsemi
该数据表的模型线
文件文字版本
MECHANICAL CASE OUTLINE

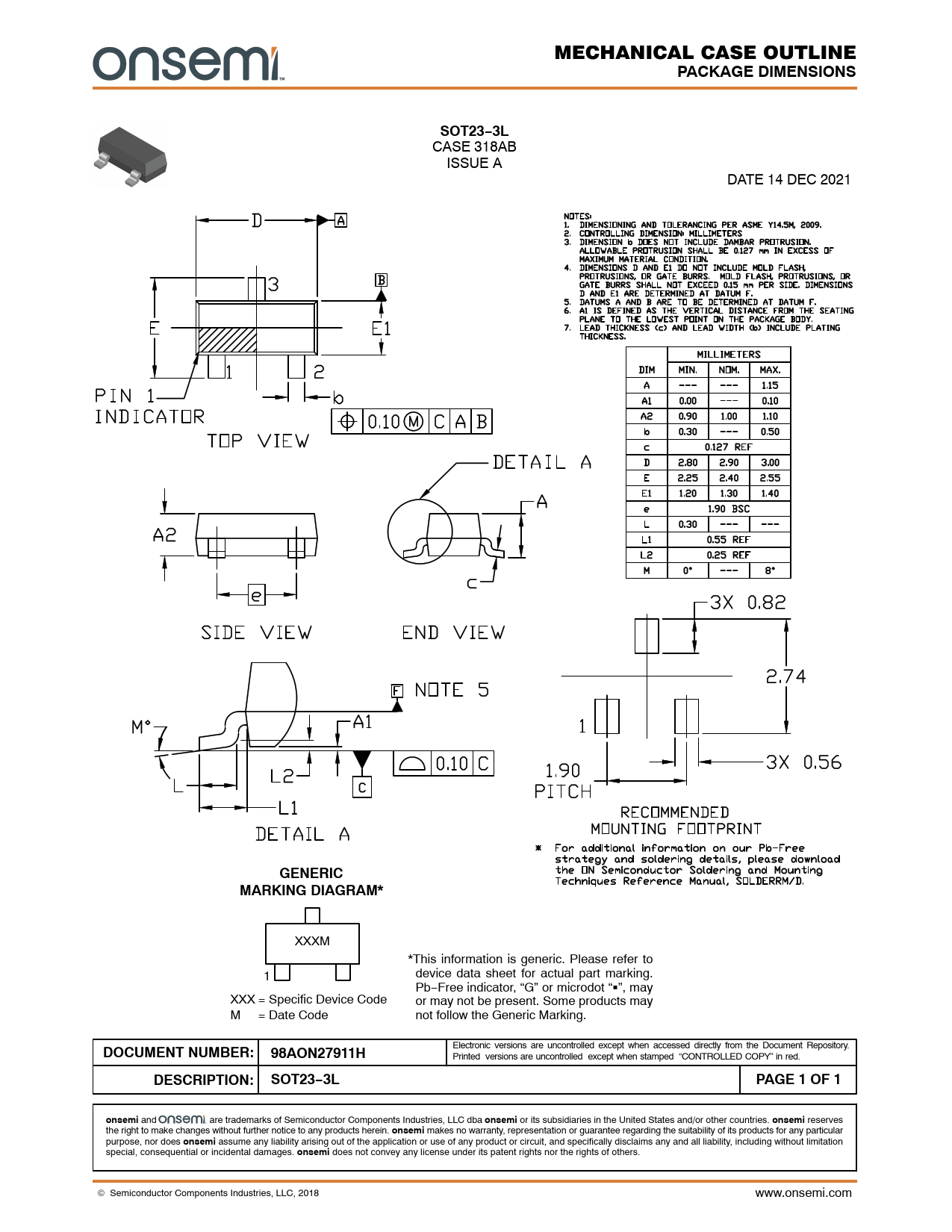

PACKAGE DIMENSIONS SOT23−3L
CASE 318AB ISSUE A DATE 14 DEC 2021
GENERIC MARKING DIAGRAM*
XXXM *This information is generic. Please refer to 1 device data sheet for actual part marking. Pb−Free indicator, “G” or microdot “G”, may XXX = Specific Device Code or may not be present. Some products may M = Date Code not follow the Generic Marking.
DOCUMENT NUMBER: 98AON27911H
Electronic versions are uncontrolled except when accessed directly from the Document Repository. Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.
DESCRIPTION: SOT23−3L PAGE 1 OF 1 onsemi
