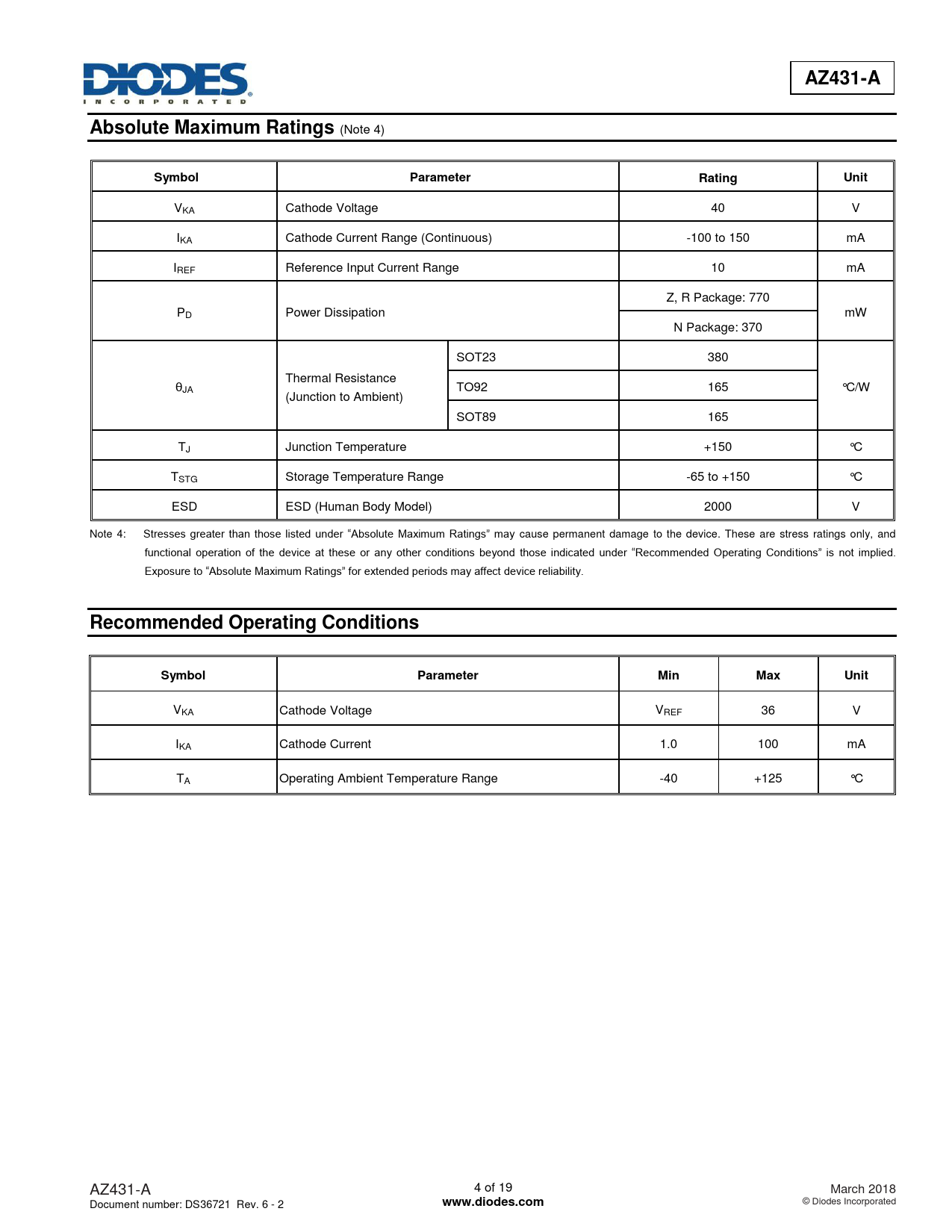

AZ431-A Absolute Maximum Ratings
(Note 4)
Symbol Parameter Rating Unit
VKA Cathode Voltage 40 V IKA Cathode Current Range (Continuous) -100 to 150 mA IREF Reference Input Current Range 10 mA Z, R Package: 770 PD Power Dissipation mW N Package: 370 SOT23 380 Thermal Resistance θJA TO92 165 °C/W (Junction to Ambient) SOT89 165 TJ Junction Temperature +150 °C TSTG Storage Temperature Range -65 to +150 °C ESD ESD (Human Body Model) 2000 V Note 4: Stresses greater than those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under “Recommended Operating Conditions” is not implied. Exposure to “Absolute Maximum Ratings” for extended periods may affect device reliability.
Recommended Operating Conditions Symbol Parameter Min Max Unit
VKA Cathode Voltage VREF 36 V IKA Cathode Current 1.0 100 mA TA Operating Ambient Temperature Range -40 +125
°
C AZ431-A 4 of 19 March 2018 Document number: DS36721 Rev. 6 - 2
