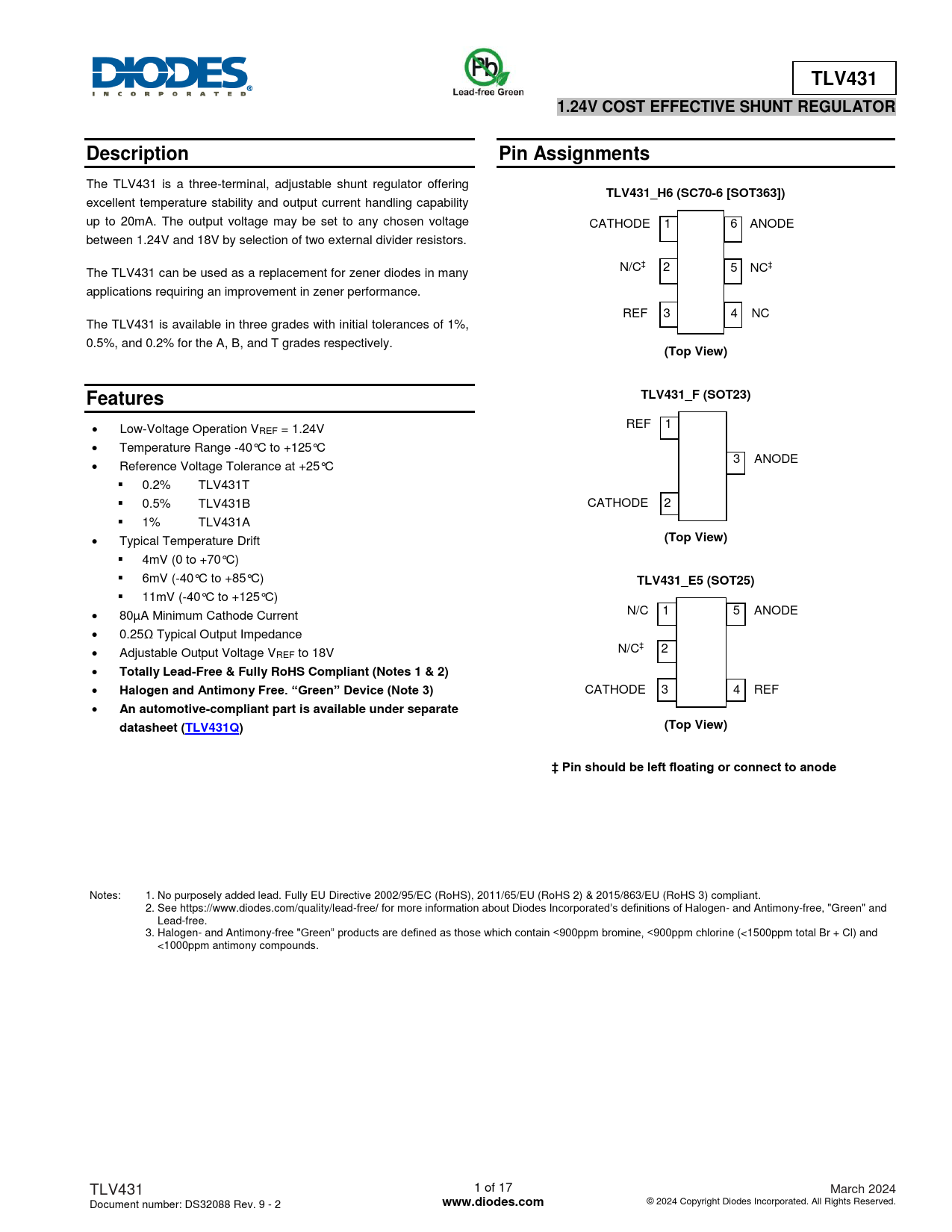

TLV431 1.24V COST EFFECTIVE SHUNT REGULATOR Description Pin Assignments
The TLV431 is a three-terminal, adjustable shunt regulator offering
TLV431_H6 (SC70-6 [SOT363])
excellent temperature stability and output current handling capability up to 20mA. The output voltage may be set to any chosen voltage CATHODE 1 6 ANODE between 1.24V and 18V by selection of two external divider resistors. N/C‡ 2 The TLV431 can be used as a replacement for zener diodes in many 5 NC‡ applications requiring an improvement in zener performance. REF 3 4 NC The TLV431 is available in three grades with initial tolerances of 1%, 0.5%, and 0.2% for the A, B, and T grades respectively.
(Top View) Features TLV431_F (SOT23)
Low-Voltage Operation V REF 1 REF = 1.24V Temperature Range -40°C to +125°C 3 ANODE Reference Voltage Tolerance at +25°C  0.2% TLV431T  0.5% TLV431B CATHODE 2  1% TLV431A Typical Temperature Drift
(Top View)
 4mV (0 to +70°C)  6mV (-40°C to +85°C)
TLV431_E5 (SOT25)
 11mV (-40°C to +125°C) 80µA Minimum Cathode Current N/C 1 5 ANODE 0.25Ω Typical Output Impedance Adjustable Output Voltage V N/C‡ 2 REF to 18V
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3)
CATHODE 3 4 REF
An automotive-compliant part is available under separate datasheet (TLV431Q) (Top View) ‡ Pin should be left floating or connect to anode
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. TLV431 1 of 17 March 2024 Document number: DS32088 Rev. 9 - 2
