Datasheet TS4061 (STMicroelectronics) - 9

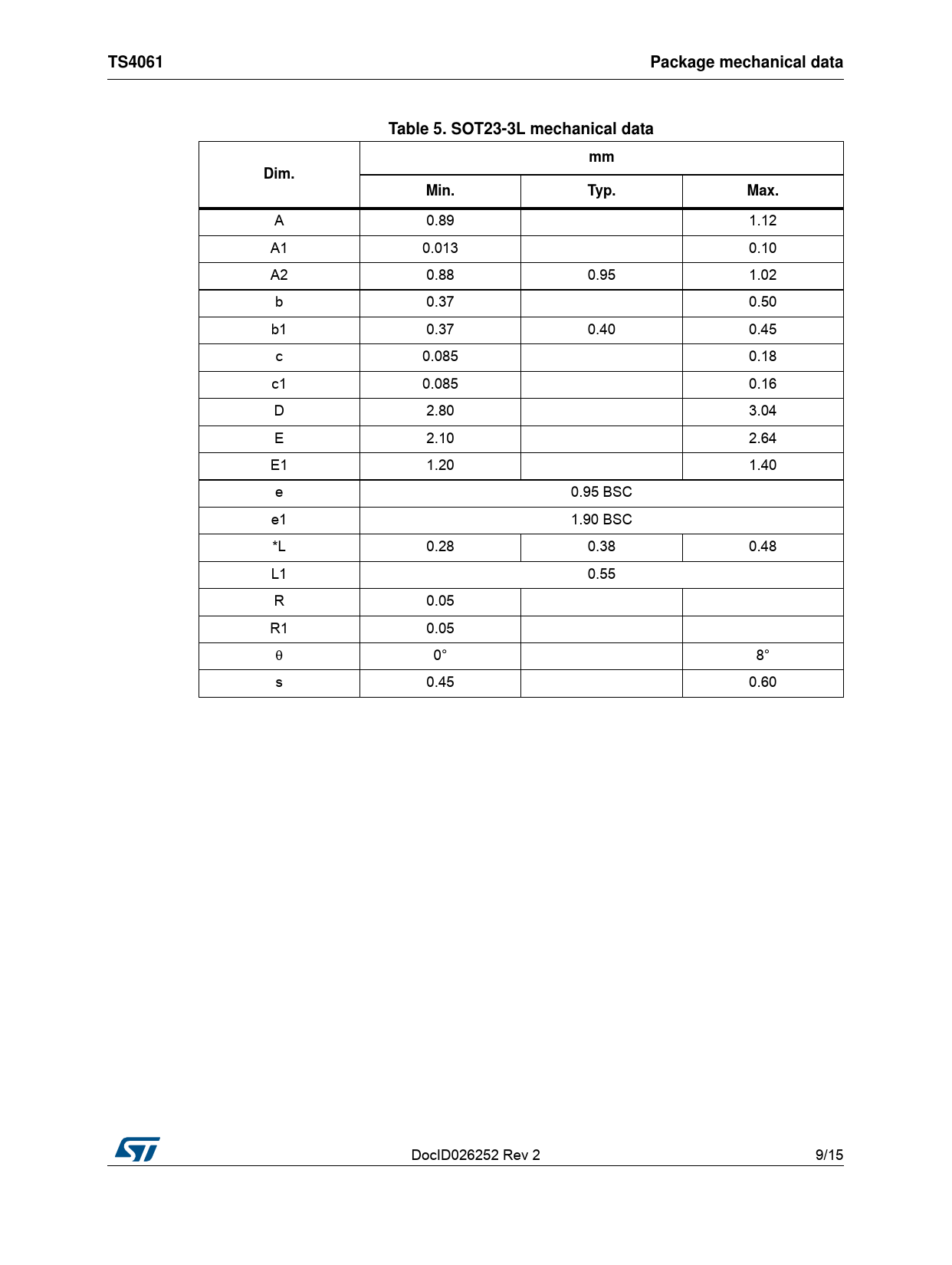

TS4061 Package mechanical data Table 5. SOT23-3L mechanical data mm Dim. Min. Typ. Max.
A 0.89 1.12 A1 0.013 0.10 A2 0.88 0.95 1.02 b 0.37 0.50 b1 0.37 0.40 0.45 c 0.085 0.18 c1 0.085 0.16 D 2.80 3.04 E 2.10 2.64 E1 1.20 1.40 e 0.95 BSC e1 1.90 BSC *L 0.28 0.38 0.48 L1 0.55 R 0.05 R1 0.05  0° 8° s 0.45 0.60 DocID026252 Rev 2 9/15 15 Document Outline 1 Pin configuration Figure 1. Pin configuration SOT23-3L, SOT323-3L (top view) 2 Maximum ratings Table 1. Absolute maximum ratings Table 2. Thermal data Table 3. Operating conditions 3 Electrical characteristics Table 4. Electrical characteristics for TS4061 4 Typical performance characteristics Figure 2. VK change vs temperature (1.225 V version) Figure 3. VK change vs temperature (1.25 V version) Figure 4. IKmin minimum current for regulation Figure 5. IKmin minimum current for regulation vs temperature Figure 6. Output impedance vs frequency Figure 7. Forward characteristics Figure 8. Start-up waveform (no Cload) Figure 9. Start-up waveform (Cload = 100 nF) Figure 10. Low frequency noise 5 Package mechanical data 5.1 SOT23-3L, TS4061 Figure 11. SOT23-3L mechanical drawings Table 5. SOT23-3L mechanical data Figure 12. SOT23-3L recommended footprint 5.2 SOT323-3L, TS4061 Figure 13. SOT323-3L drawings Table 6. SOT323-3L mechanical data Figure 14. SOT323-3L recommended footprint 6 Ordering information Table 7. Order codes 7 Revision history Table 8. Document revision history
