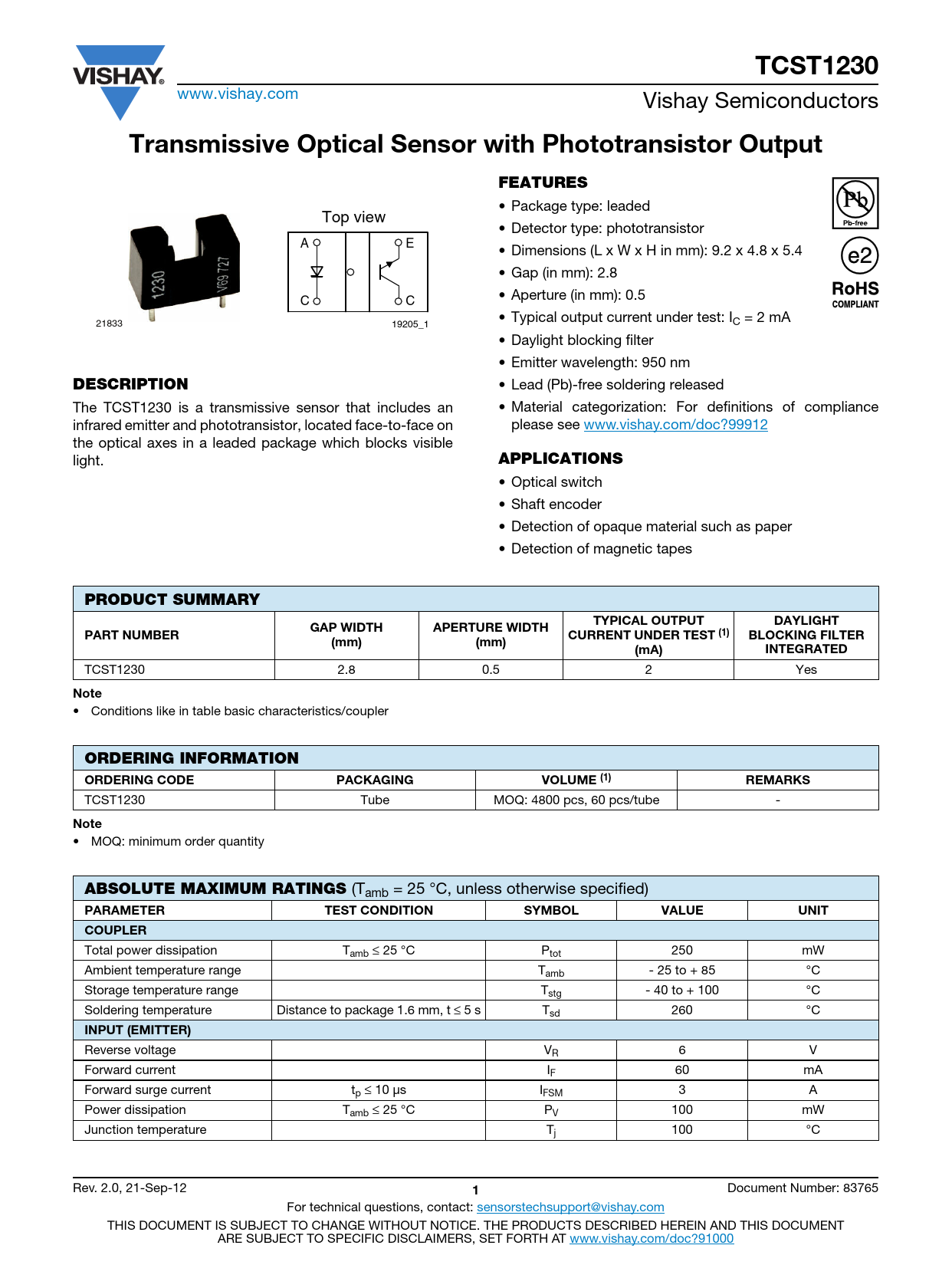

TCST1230
www.vishay.com Vishay Semiconductors
Transmissive Optical Sensor with Phototransistor Output FEATURES
• Package type: leaded Top view • Detector type: phototransistor A E • Dimensions (L x W x H in mm): 9.2 x 4.8 x 5.4 • Gap (in mm): 2.8 • Aperture (in mm): 0.5 C C • Typical output current under test: I 21833 C = 2 mA 19205_1 • Daylight blocking filter • Emitter wavelength: 950 nm
DESCRIPTION
• Lead (Pb)-free soldering released The TCST1230 is a transmissive sensor that includes an • Material categorization: For definitions of compliance infrared emitter and phototransistor, located face-to-face on please see www.vishay.com/doc?99912 the optical axes in a leaded package which blocks visible light.
APPLICATIONS
• Optical switch • Shaft encoder • Detection of opaque material such as paper • Detection of magnetic tapes
PRODUCT SUMMARY TYPICAL OUTPUT DAYLIGHT PART NUMBER GAP WIDTH APERTURE WIDTH (mm) (mm) CURRENT UNDER TEST (1) BLOCKING FILTER (mA) INTEGRATED
TCST1230 2.8 0.5 2 Yes
Note
• Conditions like in table basic characteristics/coupler
ORDERING INFORMATION ORDERING CODE PACKAGING VOLUME (1) REMARKS
TCST1230 Tube MOQ: 4800 pcs, 60 pcs/tube -
Note
• MOQ: minimum order quantity
ABSOLUTE MAXIMUM RATINGS
(Tamb = 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION SYMBOL VALUE UNIT COUPLER
Total power dissipation Tamb ≤ 25 °C Ptot 250 mW Ambient temperature range Tamb - 25 to + 85 °C Storage temperature range Tstg - 40 to + 100 °C Soldering temperature Distance to package 1.6 mm, t ≤ 5 s Tsd 260 °C
INPUT (EMITTER)
Reverse voltage VR 6 V Forward current IF 60 mA Forward surge current tp ≤ 10 μs IFSM 3 A Power dissipation Tamb ≤ 25 °C PV 100 mW Junction temperature Tj 100 °C Rev. 2.0, 21-Sep-12
1
Document Number: 83765 For technical questions, contact: sensorstechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
