Datasheet DG20001E (Vishay) - 9
| 制造商 | Vishay |
| 描述 | Powered-off Protection, 0.85 , 1.8 V to 5.5 V, SPDT Analog Switch (2:1 Multiplexer) |
| 页数 / 页 | 12 / 9 — DG2001E. TEST CIRCUITS. Fig. 4 - Off-Isolation. Fig. 5 - Channel Off/On … |
| 文件格式/大小 | PDF / 217 Kb |
| 文件语言 | 英语 |

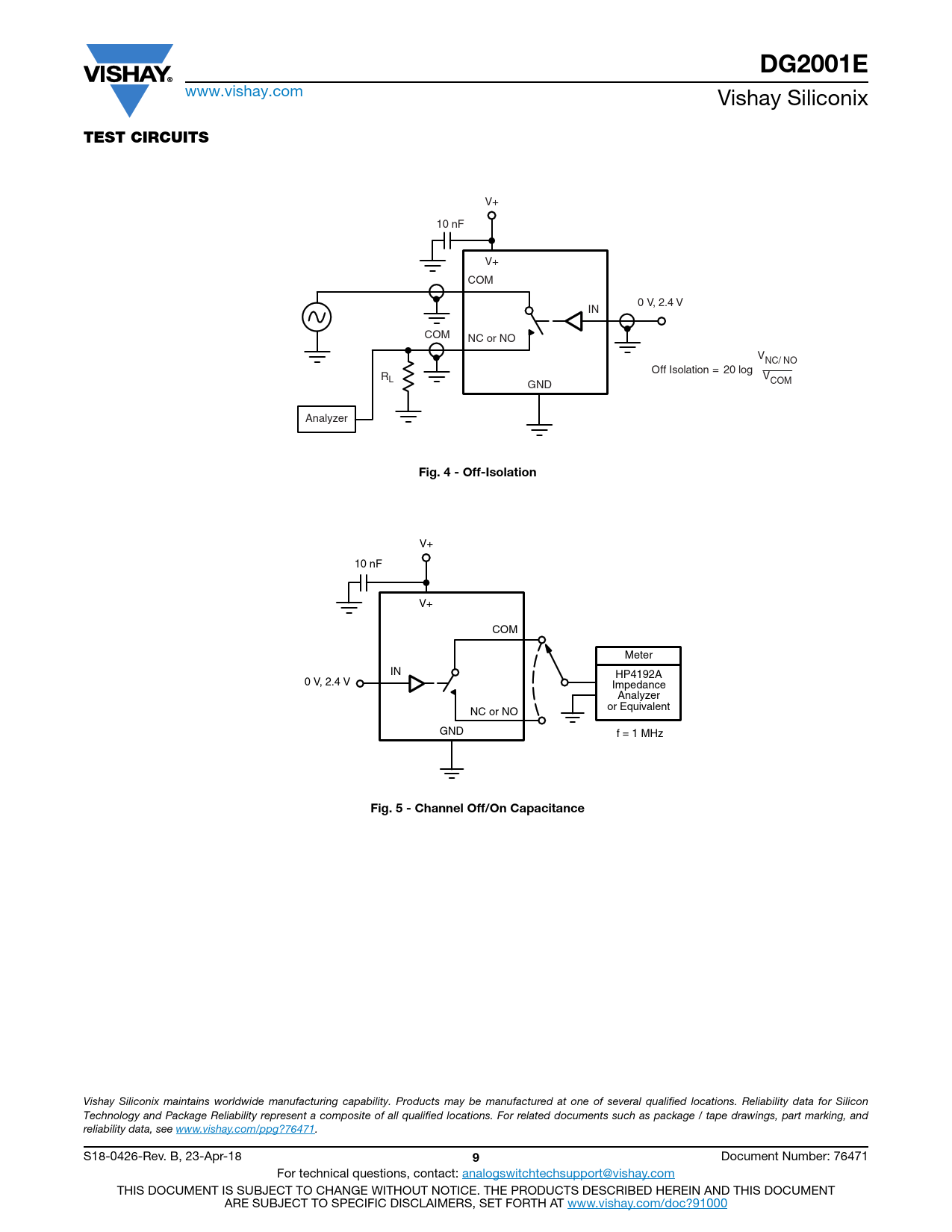

DG2001E. TEST CIRCUITS. Fig. 4 - Off-Isolation. Fig. 5 - Channel Off/On Capacitance
该数据表的模型线
文件文字版本
DG2001E
www.vishay.com Vishay Siliconix
TEST CIRCUITS
V+ 10 nF V+ COM 0 V, 2.4 V IN COM NC or NO VNC/ NO Off Isolation = 20 log R V L GND COM Analyzer
Fig. 4 - Off-Isolation
V+ 10 nF V+ COM Meter IN HP4192A 0 V, 2.4 V Impedance Analyzer or Equivalent NC or NO GND f = 1 MHz
Fig. 5 - Channel Off/On Capacitance
