SA571. Figure 1. Block Diagram. MAXIMUM RATINGS. Rating. Symbol. Value. Unit. http://onsemi.com
该数据表的模型线
文件文字版本

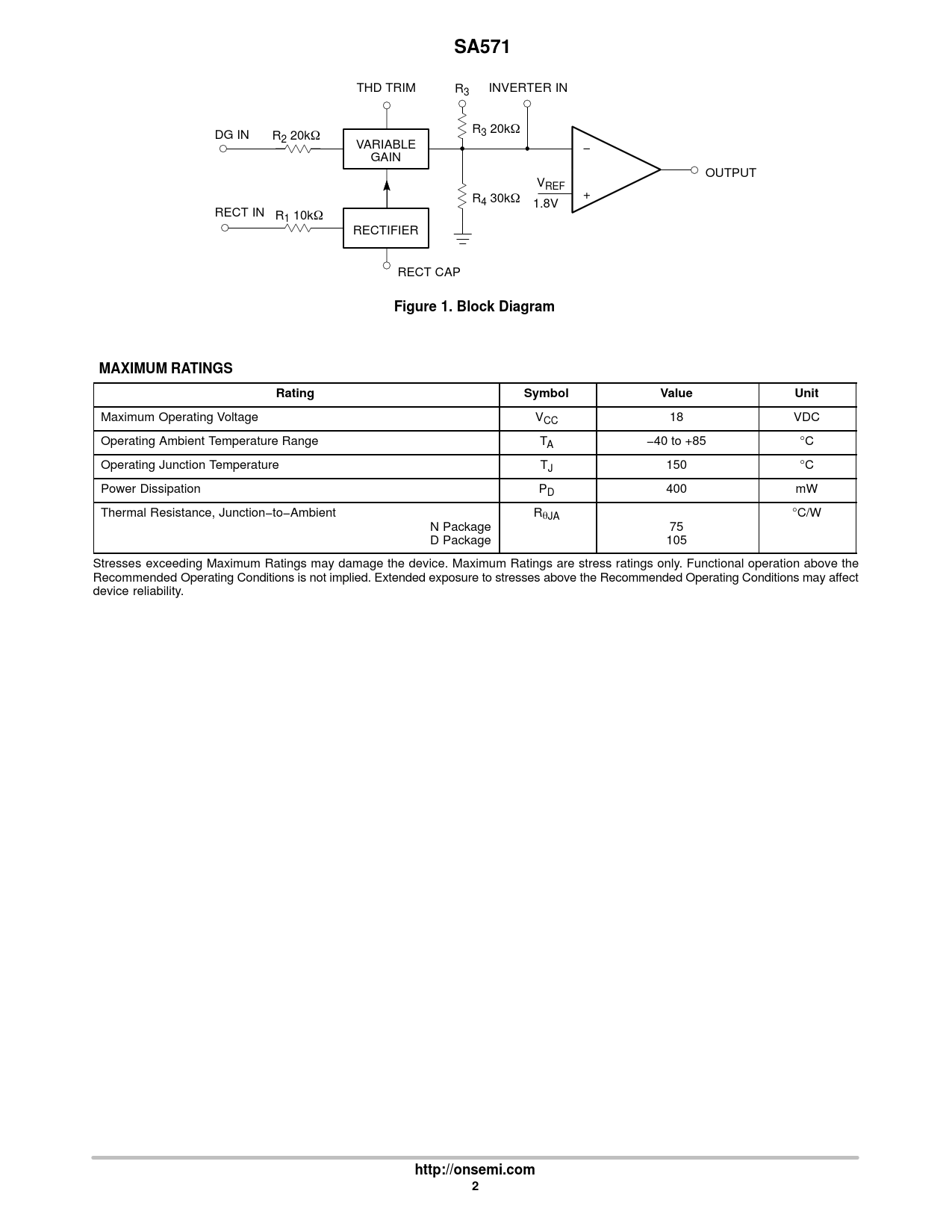

SA571
THD TRIM R INVERTER IN 3 R DG IN R 3 20kW 2 20kW VARIABLE − GAIN OUTPUT VREF + R4 30kW 1.8V RECT IN R1 10kW RECTIFIER RECT CAP
Figure 1. Block Diagram MAXIMUM RATINGS Rating Symbol Value Unit
Maximum Operating Voltage VCC 18 VDC Operating Ambient Temperature Range TA −40 to +85 °C Operating Junction Temperature TJ 150 °C Power Dissipation PD 400 mW Thermal Resistance, Junction−to−Ambient RqJA °C/W N Package 75 D Package 105 Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.
http://onsemi.com 2
