Datasheet ECS-SDR1 (ECS Inc.) - 2
| 制造商 | ECS Inc. |
| 描述 | SMD One Port SAW Resonator |
| 页数 / 页 | 2 / 2 — ECS-SDR1 Series. SMD ONE PORT SAW Resonator. DIMENSIONS (mm). Pin … |
| 文件格式/大小 | PDF / 421 Kb |
| 文件语言 | 英语 |
ECS-SDR1 Series. SMD ONE PORT SAW Resonator. DIMENSIONS (mm). Pin Connections. Figure 1). Figure 2). SOLDER PROFILE
该数据表的模型线
文件文字版本

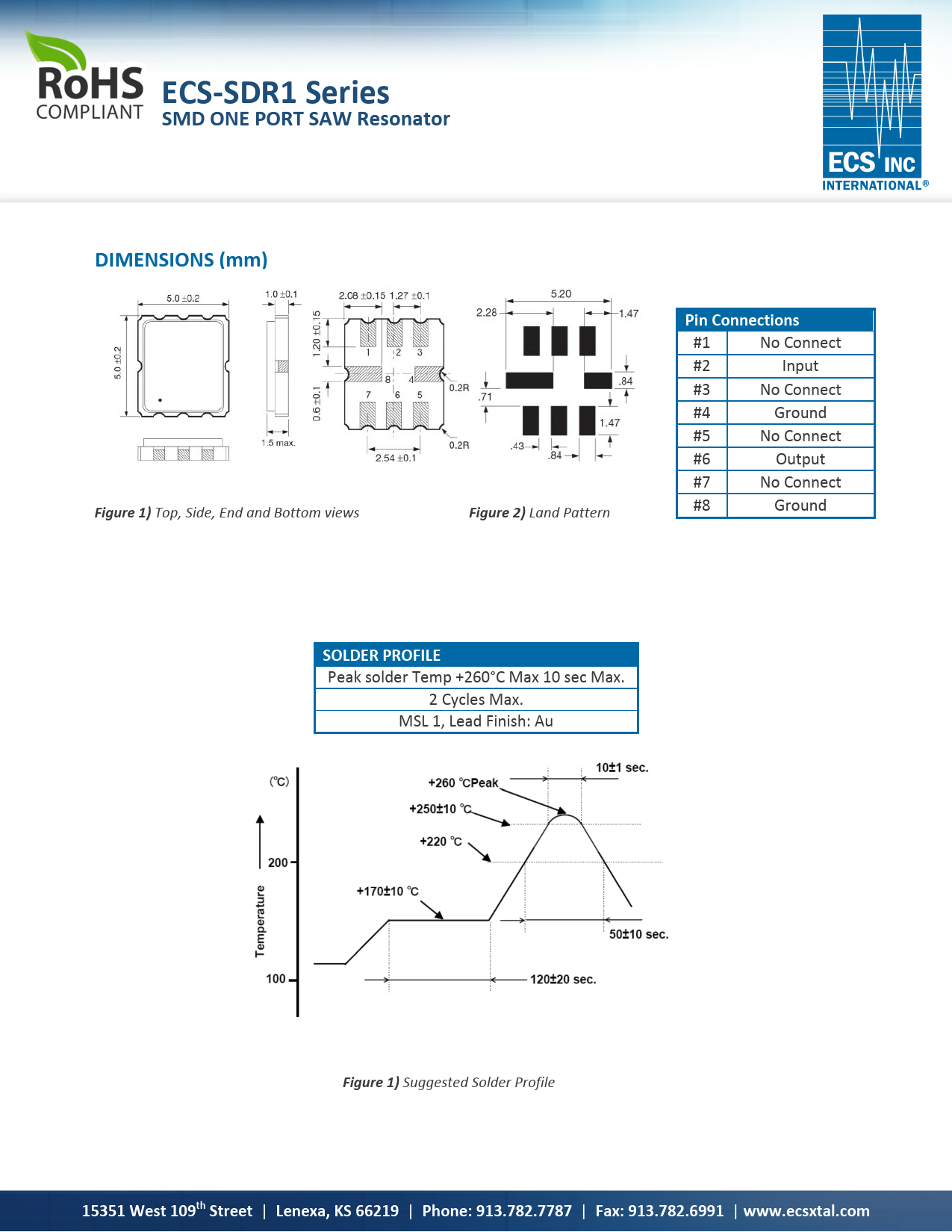

ECS-SDR1 Series SMD ONE PORT SAW Resonator DIMENSIONS (mm) Pin Connections
#1 No Connect #2 Input #3 No Connect #4 Ground #5 No Connect #6 Output #7 No Connect #8 Ground
Figure 1)
Top, Side, End and Bottom views
Figure 2)
Land Pattern
SOLDER PROFILE
Peak solder Temp +260°C Max 10 sec Max. 2 Cycles Max. MSL 1, Lead Finish: Au
Figure 1)
Suggested Solder Profile
15351 West 109th Street
|
Lenexa, KS 66219
|
Phone: 913.782.7787
|
Fax: 913.782.6991
|
www.ecsxtal.com
#1 No Connect #2 Input #3 No Connect #4 Ground #5 No Connect #6 Output #7 No Connect #8 Ground
Figure 1)
Top, Side, End and Bottom views
Figure 2)
Land Pattern
SOLDER PROFILE
Peak solder Temp +260°C Max 10 sec Max. 2 Cycles Max. MSL 1, Lead Finish: Au
Figure 1)
Suggested Solder Profile
