Datasheet BLF881 (Ampleon) - 6
| 制造商 | Ampleon |
| 描述 | UHF power LDMOS transistor |
| 页数 / 页 | 18 / 6 — BLF881; BLF881S. UHF power LDMOS transistor. 7.1.3 DVB-T. Fig 5. DVB-T … |
| 文件格式/大小 | PDF / 1.3 Mb |
| 文件语言 | 英语 |
BLF881; BLF881S. UHF power LDMOS transistor. 7.1.3 DVB-T. Fig 5. DVB-T power gain and drain efficiency as. Fig 6
该数据表的模型线
文件文字版本
BLF881; BLF881S UHF power LDMOS transistor 7.1.3 DVB-T
001aal078 001aal079 23 70 0 Gp ηD IMD (dB) (%) shldr 22 Gp 60 (dBc) −10 21 50 −20 20 40 ηD 19 30 −30 18 20 −40 (1) 17 10 (2) 16 0 −50 0 30 60 90 0 30 60 90 PL(AV) (W) PL(AV) (W) VDS = 50 V; IDq = 0.5 A; measured in a common-source VDS = 50 V; IDq = 0.5 A; measured in a common-source narrowband 860 MHz test circuit. narrowband 860 MHz test circuit. (1) Lower adjacent channel (2) Upper adjacent channel

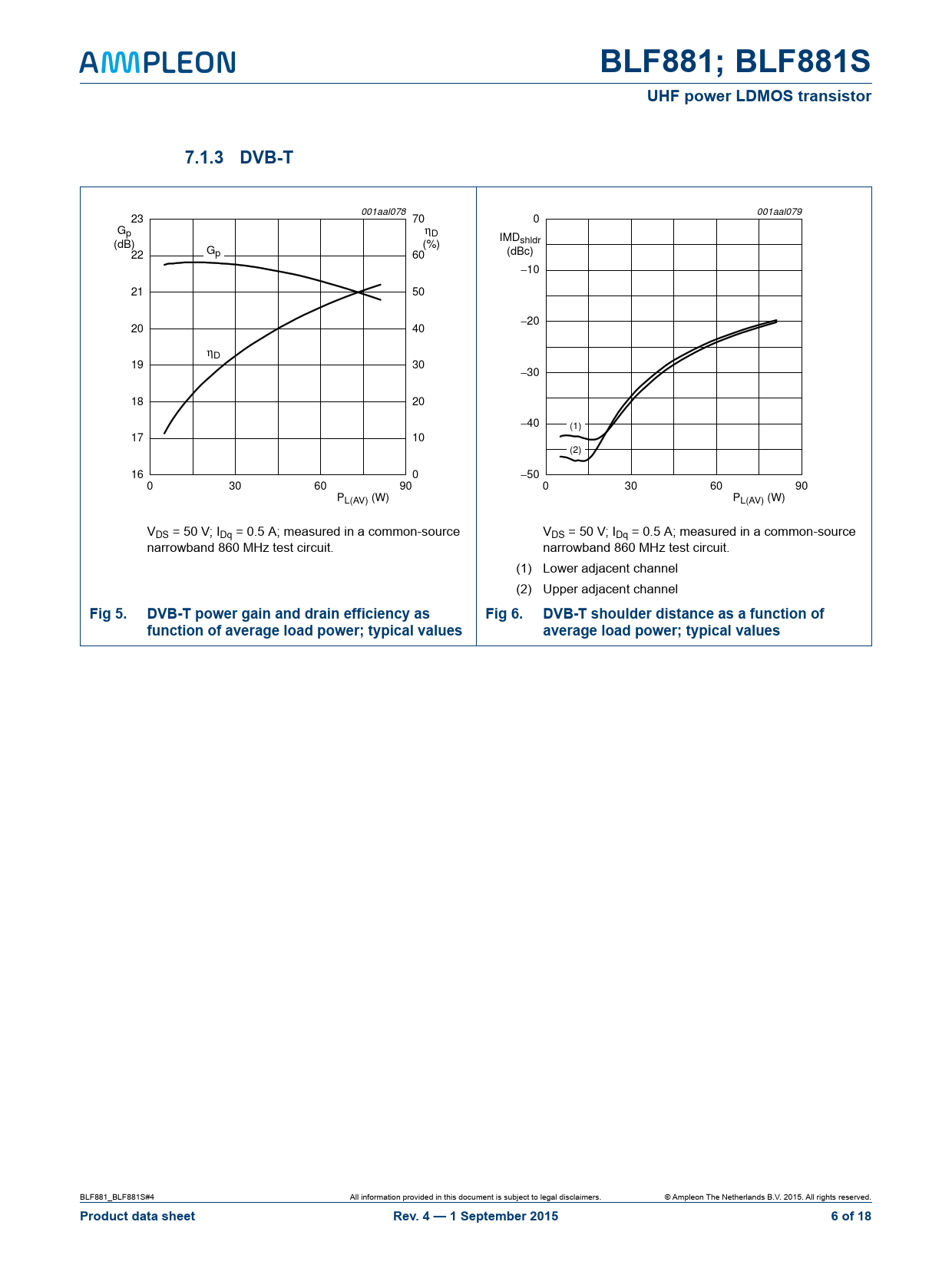

Fig 5. DVB-T power gain and drain efficiency as Fig 6. DVB-T shoulder distance as a function of function of average load power; typical values average load power; typical values
BLF881_BLF881S#4 All information provided in this document is subject to legal disclaimers. © Ampleon The Netherlands B.V. 2015. All rights reserved.
Product data sheet Rev. 4 — 1 September 2015 6 of 18
