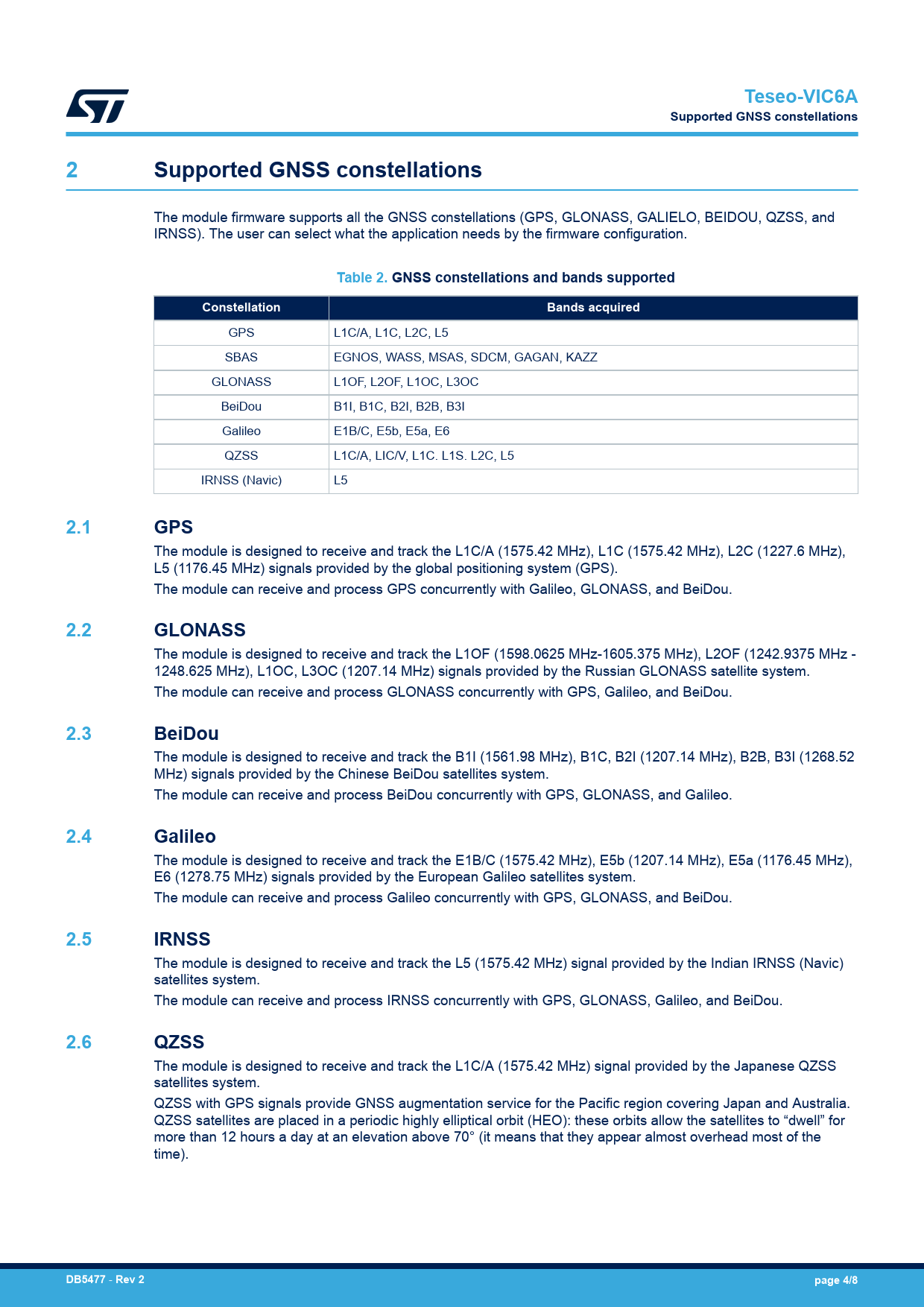

Teseo-VIC6A Supported GNSS constellations 2 Supported GNSS constellations
The module firmware supports all the GNSS constellations (GPS, GLONASS, GALIELO, BEIDOU, QZSS, and IRNSS). The user can select what the application needs by the firmware configuration.
Table 2. GNSS constellations and bands supported Constellation Bands acquired
GPS L1C/A, L1C, L2C, L5 SBAS EGNOS, WASS, MSAS, SDCM, GAGAN, KAZZ GLONASS L1OF, L2OF, L1OC, L3OC BeiDou B1I, B1C, B2I, B2B, B3I Galileo E1B/C, E5b, E5a, E6 QZSS L1C/A, LIC/V, L1C. L1S. L2C, L5 IRNSS (Navic) L5
2.1 GPS
The module is designed to receive and track the L1C/A (1575.42 MHz), L1C (1575.42 MHz), L2C (1227.6 MHz), L5 (1176.45 MHz) signals provided by the global positioning system (GPS). The module can receive and process GPS concurrently with Galileo, GLONASS, and BeiDou.
2.2 GLONASS
The module is designed to receive and track the L1OF (1598.0625 MHz-1605.375 MHz), L2OF (1242.9375 MHz - 1248.625 MHz), L1OC, L3OC (1207.14 MHz) signals provided by the Russian GLONASS satellite system. The module can receive and process GLONASS concurrently with GPS, Galileo, and BeiDou.
2.3 BeiDou
The module is designed to receive and track the B1I (1561.98 MHz), B1C, B2I (1207.14 MHz), B2B, B3I (1268.52 MHz) signals provided by the Chinese BeiDou satellites system. The module can receive and process BeiDou concurrently with GPS, GLONASS, and Galileo.
2.4 Galileo
The module is designed to receive and track the E1B/C (1575.42 MHz), E5b (1207.14 MHz), E5a (1176.45 MHz), E6 (1278.75 MHz) signals provided by the European Galileo satellites system. The module can receive and process Galileo concurrently with GPS, GLONASS, and BeiDou.
2.5 IRNSS
The module is designed to receive and track the L5 (1575.42 MHz) signal provided by the Indian IRNSS (Navic) satellites system. The module can receive and process IRNSS concurrently with GPS, GLONASS, Galileo, and BeiDou.
2.6 QZSS
The module is designed to receive and track the L1C/A (1575.42 MHz) signal provided by the Japanese QZSS satellites system. QZSS with GPS signals provide GNSS augmentation service for the Pacific region covering Japan and Australia. QZSS satellites are placed in a periodic highly elliptical orbit (HEO): these orbits allow the satellites to “dwell” for more than 12 hours a day at an elevation above 70° (it means that they appear almost overhead most of the time).
DB5477
-
Rev 2 page 4/8
