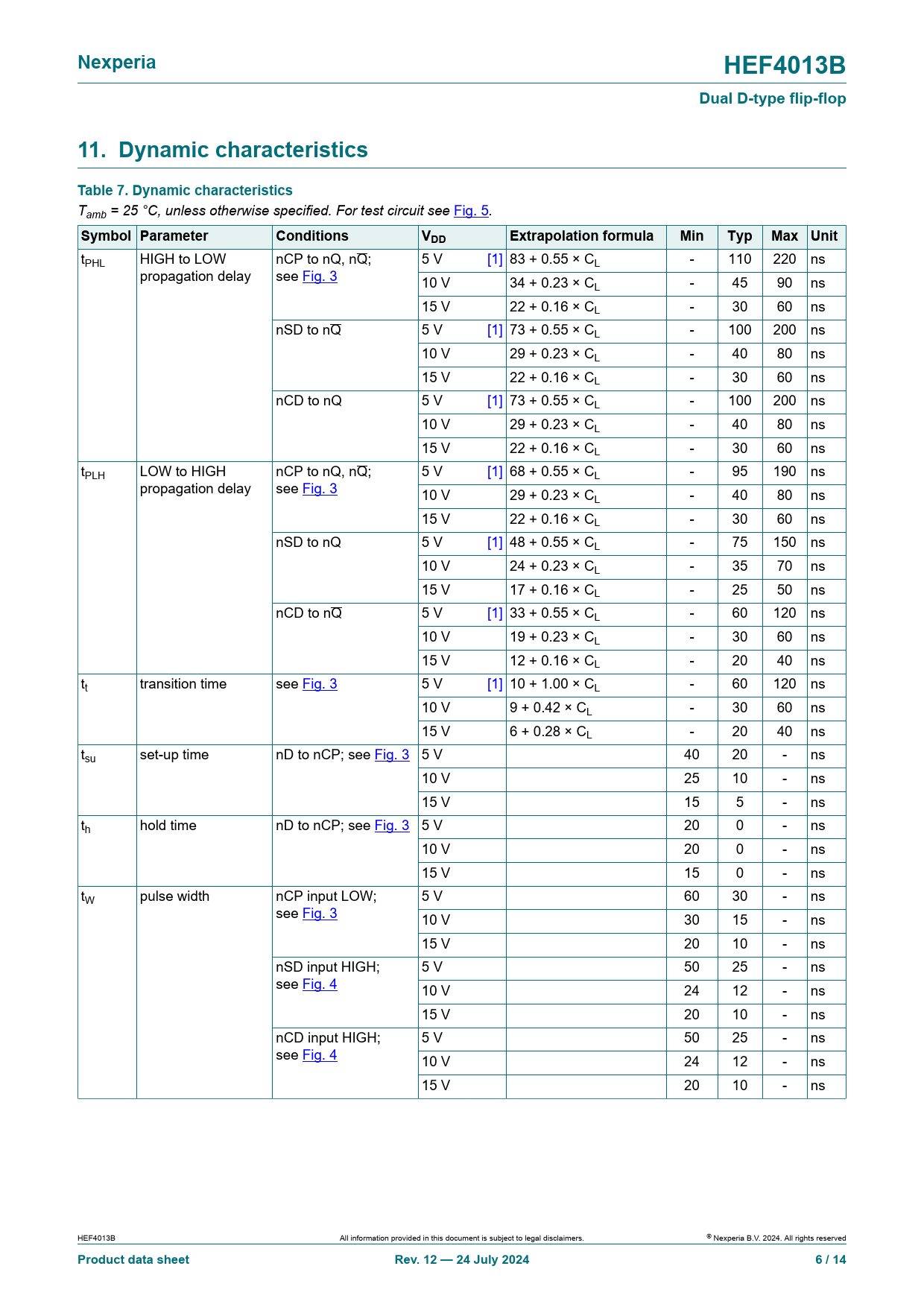

Nexperia HEF4013B Dual D-type flip-flop 11. Dynamic characteristics Table 7. Dynamic characteristics
Tamb = 25 °C, unless otherwise specified. For test circuit see Fig. 5.
Symbol Parameter Conditions VDD Extrapolation formula Min Typ Max Unit
tPHL HIGH to LOW nCP to nQ, nQ; 5 V [1] 83 + 0.55 × CL - 110 220 ns propagation delay see Fig. 3 10 V 34 + 0.23 × CL - 45 90 ns 15 V 22 + 0.16 × CL - 30 60 ns nSD to nQ 5 V [1] 73 + 0.55 × CL - 100 200 ns 10 V 29 + 0.23 × CL - 40 80 ns 15 V 22 + 0.16 × CL - 30 60 ns nCD to nQ 5 V [1] 73 + 0.55 × CL - 100 200 ns 10 V 29 + 0.23 × CL - 40 80 ns 15 V 22 + 0.16 × CL - 30 60 ns tPLH LOW to HIGH nCP to nQ, nQ; 5 V [1] 68 + 0.55 × CL - 95 190 ns propagation delay see Fig. 3 10 V 29 + 0.23 × CL - 40 80 ns 15 V 22 + 0.16 × CL - 30 60 ns nSD to nQ 5 V [1] 48 + 0.55 × CL - 75 150 ns 10 V 24 + 0.23 × CL - 35 70 ns 15 V 17 + 0.16 × CL - 25 50 ns nCD to nQ 5 V [1] 33 + 0.55 × CL - 60 120 ns 10 V 19 + 0.23 × CL - 30 60 ns 15 V 12 + 0.16 × CL - 20 40 ns tt transition time see Fig. 3 5 V [1] 10 + 1.00 × CL - 60 120 ns 10 V 9 + 0.42 × CL - 30 60 ns 15 V 6 + 0.28 × CL - 20 40 ns tsu set-up time nD to nCP; see Fig. 3 5 V 40 20 - ns 10 V 25 10 - ns 15 V 15 5 - ns th hold time nD to nCP; see Fig. 3 5 V 20 0 - ns 10 V 20 0 - ns 15 V 15 0 - ns tW pulse width nCP input LOW; 5 V 60 30 - ns see Fig. 3 10 V 30 15 - ns 15 V 20 10 - ns nSD input HIGH; 5 V 50 25 - ns see Fig. 4 10 V 24 12 - ns 15 V 20 10 - ns nCD input HIGH; 5 V 50 25 - ns see Fig. 4 10 V 24 12 - ns 15 V 20 10 - ns HEF4013B All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2024. Al rights reserved
Product data sheet Rev. 12 — 24 July 2024 6 / 14
