Datasheet AWSCR-CRLA (Abracon) - 2
| 制造商 | Abracon |
| 描述 | Ceramic resonator 7.37 MHz 15 pF SMD |
| 页数 / 页 | 6 / 2 — Miniature Ceramic Resonator. 4.5 x 2.0 x 1.0 mm. RoHS/RoHS II Compliant. … |
| 文件格式/大小 | PDF / 794 Kb |
| 文件语言 | 英语 |
Miniature Ceramic Resonator. 4.5 x 2.0 x 1.0 mm. RoHS/RoHS II Compliant. Pb in ceramic, exemption (7c-I)
该数据表的模型线
文件文字版本

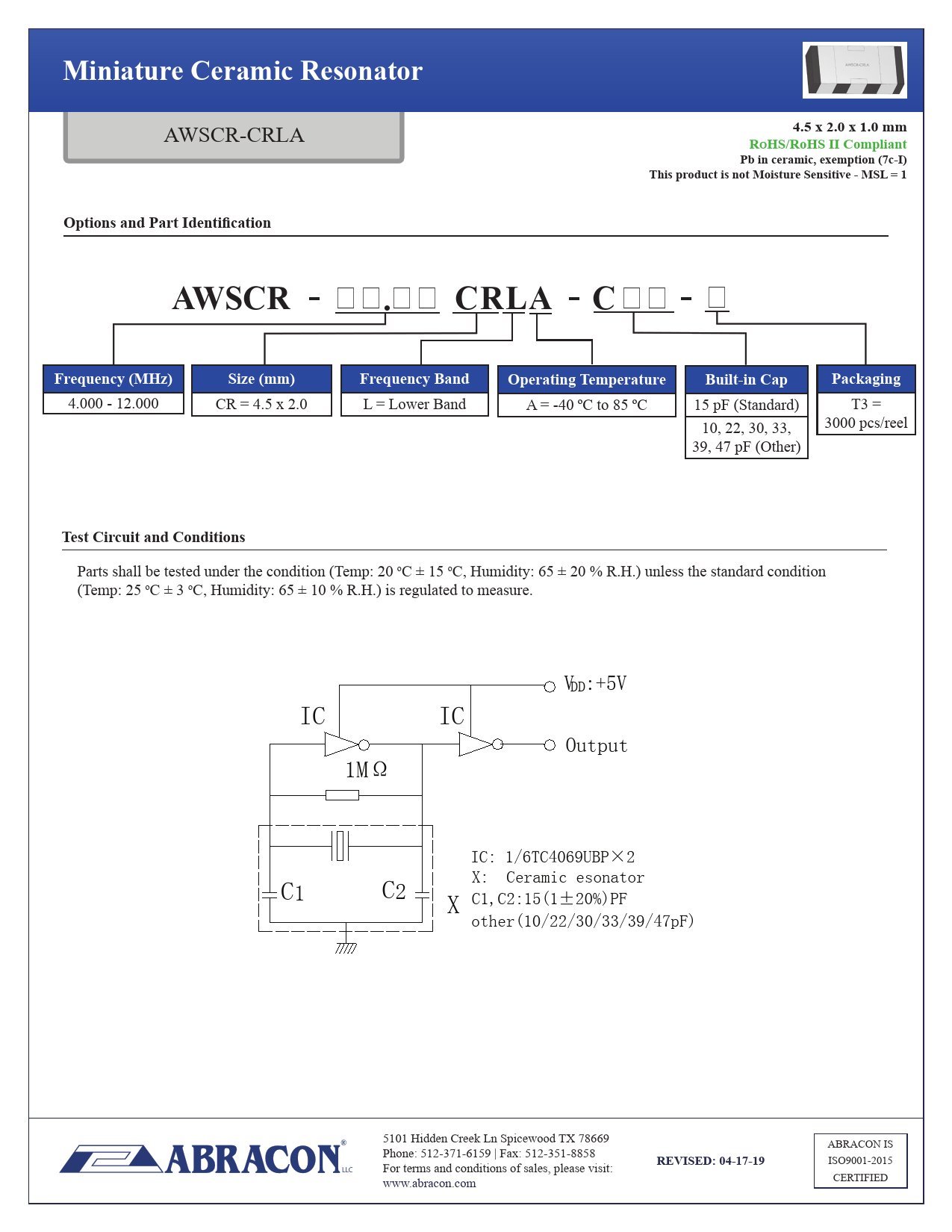

Miniature Ceramic Resonator 4.5 x 2.0 x 1.0 mm
AWSCR-CRLA
RoHS/RoHS II Compliant Pb in ceramic, exemption (7c-I) This product is not Moisture Sensitive - MSL = 1 Options and Part Identification AWSCR . CRLA C Frequency (MHz) Size (mm) Frequency Band Operating Temperature Built-in Cap Packaging
4.000 - 12.000 CR = 4.5 x 2.0 L = Lower Band A = -40 ºC to 85 ºC 15 pF (Standard) T3 = 10, 22, 30, 33, 3000 pcs/reel 39, 47 pF (Other)
Test Circuit and Conditions
Parts shall be tested under the condition (Temp: 20 oC ± 15 oC, Humidity: 65 ± 20 % R.H.) unless the standard condition (Temp: 25 oC ± 3 oC, Humidity: 65 ± 10 % R.H.) is regulated to measure. V : DD +5V IC IC Output 1MΩ IC: 1/6TC4069UBP×2 X: Ceramic esonator C1 C2 X C1,C2:15(1±20%)PF other(10/22/30/33/39/47pF) 5101 Hidden Creek Ln Spicewood TX 78669 ABRACON IS Phone: 512-371-6159 | Fax: 512-351-8858
