Datasheet ECS-CTA (ECS Inc.) - 2
| 制造商 | ECS Inc. |
| 描述 | SMD Ceramic Resonator |
| 页数 / 页 | 2 / 2 — ECS-CTA. SMD Ceramic Resonator. POCKET TAPE DIMENSIONS (mm). DEVELOPED … |
| 文件格式/大小 | PDF / 375 Kb |
| 文件语言 | 英语 |

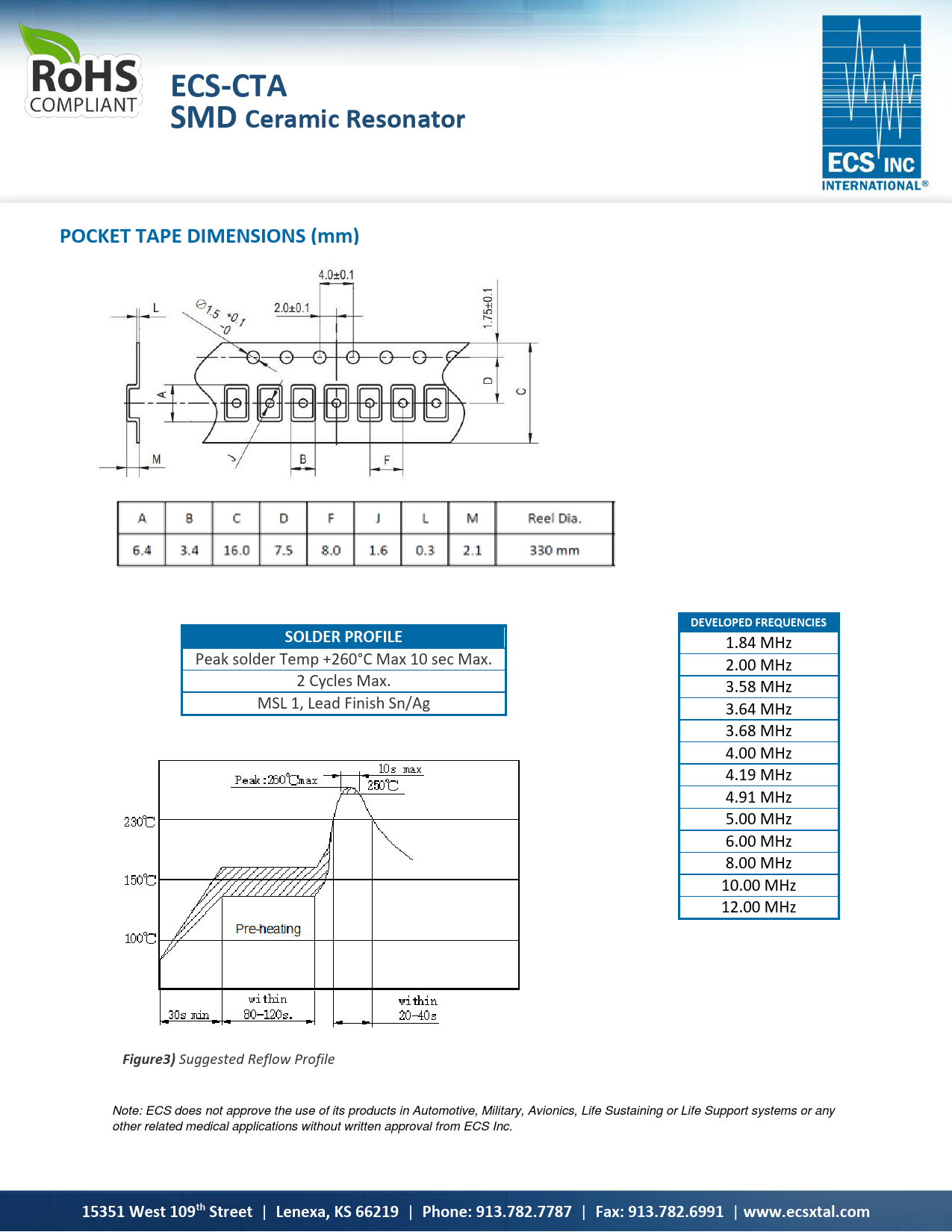

ECS-CTA. SMD Ceramic Resonator. POCKET TAPE DIMENSIONS (mm). DEVELOPED FREQUENCIES. SOLDER PROFILE. Figure3)
该数据表的模型线
文件文字版本
ECS-CTA SMD Ceramic Resonator POCKET TAPE DIMENSIONS (mm) DEVELOPED FREQUENCIES SOLDER PROFILE
1.84 MHz Peak solder Temp +260°C Max 10 sec Max. 2.00 MHz 2 Cycles Max. 3.58 MHz MSL 1, Lead Finish Sn/Ag 3.64 MHz 3.68 MHz 4.00 MHz 4.19 MHz 4.91 MHz 5.00 MHz 6.00 MHz 8.00 MHz 10.00 MHz 12.00 MHz
Figure3)
Suggested Reflow Profile Note: ECS does not approve the use of its products in Automotive, Military, Avionics, Life Sustaining or Life Support systems or any other related medical applications without written approval from ECS Inc.
15351 West 109th Street
|
Lenexa, KS 66219
|
Phone: 913.782.7787
|
Fax: 913.782.6991
|
www.ecsxtal.com
