Datasheet KSD1691 (Fairchild) - 4
| 制造商 | Fairchild |
| 描述 | NPN Epitaxial Silicon Transistor |
| 页数 / 页 | 5 / 4 — KSD169. Package Demensions |
| 文件格式/大小 | PDF / 61 Kb |
| 文件语言 | 英语 |
KSD169. Package Demensions
该数据表的模型线
文件文字版本

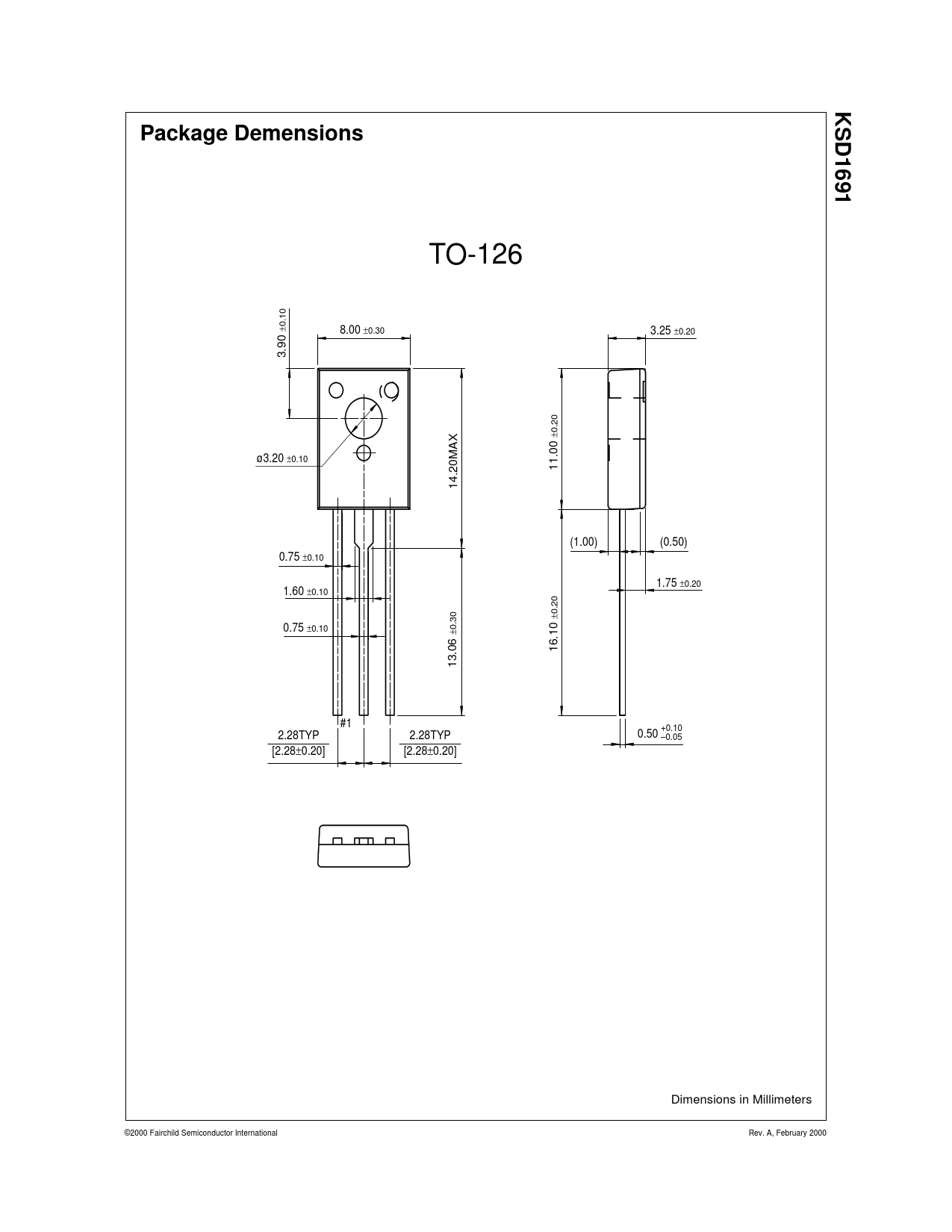

KSD169 Package Demensions 1
TO-126 ±0.10 8.00 ±0.30 3.25 ±0.20 3.90 ±0.20 ø3.20 ±0.10 11.00 14.20MAX (1.00) (0.50) 0.75 ±0.10 1.75 ±0.20 1.60 ±0.10 ±0.20 0.75 ±0.10 ±0.30 16.10 13.06 #1 +0.10 2.28TYP 2.28TYP 0.50 –0.05 [2.28±0.20] [2.28±0.20] Dimensions in Millimeters ©2000 Fairchild Semiconductor International Rev. A, February 2000
