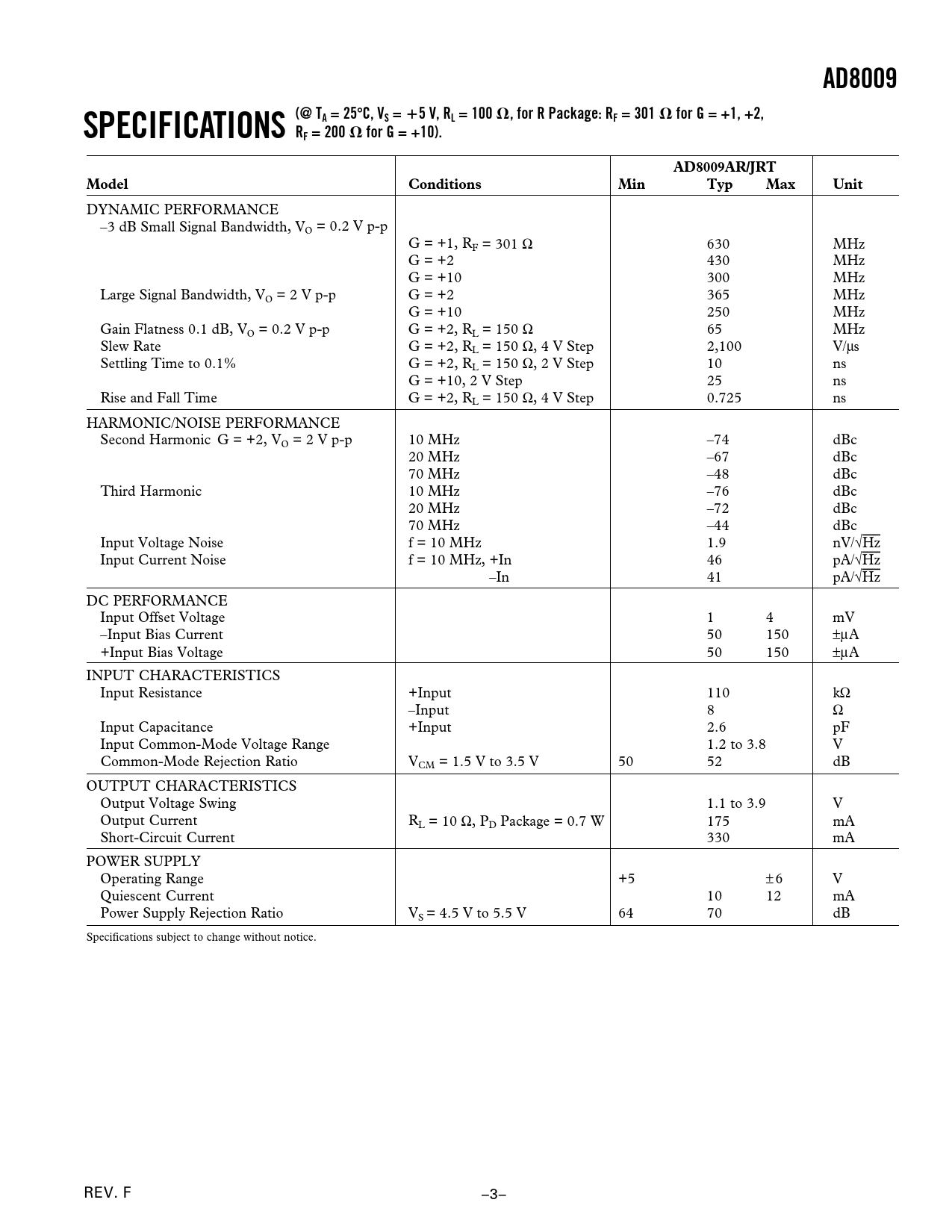

AD8009 SPECIFICATIONS (@ TA = 25 C, VS = 5 V, RL = 100 , for R Package: RF = 301 for G = +1, +2, RF = 200 for G = +10). AD8009AR/JRT Model Conditions Min Typ Max Unit
