Datasheet IL300 (Vishay)
| 制造商 | Vishay |
| 描述 | Linear Optocoupler, High Gain Stability, Wide Bandwidth |
| 页数 / 页 | 11 / 1 — IL300. Linear Optocoupler, High Gain Stability, Wide Bandwidth. FEATURES. … |
| 文件格式/大小 | PDF / 191 Kb |
| 文件语言 | 英语 |
IL300. Linear Optocoupler, High Gain Stability, Wide Bandwidth. FEATURES. DESCRIPTION. APPLICATIONS. AGENCY APPROVALS
该数据表的模型线
- IL300 IL300-DEFG IL300-DEFG-X001 IL300-DEFG-X006 IL300-DEFG-X007 IL300-DEFG-X007T IL300-DEFG-X009 IL300-DEFG-X009T IL300-DEFG-X016 IL300-DEFG-X017 IL300-DEFG-X017T IL300-E IL300-E-X001 IL300-E-X006 IL300-E-X007T IL300-E-X009T IL300-E-X017T IL300-EF IL300-EF-X001 IL300-EF-X006 IL300-EF-X007 IL300-EF-X007T IL300-EF-X009 IL300-EF-X009T IL300-EF-X016 IL300-EF-X017 IL300-EF-X017T IL300-F IL300-F-X001 IL300-F-X006 IL300-F-X007 IL300-F-X009 IL300-F-X009T IL300-F-X016 IL300-F-X017 IL300-F-X017T IL300-F-X019 IL300-F-X019T IL300-X001 IL300-X006 IL300-X007 IL300-X007T IL300-X009 IL300-X009T IL300-X016 IL300-X017
文件文字版本

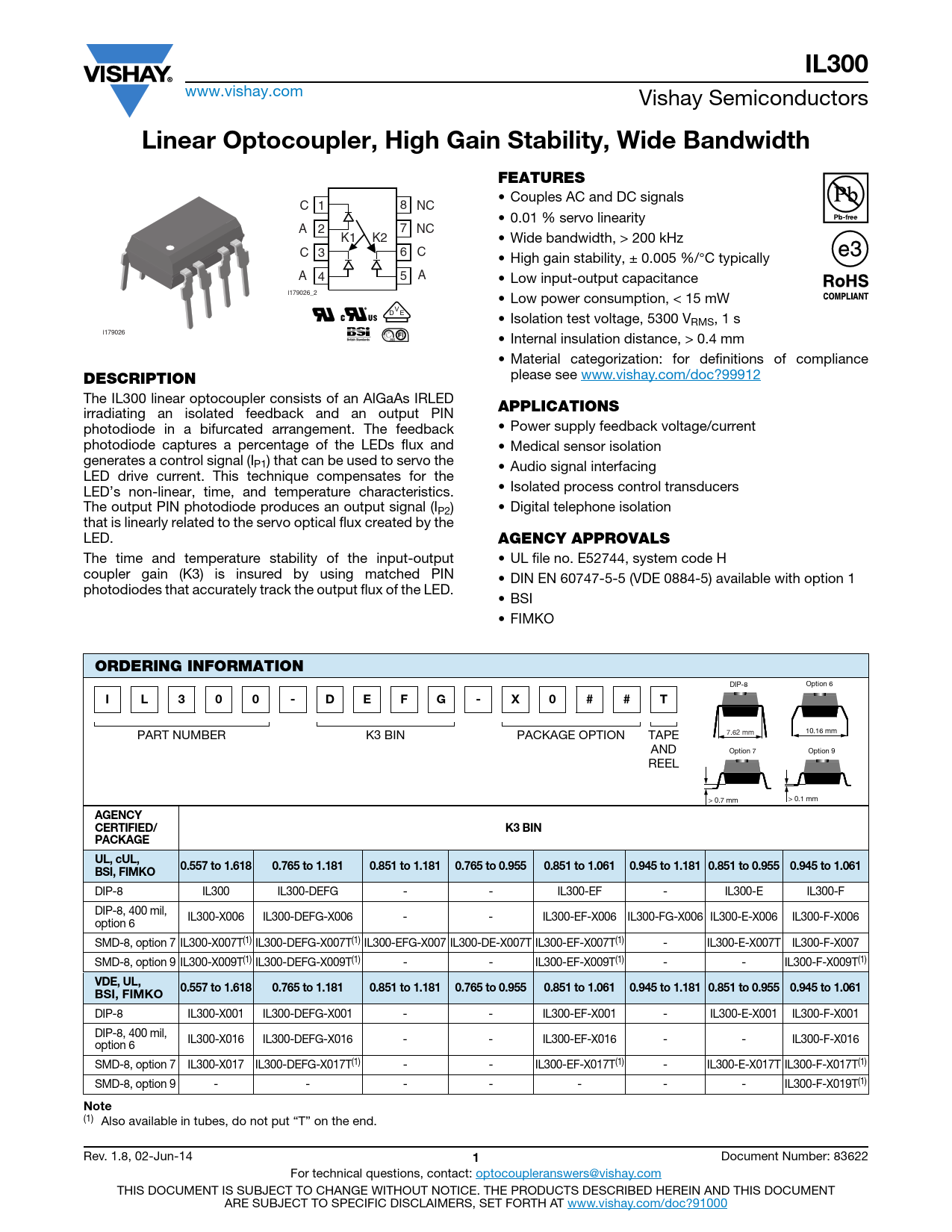

IL300
www.vishay.com Vishay Semiconductors
Linear Optocoupler, High Gain Stability, Wide Bandwidth FEATURES
• Couples AC and DC signals C 1 8 NC • 0.01 % servo linearity A 2 7 NC K1 K2 • Wide bandwidth, > 200 kHz C 3 6 C • High gain stability, ± 0.005 %/°C typically A 4 5 A • Low input-output capacitance i179026_2 • Low power consumption, < 15 mW V D E • Isolation test voltage, 5300 VRMS, 1 s i179026 • Internal insulation distance, > 0.4 mm • Material categorization: for definitions of compliance
DESCRIPTION
please see www.vishay.com/doc?99912 The IL300 linear optocoupler consists of an AlGaAs IRLED
APPLICATIONS
irradiating an isolated feedback and an output PIN photodiode in a bifurcated arrangement. The feedback • Power supply feedback voltage/current photodiode captures a percentage of the LEDs flux and • Medical sensor isolation generates a control signal (IP1) that can be used to servo the • Audio signal interfacing LED drive current. This technique compensates for the LED’s non-linear, time, and temperature characteristics. • Isolated process control transducers The output PIN photodiode produces an output signal (IP2) • Digital telephone isolation that is linearly related to the servo optical flux created by the LED.
AGENCY APPROVALS
The time and temperature stability of the input-output • UL file no. E52744, system code H coupler gain (K3) is insured by using matched PIN • DIN EN 60747-5-5 (VDE 0884-5) available with option 1 photodiodes that accurately track the output flux of the LED. • BSI • FIMKO
ORDERING INFORMATION
DIP-8 Option 6
I L 3 0 0 - D E F G - X 0 # # T
PART NUMBER K3 BIN PACKAGE OPTION TAPE 10.16 mm 7.62 mm AND Option 7 Option 9 REEL > 0.7 mm > 0.1 mm
AGENCY
CERTIFIED/
K3 BIN PACKAGE UL, cUL,
0.557 to 1.618 0.765 to 1.181 0.851 to 1.181 0.765 to 0.955 0.851 to 1.061 0.945 to 1.181 0.851 to 0.955 0.945 to 1.061 BSI, FIMKO
DIP-8 IL300 IL300-DEFG - - IL300-EF - IL300-E IL300-F DIP-8, 400 mil, IL300-X006 IL300-DEFG-X006 - - IL300-EF-X006 IL300-FG-X006 IL300-E-X006 IL300-F-X006 option 6 SMD-8, option 7 IL300-X007T(1) IL300-DEFG-X007T(1) IL300-EFG-X007 IL300-DE-X007T IL300-EF-X007T(1) - IL300-E-X007T IL300-F-X007 SMD-8, option 9 IL300-X009T(1) IL300-DEFG-X009T(1) - - IL300-EF-X009T(1) - - IL300-F-X009T(1)
VDE, UL,
0.557 to 1.618 0.765 to 1.181 0.851 to 1.181 0.765 to 0.955 0.851 to 1.061 0.945 to 1.181 0.851 to 0.955 0.945 to 1.061 BSI, FIMKO
DIP-8 IL300-X001 IL300-DEFG-X001 - - IL300-EF-X001 - IL300-E-X001 IL300-F-X001 DIP-8, 400 mil, IL300-X016 IL300-DEFG-X016 - - IL300-EF-X016 - - IL300-F-X016 option 6 SMD-8, option 7 IL300-X017 IL300-DEFG-X017T(1) - - IL300-EF-X017T(1) - IL300-E-X017T IL300-F-X017T(1) SMD-8, option 9 - - - - - - - IL300-F-X019T(1)
Note
(1) Also available in tubes, do not put “T” on the end. Rev. 1.8, 02-Jun-14
1
Document Number: 83622 For technical questions, contact: optocoupleranswers@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
