Datasheet LTC3107 (Analog Devices) - 8
| 制造商 | Analog Devices |
| 描述 | Ultra-Low Voltage Energy Harvester and Primary Battery Life Extender |
| 页数 / 页 | 24 / 8 — block DiagraM |
| 文件格式/大小 | PDF / 376 Kb |
| 文件语言 | 英语 |
block DiagraM
该数据表的模型线
文件文字版本
LTC3107

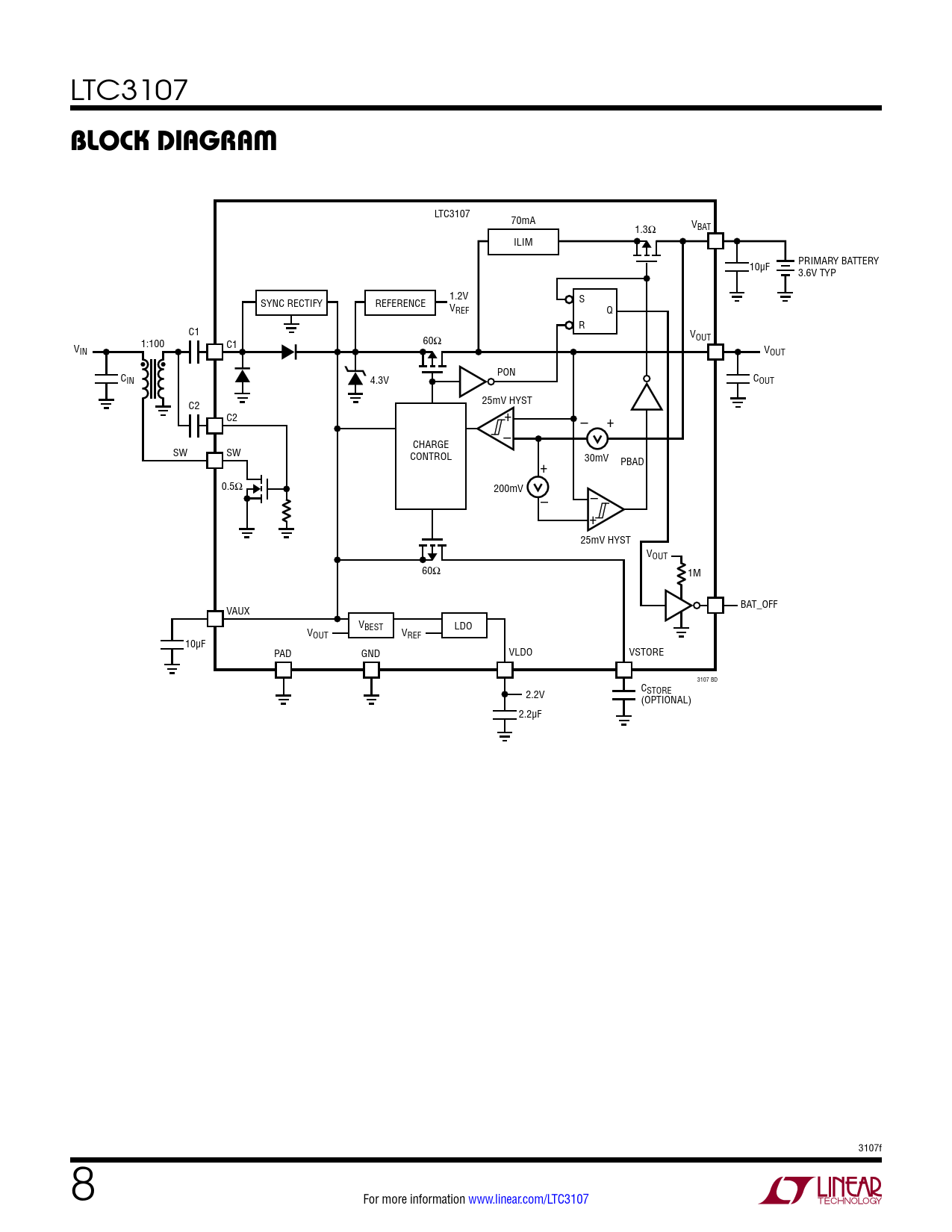

block DiagraM
LTC3107 70mA VBAT 1.3Ω ILIM PRIMARY BATTERY 10µF 3.6V TYP 1.2V SYNC RECTIFY REFERENCE S VREF Q C1 R VOUT 1:100 C1 60Ω VIN VOUT C PON IN 4.3V COUT C2 25mV HYST C2 + – + – CHARGE SW SW CONTROL 30mV PBAD + 0.5Ω 200mV – – + 25mV HYST VOUT 60Ω 1M BAT_OFF VAUX V V BEST LDO OUT VREF 10µF PAD GND VLDO VSTORE 3107 BD CSTORE 2.2V (OPTIONAL) 2.2µF 3107f 8 For more information www.linear.com/LTC3107 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Typical Application Related Parts
