Datasheet AD8655, AD8656 (Analog Devices) - 5
| 制造商 | Analog Devices |
| 描述 | Low Noise, Precision CMOS Dual Amplifier |
| 页数 / 页 | 20 / 5 — Data Sheet. AD8655/AD8656. ABSOLUTE MAXIMUM RATINGS Table 3. Table 4. … |
| 修订版 | E |
| 文件格式/大小 | PDF / 395 Kb |
| 文件语言 | 英语 |

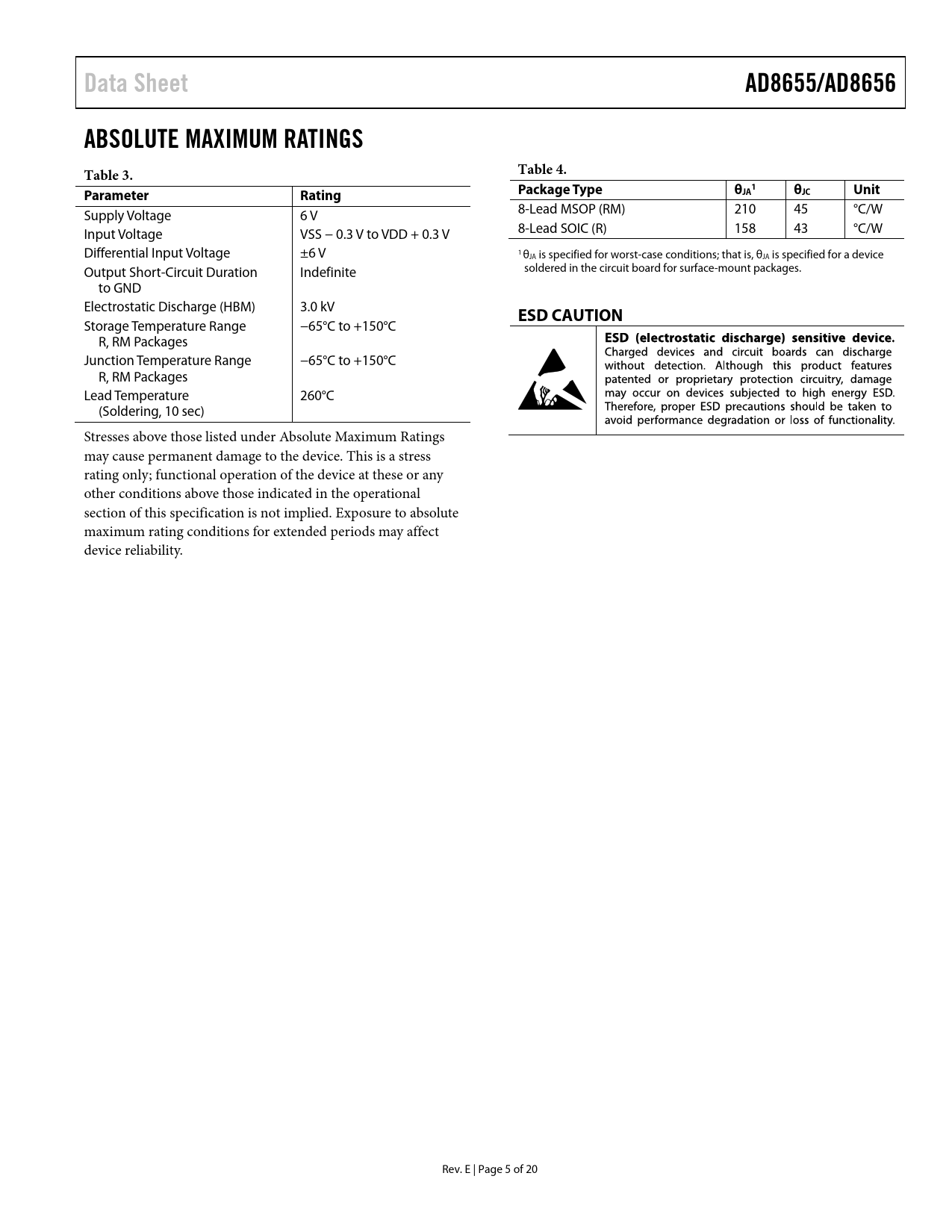

Data Sheet. AD8655/AD8656. ABSOLUTE MAXIMUM RATINGS Table 3. Table 4. Parameter. Rating. Package Type. θJA. θJC. Unit. ESD CAUTION
该数据表的模型线
文件文字版本
link to page 5
Data Sheet AD8655/AD8656 ABSOLUTE MAXIMUM RATINGS Table 3. Table 4. 1 Parameter Rating Package Type θJA θJC Unit
Supply Voltage 6 V 8-Lead MSOP (RM) 210 45 °C/W Input Voltage VSS − 0.3 V to VDD + 0.3 V 8-Lead SOIC (R) 158 43 °C/W Differential Input Voltage ±6 V 1 θJA is specified for worst-case conditions; that is, θJA is specified for a device Output Short-Circuit Duration Indefinite soldered in the circuit board for surface-mount packages. to GND Electrostatic Discharge (HBM) 3.0 kV
ESD CAUTION
Storage Temperature Range −65°C to +150°C R, RM Packages Junction Temperature Range −65°C to +150°C R, RM Packages Lead Temperature 260°C (Soldering, 10 sec) Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. E | Page 5 of 20 Document Outline Features Applications Pin Configurations General Description Table of Contents Revision History Specifications Absolute Maximum Ratings ESD Caution Typical Performance Characteristics Theory of Operation Applications Information Input Overvoltage Protection Input Capacitance Driving Capacitive Loads THD Readings vs. Common-Mode Voltage Layout, Grounding, and Bypassing Considerations Power Supply Bypassing Grounding Leakage Currents Outline Dimensions Ordering Guide Automotive Products
