Datasheet 1N4001, 1N4002, 1N4003, 1N4004, 1N4005, 1N4006, 1N4007 (ON Semiconductor) - 4
| 制造商 | ON Semiconductor |
| 描述 | Axial Lead Standard Recovery Rectifiers |
| 页数 / 页 | 7 / 4 — 1N4001, 1N4002, 1N4003, 1N4004, 1N4005, 1N4006, 1N4007. NOTE 1. − AMBIENT … |
| 文件格式/大小 | PDF / 99 Kb |
| 文件语言 | 英语 |
1N4001, 1N4002, 1N4003, 1N4004, 1N4005, 1N4006, 1N4007. NOTE 1. − AMBIENT MOUNTING DATA. TYPICAL VALUES FOR. JA IN STILL AIR
该数据表的模型线
文件文字版本

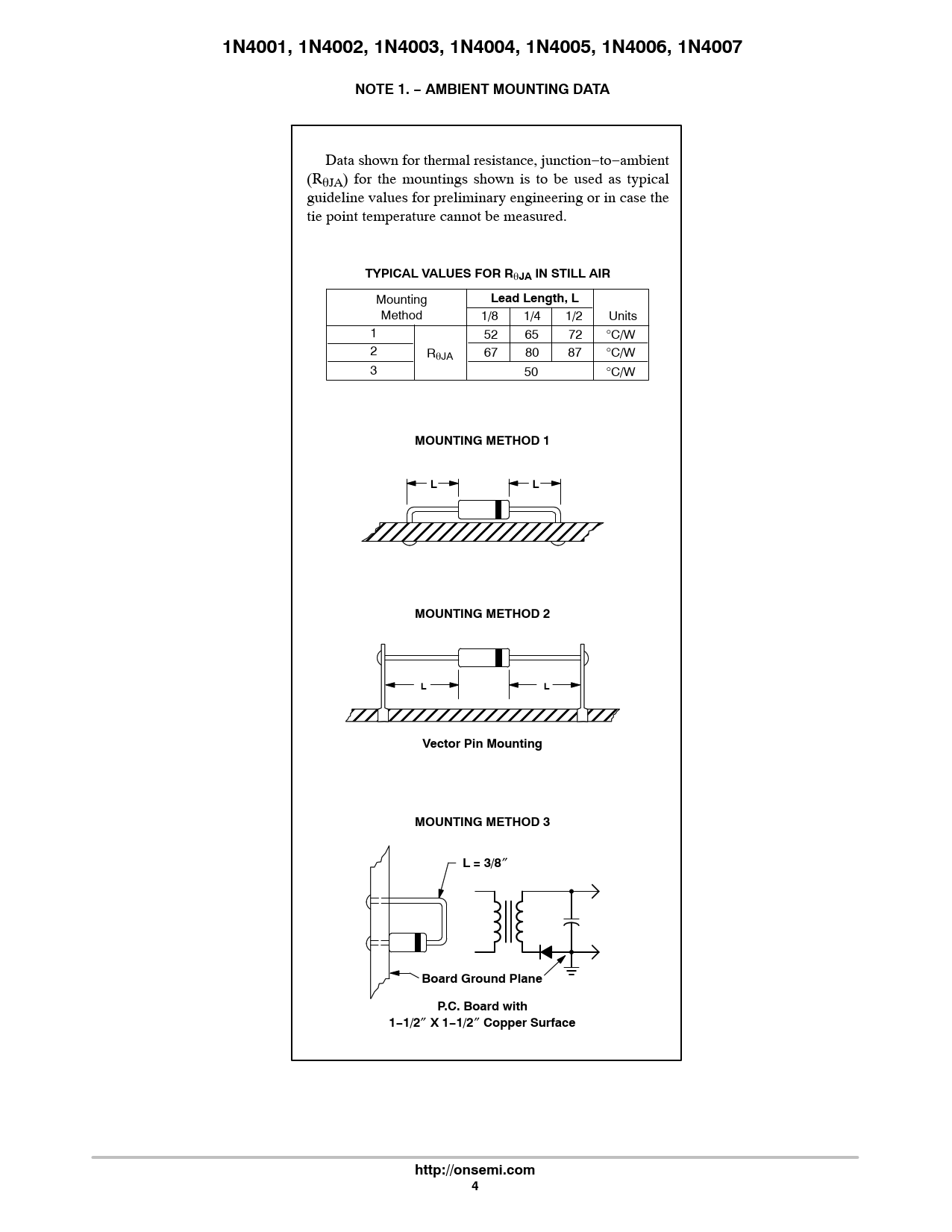

1N4001, 1N4002, 1N4003, 1N4004, 1N4005, 1N4006, 1N4007 NOTE 1. − AMBIENT MOUNTING DATA
Data shown for thermal resistance, junction−to−ambient (RqJA) for the mountings shown is to be used as typical guideline values for preliminary engineering or in case the tie point temperature cannot be measured.
TYPICAL VALUES FOR R
q
JA IN STILL AIR
Mounting
Lead Length, L
Method 1/8 1/4 1/2 Units 1 52 65 72 °C/W 2 R 67 qJA 80 87 °C/W 3 50 °C/W
MOUNTING METHOD 1 L L
ÉÉÉÉÉÉÉÉÉÉÉ ÉÉÉÉÉÉÉÉÉÉÉ
MOUNTING METHOD 2 L L
ÉÉÉÉÉÉÉÉÉÉÉÉ ÉÉÉÉÉÉÉÉÉÉÉÉ
Vector Pin Mounting MOUNTING METHOD 3
ÉÉ
L = 3/8
″ ÉÉ ÉÉ ÉÉ ÉÉ
Board Ground Plane
ÉÉ ÉÉ
P.C. Board with 1−1/2 X 1
″
−1/2 Copper Surface
″
http://onsemi.com 4
Data shown for thermal resistance, junction−to−ambient (RqJA) for the mountings shown is to be used as typical guideline values for preliminary engineering or in case the tie point temperature cannot be measured.
TYPICAL VALUES FOR R
q
JA IN STILL AIR
Mounting
Lead Length, L
Method 1/8 1/4 1/2 Units 1 52 65 72 °C/W 2 R 67 qJA 80 87 °C/W 3 50 °C/W
MOUNTING METHOD 1 L L
ÉÉÉÉÉÉÉÉÉÉÉ ÉÉÉÉÉÉÉÉÉÉÉ
MOUNTING METHOD 2 L L
ÉÉÉÉÉÉÉÉÉÉÉÉ ÉÉÉÉÉÉÉÉÉÉÉÉ
Vector Pin Mounting MOUNTING METHOD 3
ÉÉ
L = 3/8
″ ÉÉ ÉÉ ÉÉ ÉÉ
Board Ground Plane
ÉÉ ÉÉ
P.C. Board with 1−1/2 X 1
″
−1/2 Copper Surface
″
http://onsemi.com 4
