Datasheet NTD4815NH (ON Semiconductor) - 6
| 制造商 | ON Semiconductor |
| 描述 | Power MOSFET 30 V, 35 A, Single N-Channel, DPAK/IPAK |
| 页数 / 页 | 8 / 6 — NTD4815NH. TYPICAL PERFORMANCE CURVES. Figure 13. Avalanche … |
| 文件格式/大小 | PDF / 297 Kb |
| 文件语言 | 英语 |

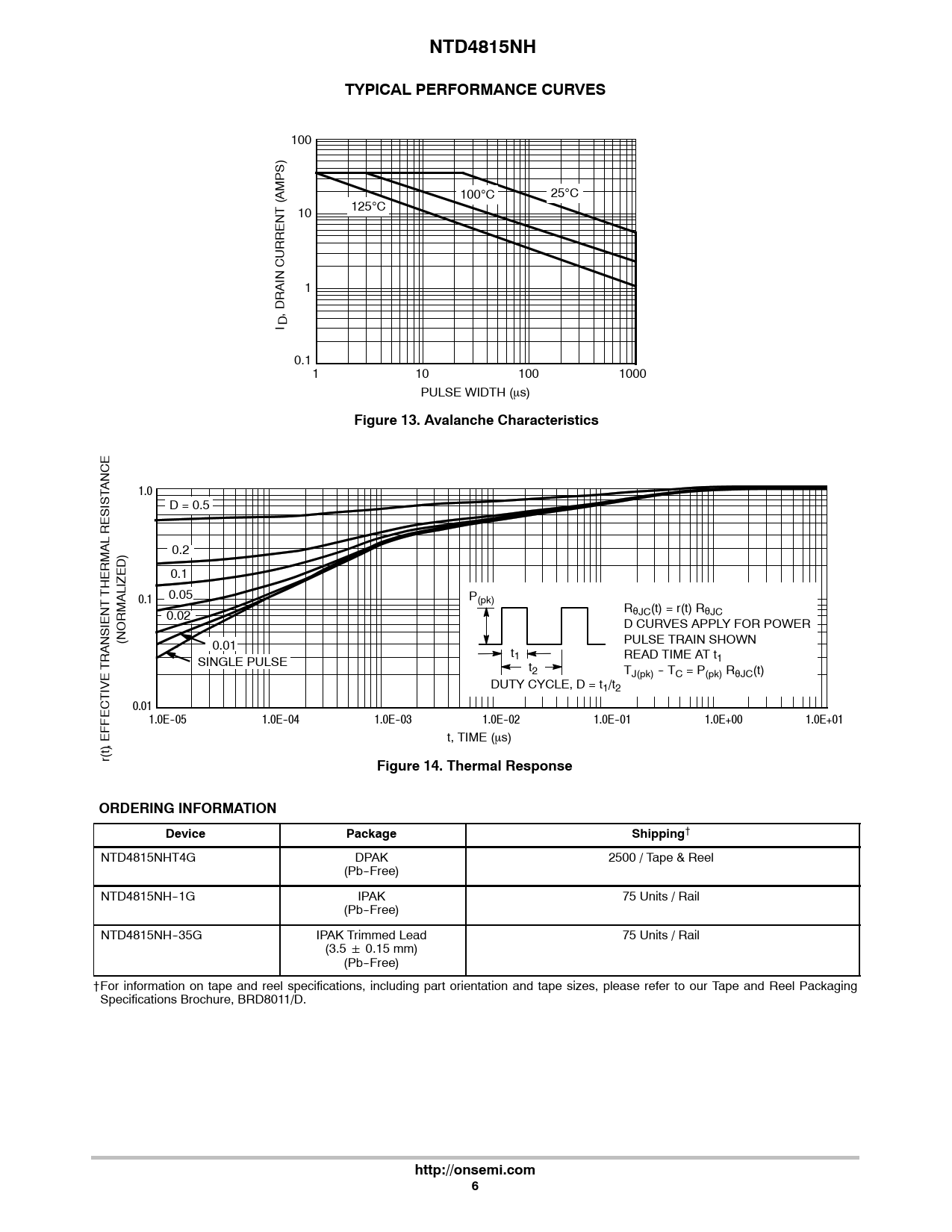

NTD4815NH. TYPICAL PERFORMANCE CURVES. Figure 13. Avalanche Characteristics. Figure 14. Thermal Response. ORDERING INFORMATION
文件文字版本
NTD4815NH TYPICAL PERFORMANCE CURVES
100 (AMPS) 100°C 25°C 10 125°C CURRENT 1 ,DRAIN I D 0.11 10 100 1000 PULSE WIDTH (ms)
Figure 13. Avalanche Characteristics
ANCE 1.0 D = 0.5 ESIST R 0.2 0.1 THERMAL 0.1 0.05 P(pk) MALIZED) R R 0.02 θJC(t) = r(t) RθJC D CURVES APPLY FOR POWER (NO 0.01 PULSE TRAIN SHOWN RANSIENT t1 READ TIME AT t T SINGLE PULSE 1 t2 TJ(pk) - TC = P(pk) RθJC(t) DUTY CYCLE, D = t1/t2 0.011.0E-05 1.0E- 04 1.0E- 03 1.0E- 02 1.0E- 01 1.0E+00 1.0E+01 ,EFFECTIVE t, TIME (ms) r(t)
Figure 14. Thermal Response ORDERING INFORMATION Device Package Shipping
† NTD4815NHT4G DPAK 2500 / Tape & Reel (Pb- Free) NTD4815NH- 1G IPAK 75 Units / Rail (Pb- Free) NTD4815NH- 35G IPAK Trimmed Lead 75 Units / Rail (3.5 0.15 mm) (Pb- Free) †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.
http://onsemi.com 6
