Datasheet LTC1440, LTC1441, LTC1442 (Analog Devices) - 4
| 制造商 | Analog Devices |
| 描述 | Ultralow Power Single/Dual Comparator with Reference |
| 页数 / 页 | 16 / 4 — ELECTRICAL CHARACTERISTICS The. denotes the specifications which apply … |
| 文件格式/大小 | PDF / 259 Kb |
| 文件语言 | 英语 |
ELECTRICAL CHARACTERISTICS The. denotes the specifications which apply over the full operating
该数据表的模型线
- LTC1440CDD#PBF LTC1440CDD#PBF LTC1440CDD#TRPBF LTC1440CDD#TRPBF LTC1440CMS8#PBF LTC1440CMS8#PBF LTC1440CMS8#TRPBF LTC1440CMS8#TRPBF LTC1440CN8#PBF LTC1440CN8#PBF LTC1440CS8#PBF LTC1440CS8#PBF LTC1440CS8#TRPBF LTC1440CS8#TRPBF LTC1440IDD#PBF LTC1440IDD#PBF LTC1440IDD#TRPBF LTC1440IDD#TRPBF LTC1440IMS8#PBF LTC1440IMS8#PBF LTC1440IMS8#TRPBF LTC1440IMS8#TRPBF LTC1440IN8#PBF LTC1440IN8#PBF LTC1440IS8#PBF LTC1440IS8#PBF LTC1440IS8#TRPBF LTC1440IS8#TRPBF
文件文字版本
LTC1440/LTC1441/LTC1442

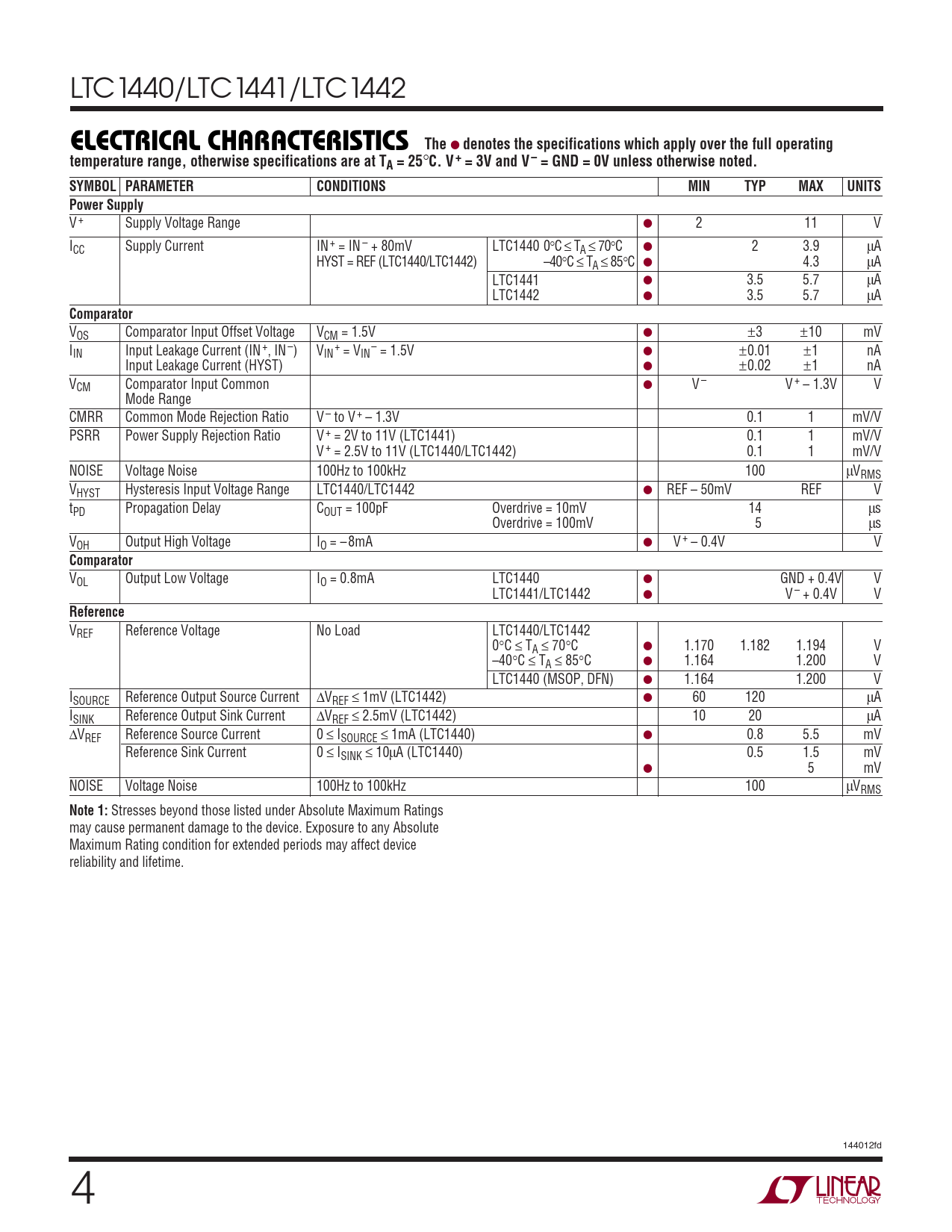

ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. V+ = 3V and V– = GND = 0V unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS Power Supply
V + Supply Voltage Range ● 2 11 V ICC Supply Current IN + = IN – + 80mV LTC1440 0°C ≤ TA ≤ 70°C ● 2 3.9 µA HYST = REF (LTC1440/LTC1442) –40°C ≤ TA ≤ 85°C ● 4.3 µA LTC1441 ● 3.5 5.7 µA LTC1442 ● 3.5 5.7 µA
Comparator
VOS Comparator Input Offset Voltage VCM = 1.5V ● ±3 ±10 mV I + – IN Input Leakage Current (IN +, IN –) VIN = VIN = 1.5V ● ±0.01 ±1 nA Input Leakage Current (HYST) ● ±0.02 ±1 nA VCM Comparator Input Common ● V – V + – 1.3V V Mode Range CMRR Common Mode Rejection Ratio V – to V + – 1.3V 0.1 1 mV/V PSRR Power Supply Rejection Ratio V + = 2V to 11V (LTC1441) 0.1 1 mV/V V + = 2.5V to 11V (LTC1440/LTC1442) 0.1 1 mV/V NOISE Voltage Noise 100Hz to 100kHz 100 µVRMS VHYST Hysteresis Input Voltage Range LTC1440/LTC1442 ● REF – 50mV REF V tPD Propagation Delay COUT = 100pF Overdrive = 10mV 14 µs Overdrive = 100mV 5 µs VOH Output High Voltage IO = – 8mA ● V + – 0.4V V
Comparator
VOL Output Low Voltage IO = 0.8mA LTC1440 ● GND + 0.4V V LTC1441/LTC1442 ● V – + 0.4V V
Reference
VREF Reference Voltage No Load LTC1440/LTC1442 0°C ≤ TA ≤ 70°C ● 1.170 1.182 1.194 V –40°C ≤ TA ≤ 85°C ● 1.164 1.200 V LTC1440 (MSOP, DFN) ● 1.164 1.200 V ISOURCE Reference Output Source Current ∆VREF ≤ 1mV (LTC1442) ● 60 120 µA ISINK Reference Output Sink Current ∆VREF ≤ 2.5mV (LTC1442) 10 20 µA ∆VREF Reference Source Current 0 ≤ ISOURCE ≤ 1mA (LTC1440) ● 0.8 5.5 mV Reference Sink Current 0 ≤ ISINK ≤ 10µA (LTC1440) 0.5 1.5 mV ● 5 mV NOISE Voltage Noise 100Hz to 100kHz 100 µVRMS
