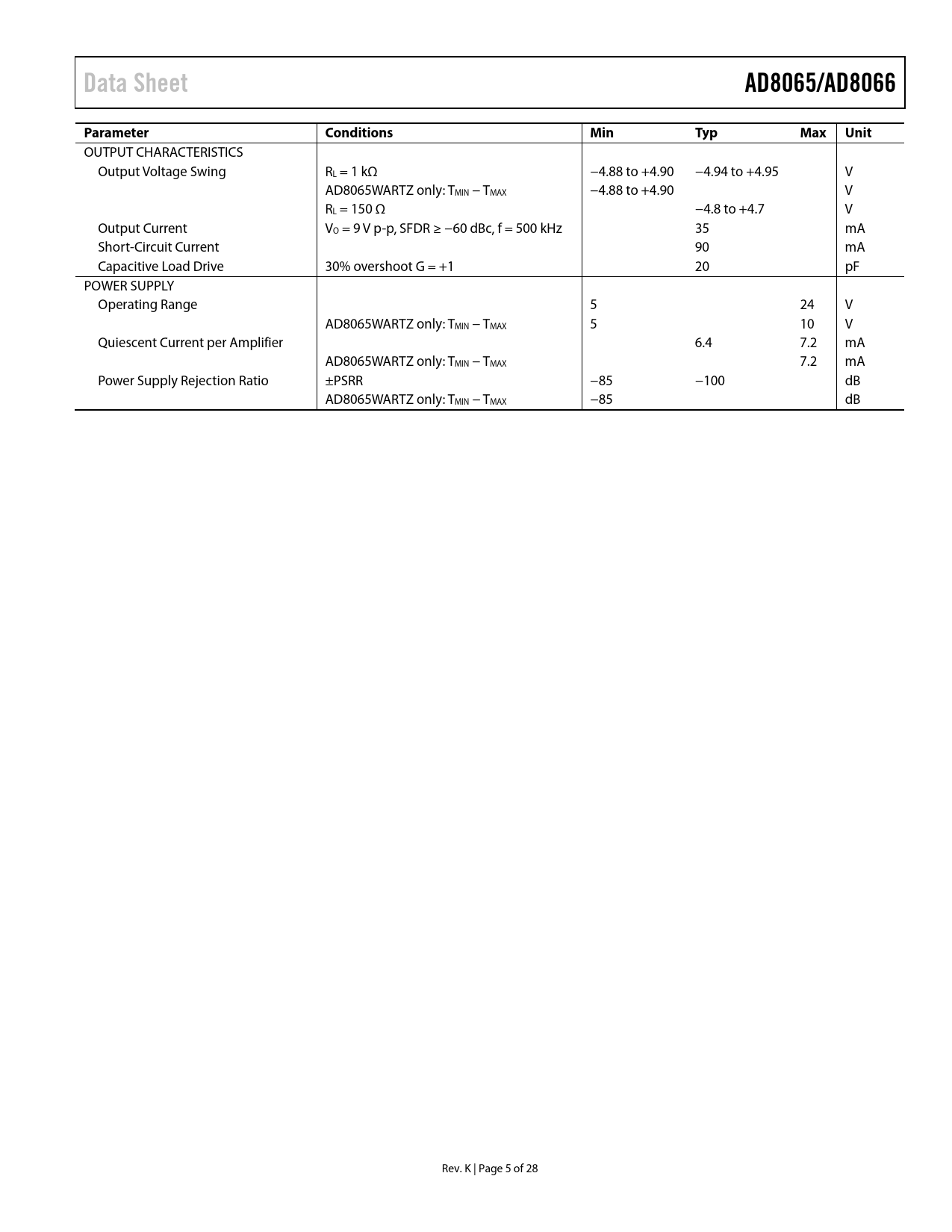

Data Sheet AD8065/AD8066 Parameter Conditions Min Typ Max Unit
OUTPUT CHARACTERISTICS Output Voltage Swing RL = 1 kΩ −4.88 to +4.90 −4.94 to +4.95 V AD8065WARTZ only: TMIN − TMAX −4.88 to +4.90 V RL = 150 Ω −4.8 to +4.7 V Output Current VO = 9 V p-p, SFDR ≥ −60 dBc, f = 500 kHz 35 mA Short-Circuit Current 90 mA Capacitive Load Drive 30% overshoot G = +1 20 pF POWER SUPPLY Operating Range 5 24 V AD8065WARTZ only: TMIN − TMAX 5 10 V Quiescent Current per Amplifier 6.4 7.2 mA AD8065WARTZ only: TMIN − TMAX 7.2 mA Power Supply Rejection Ratio ±PSRR −85 −100 dB AD8065WARTZ only: TMIN − TMAX −85 dB Rev. K | Page 5 of 28 Document Outline FEATURES APPLICATIONS CONNECTION DIAGRAMS GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS ±5 V SPECIFICATIONS ±12 V SPECIFICATIONS +5 V ABSOLUTE MAXIMUM RATINGS MAXIMUM POWER DISSIPATION OUTPUT SHORT CIRCUIT ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS SOIC-8 Pinout THEORY OF OPERATION CLOSED-LOOP FREQUENCY RESPONSE NONINVERTING CLOSED-LOOP FREQUENCY RESPONSE INVERTING CLOSED-LOOP FREQUENCY RESPONSE WIDEBAND OPERATION INPUT PROTECTION THERMAL CONSIDERATIONS INPUT AND OUTPUT OVERLOAD BEHAVIOR LAYOUT, GROUNDING, AND BYPASSING CONSIDERATIONS POWER SUPPLY BYPASSING GROUNDING LEAKAGE CURRENTS INPUT CAPACITANCE OUTPUT CAPACITANCE INPUT-TO-OUTPUT COUPLING WIDEBAND PHOTODIODE PREAMP HIGH SPEED JFET INPUT INSTRUMENTATION AMPLIFIER VIDEO BUFFER OUTLINE DIMENSIONS ORDERING GUIDE AUTOMOTIVE PRODUCTS
