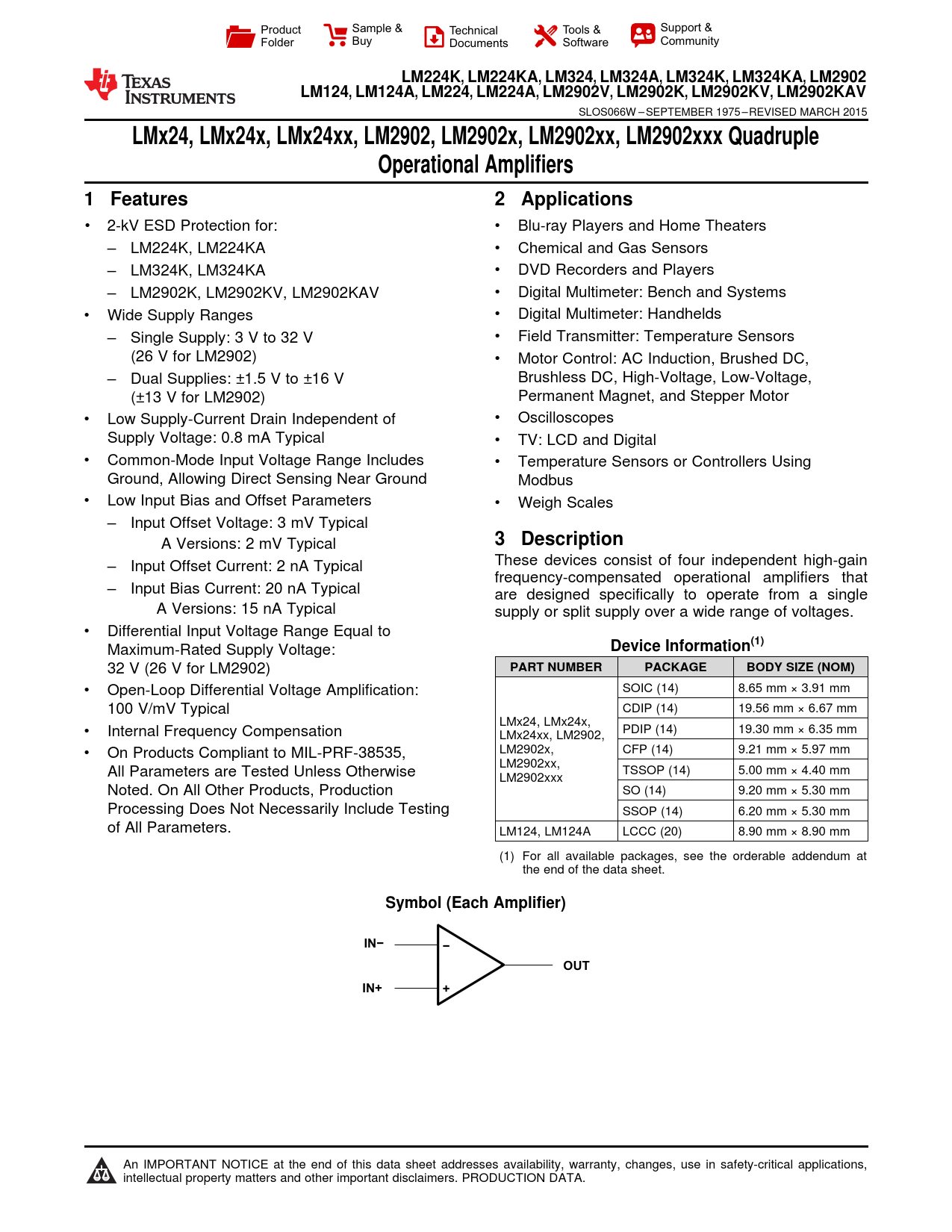

link to page 15 link to page 15 link to page 15 link to page 15 link to page 15 link to page 1 Product Sample & Technical Tools & Support & Folder Buy Documents Software Community LM224K, LM224KA, LM324, LM324A,LM324K,LM324KA, LM2902LM124, LM124A, LM224, LM224A,LM2902V, LM2902K, LM2902KV, LM2902KAV SLOS066W – SEPTEMBER 1975 – REVISED MARCH 2015 LMx24, LMx24x, LMx24xx, LM2902, LM2902x, LM2902xx, LM2902xxx QuadrupleOperational Amplifiers1 Features2 Applications • 2-kV ESD Protection for: • Blu-ray Players and Home Theaters 1 – LM224K, LM224KA • Chemical and Gas Sensors – LM324K, LM324KA • DVD Recorders and Players – LM2902K, LM2902KV, LM2902KAV • Digital Multimeter: Bench and Systems • Wide Supply Ranges • Digital Multimeter: Handhelds – Single Supply: 3 V to 32 V • Field Transmitter: Temperature Sensors (26 V for LM2902) • Motor Control: AC Induction, Brushed DC, – Dual Supplies: ±1.5 V to ±16 V Brushless DC, High-Voltage, Low-Voltage, (±13 V for LM2902) Permanent Magnet, and Stepper Motor • Low Supply-Current Drain Independent of • Oscilloscopes Supply Voltage: 0.8 mA Typical • TV: LCD and Digital • Common-Mode Input Voltage Range Includes • Temperature Sensors or Controllers Using Ground, Allowing Direct Sensing Near Ground Modbus • Low Input Bias and Offset Parameters • Weigh Scales – Input Offset Voltage: 3 mV Typical 3 Description MM A Versions: 2 mV Typical These devices consist of four independent high-gain – Input Offset Current: 2 nA Typical frequency-compensated operational amplifiers that – Input Bias Current: 20 nA Typical are designed specifically to operate from a single MMA Versions: 15 nA Typical supply or split supply over a wide range of voltages. • Differential Input Voltage Range Equal to Device Information(1) Maximum-Rated Supply Voltage: 32 V (26 V for LM2902) PART NUMBERPACKAGEBODY SIZE (NOM) SOIC (14) 8.65 mm × 3.91 mm • Open-Loop Differential Voltage Amplification: 100 V/mV Typical CDIP (14) 19.56 mm × 6.67 mm LMx24, LMx24x, PDIP (14) 19.30 mm × 6.35 mm • Internal Frequency Compensation LMx24xx, LM2902, LM2902x, CFP (14) 9.21 mm × 5.97 mm • On Products Compliant to MIL-PRF-38535, LM2902xx, TSSOP (14) 5.00 mm × 4.40 mm All Parameters are Tested Unless Otherwise LM2902xxx Noted. On All Other Products, Production SO (14) 9.20 mm × 5.30 mm Processing Does Not Necessarily Include Testing SSOP (14) 6.20 mm × 5.30 mm of All Parameters. LM124, LM124A LCCC (20) 8.90 mm × 8.90 mm (1) For all available packages, see the orderable addendum at the end of the data sheet. Symbol (Each Amplifier)−IN−OUT+IN+ 1 An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, intellectual property matters and other important disclaimers. PRODUCTION DATA. Document Outline 1 Features 2 Applications 3 Description Table of Contents 4 Revision History 5 Pin Configuration and Functions 6 Specifications 6.1 Absolute Maximum Ratings 6.2 ESD Ratings 6.3 Recommended Operating Conditions 6.4 Thermal Information 6.5 Electrical Characteristics for LMx24 and LM324K 6.6 Electrical Characteristics for LM2902 and LM2902V 6.7 Electrical Characteristics for LMx24A and LM324KA 6.8 Operating Conditions 6.9 Typical Characteristics 7 Parameter Measurement Information 8 Detailed Description 8.1 Overview 8.2 Functional Block Diagram 8.3 Feature Description 8.3.1 Unity-Gain Bandwidth 8.3.2 Slew Rate 8.3.3 Input Common Mode Range 8.4 Device Functional Modes 9 Application and Implementation 9.1 Application Information 9.2 Typical Application 9.2.1 Design Requirements 9.2.2 Detailed Design Procedure 9.2.3 Application Curve 10 Power Supply Recommendations 11 Layout 11.1 Layout Guidelines 11.2 Layout Examples 12 Device and Documentation Support 12.1 Documentation Support 12.1.1 Related Documentation 12.2 Related Links 12.3 Trademarks 12.4 Electrostatic Discharge Caution 12.5 Glossary 13 Mechanical, Packaging, and Orderable Information
