LM193, LM293 , LM293A , LM393 , LM393A , LM2903 , LM2903V www.ti.com
SLCS005Z – OCTOBER 1979 – REVISED OCTOBER 2017

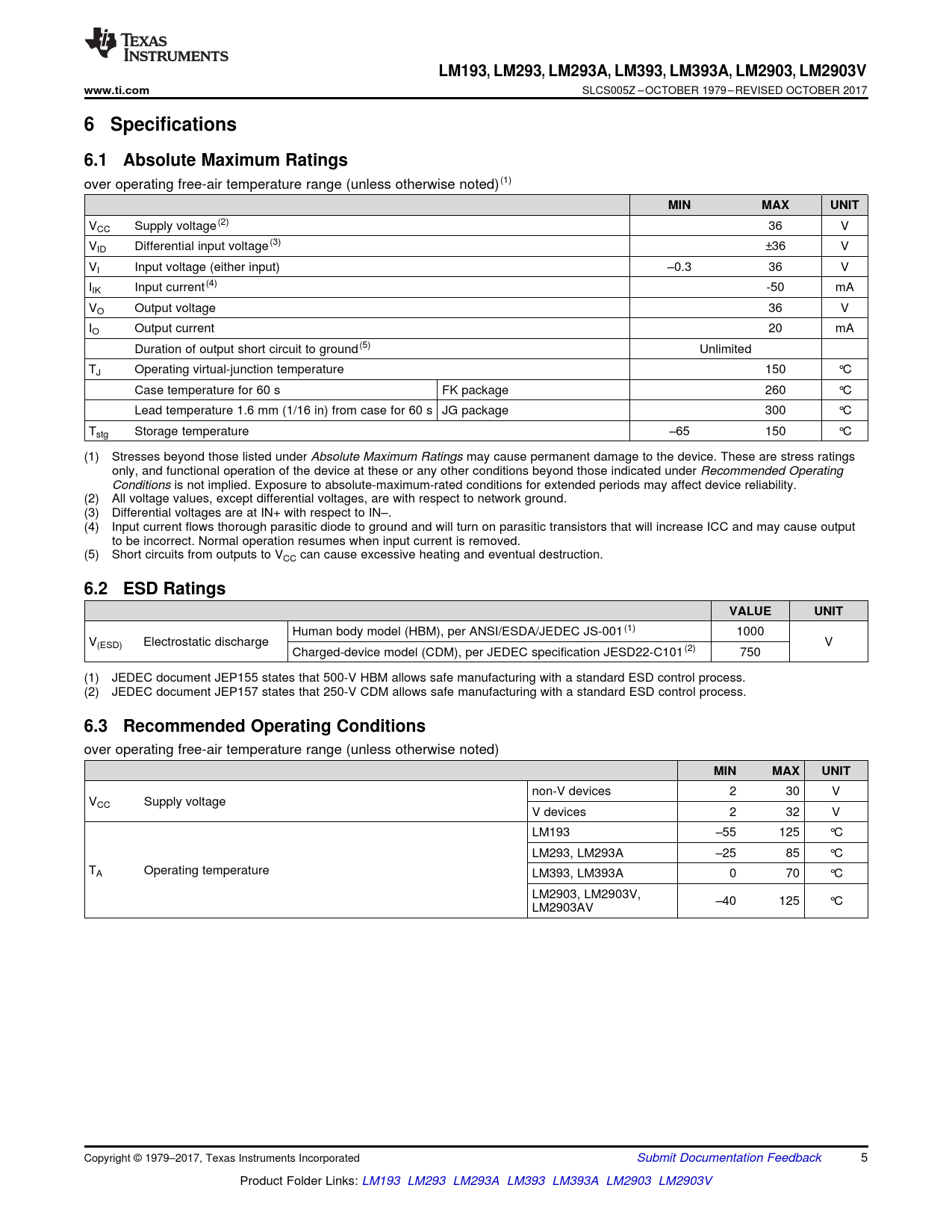

6 Specifications 6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted)(1)
MIN MAX UNIT
VCC Supply voltage(2) 36 V VID Differential input voltage(3) ±36 V VI Input voltage (either input) –0.3 36 V IIK Input current(4) -50 mA VO Output voltage 36 V IO Output current 20 mA Duration of output short circuit to ground(5) Unlimited TJ Operating virtual-junction temperature 150 °C Case temperature for 60 s FK package 260 °C Lead temperature 1.6 mm (1/16 in) from case for 60 s JG package 300 °C Tstg Storage temperature –65 150 °C (1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. (2) All voltage values, except differential voltages, are with respect to network ground. (3) Differential voltages are at IN+ with respect to IN–. (4) Input current flows thorough parasitic diode to ground and will turn on parasitic transistors that will increase ICC and may cause output to be incorrect. Normal operation resumes when input current is removed. (5) Short circuits from outputs to VCC can cause excessive heating and eventual destruction.
6.2 ESD Ratings VALUE UNIT
Human body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) 1000 V(ESD) Electrostatic discharge V Charged-device model (CDM), per JEDEC specification JESD22-C101(2) 750 (1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. (2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
6.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)
MIN MAX UNIT
non-V devices 2 30 V VCC Supply voltage V devices 2 32 V LM193 –55 125 °C LM293, LM293A –25 85 °C TA Operating temperature LM393, LM393A 0 70 °C LM2903, LM2903V, –40 125 °C LM2903AV Copyright © 1979–2017, Texas Instruments Incorporated Submit Documentation Feedback 5 Product Folder Links: LM193 LM293 LM293A LM393 LM393A LM2903 LM2903V Document Outline 1 Features 2 Applications 3 Description Table of Contents 4 Revision History 5 Pin Configuration and Functions 6 Specifications 6.1 Absolute Maximum Ratings 6.2 ESD Ratings 6.3 Recommended Operating Conditions 6.4 Thermal Information LM293, LM393, LM2903 (all suffixes) 6.5 Thermal Information LM193 6.6 Electrical Characteristics for LM193, LM293, and LM393 (without A suffix) 6.7 Electrical Characteristics for LM293A and LM393A 6.8 Electrical Characteristics for LM2903, LM2903V, and LM2903AV 6.9 Switching Characteristics (all devices) 6.10 Typical Characteristics 7 Detailed Description 7.1 Overview 7.2 Functional Block Diagram 7.3 Feature Description 7.4 Device Functional Modes 7.4.1 Voltage Comparison 8 Application and Implementation 8.1 Application Information 8.2 Typical Application 8.2.1 Design Requirements 8.2.2 Detailed Design Procedure 8.2.2.1 Input Voltage Range 8.2.2.2 Minimum Overdrive Voltage 8.2.2.3 Output and Drive Current 8.2.2.4 Response Time 8.2.3 Application Curves 9 Power Supply Recommendations 10 Layout 10.1 Layout Guidelines 10.2 Layout Example 11 Device and Documentation Support 11.1 Related Links 11.2 Receiving Notification of Documentation Updates 11.3 Community Resources 11.4 Trademarks 11.5 Electrostatic Discharge Caution 11.6 Glossary 12 Mechanical, Packaging, and Orderable Information
