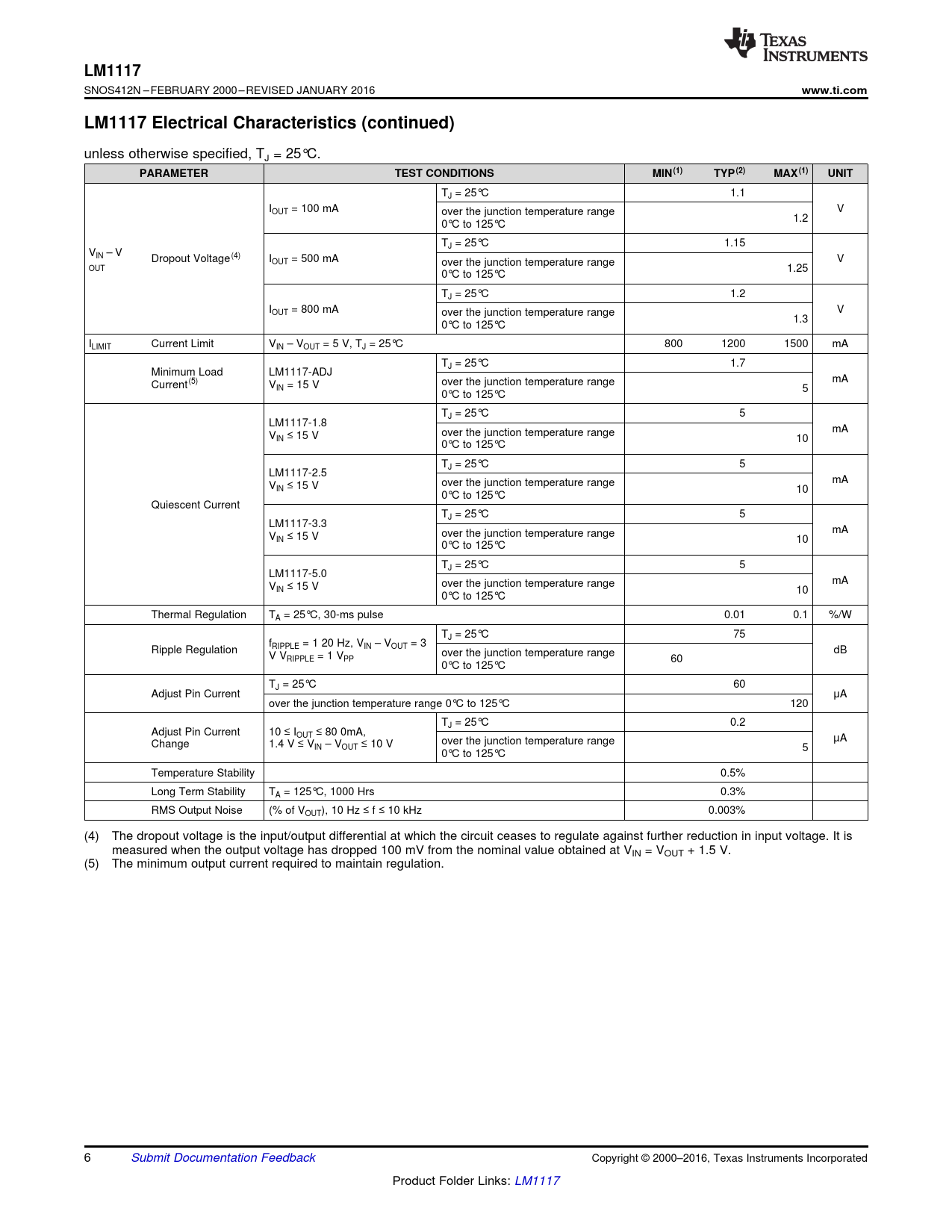

LM1117
SNOS412N – FEBRUARY 2000 – REVISED JANUARY 2016
www.ti.com LM1117 Electrical Characteristics (continued)
unless otherwise specified, TJ = 25°C.
PARAMETER TEST CONDITIONS MIN(1) TYP(2) MAX(1) UNIT
TJ = 25°C 1.1 IOUT = 100 mA V over the junction temperature range 1.2 0°C to 125°C TJ = 25°C 1.15 VIN – V Dropout Voltage(4) IOUT = 500 mA V over the junction temperature range OUT 1.25 0°C to 125°C TJ = 25°C 1.2 IOUT = 800 mA V over the junction temperature range 1.3 0°C to 125°C ILIMIT Current Limit VIN – VOUT = 5 V, TJ = 25°C 800 1200 1500 mA TJ = 25°C 1.7 Minimum Load LM1117-ADJ mA over the junction temperature range Current(5) VIN = 15 V 5 0°C to 125°C TJ = 25°C 5 LM1117-1.8 mA over the junction temperature range VIN ≤ 15 V 10 0°C to 125°C TJ = 25°C 5 LM1117-2.5 mA over the junction temperature range VIN ≤ 15 V 10 0°C to 125°C Quiescent Current TJ = 25°C 5 LM1117-3.3 mA over the junction temperature range VIN ≤ 15 V 10 0°C to 125°C TJ = 25°C 5 LM1117-5.0 mA over the junction temperature range VIN ≤ 15 V 10 0°C to 125°C Thermal Regulation TA = 25°C, 30-ms pulse 0.01 0.1 %/W TJ = 25°C 75 fRIPPLE = 1 20 Hz, VIN – VOUT = 3 Ripple Regulation dB over the junction temperature range V VRIPPLE = 1 VPP 60 0°C to 125°C TJ = 25°C 60 Adjust Pin Current μA over the junction temperature range 0°C to 125°C 120 TJ = 25°C 0.2 Adjust Pin Current 10 ≤ IOUT ≤ 80 0mA, µA over the junction temperature range Change 1.4 V ≤ VIN – VOUT ≤ 10 V 5 0°C to 125°C Temperature Stability 0.5% Long Term Stability TA = 125°C, 1000 Hrs 0.3% RMS Output Noise (% of VOUT), 10 Hz ≤ f ≤ 10 kHz 0.003% (4) The dropout voltage is the input/output differential at which the circuit ceases to regulate against further reduction in input voltage. It is measured when the output voltage has dropped 100 mV from the nominal value obtained at VIN = VOUT + 1.5 V. (5) The minimum output current required to maintain regulation. 6 Submit Documentation Feedback Copyright © 2000–2016, Texas Instruments Incorporated Product Folder Links: LM1117 Document Outline 1 Features 2 Applications 3 Description Table of Contents 4 Revision History 5 Pin Configuration and Functions 6 Specifications 6.1 Absolute Maximum Ratings 6.2 ESD Ratings 6.3 Recommended Operating Conditions 6.4 Thermal Information 6.5 LM1117 Electrical Characteristics 6.6 LM1117I Electrical Characteristics 6.7 Typical Characteristics 7 Detailed Description 7.1 Overview 7.2 Functional Block Diagram 7.3 Feature Description 7.3.1 Load Regulation 7.4 Device Functional Modes 7.4.1 Protection Diodes 8 Application and Implementation 8.1 Application Information 8.2 Typical Application 8.2.1 Design Requirements 8.2.2 Detailed Design Procedure 8.2.2.1 External Capacitors 8.2.3 Application Curve 8.3 System Examples 9 Power Supply Recommendations 10 Layout 10.1 Layout Guidelines 10.1.1 Heatsink Requirements 10.2 Layout Example 11 Device and Documentation Support 11.1 Community Resources 11.2 Trademarks 11.3 Electrostatic Discharge Caution 11.4 Glossary 12 Mechanical, Packaging, and Orderable Information Page 1 Page 1
