LM2734
SNVS288J – SEPTEMBER 2004 – REVISED DECEMBER 2014
www.ti.com 6.6 Typical Performance Characteristics
All curves taken at VIN = 5 V, VBOOST - VSW = 5 V and TA = 25°C, unless specified otherwise.

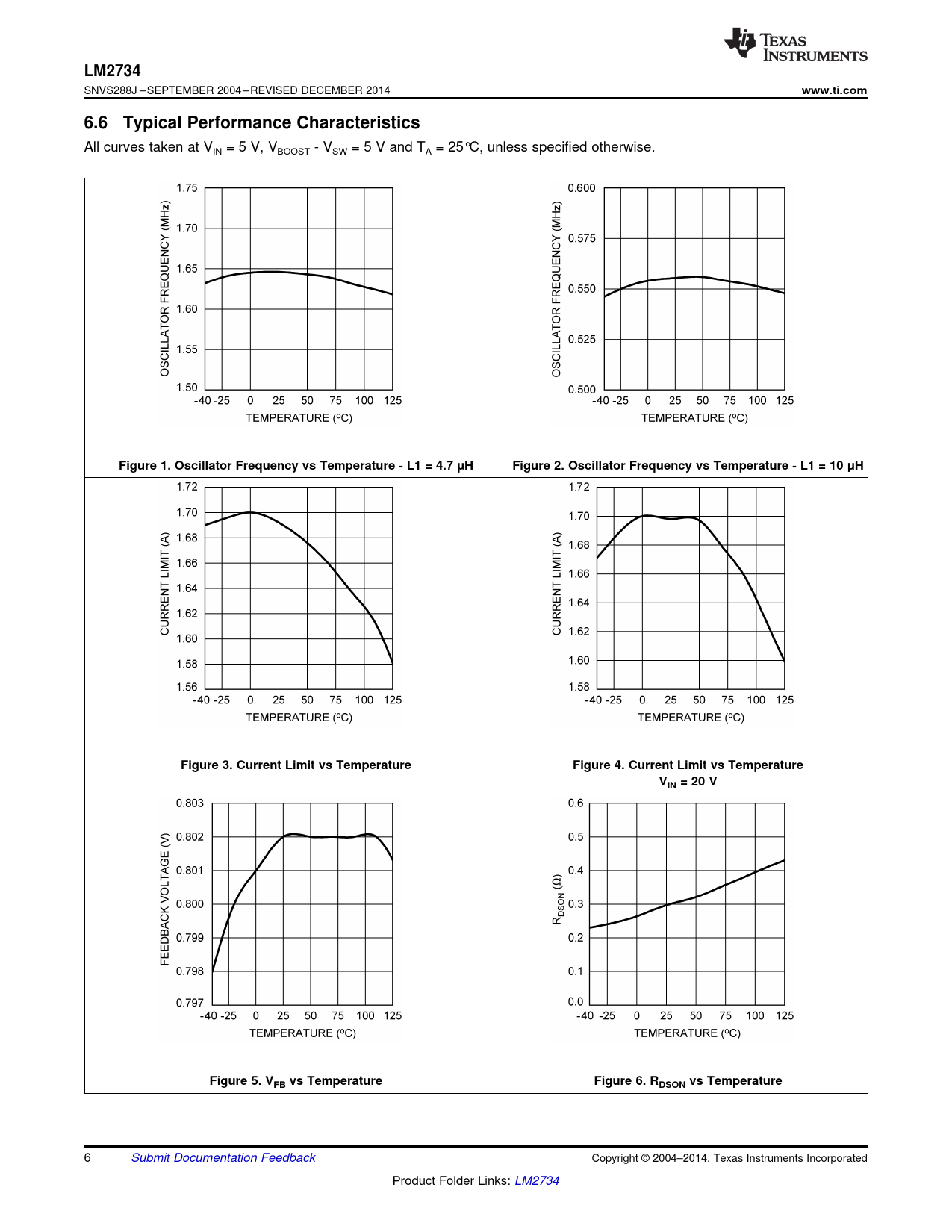

Figure 1. Oscillator Frequency vs Temperature - L1 = 4.7 µH Figure 2. Oscillator Frequency vs Temperature - L1 = 10 μH Figure 3. Current Limit vs Temperature Figure 4. Current Limit vs Temperature VIN = 20 V Figure 5. VFB vs Temperature Figure 6. RDSON vs Temperature
