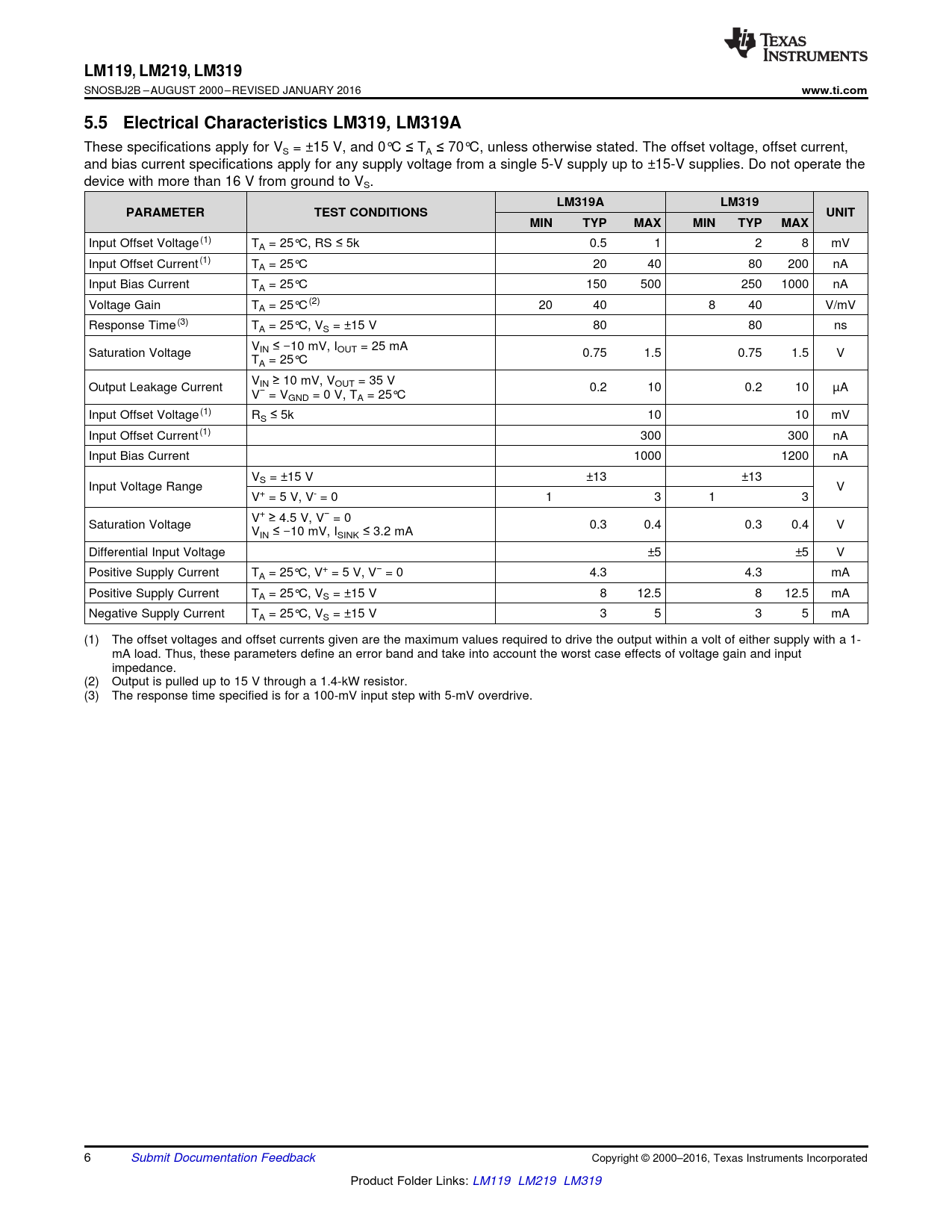

LM119,. LM219,. LM319. www.ti.com. 5.5 Electrical Characteristics LM319, LM319A. LM319A. PARAMETER. TEST CONDITIONS. UNIT. MIN. TYP. MAX
该数据表的模型线
文件文字版本
LM119, LM219, LM319
SNOSBJ2B – AUGUST 2000 – REVISED JANUARY 2016
www.ti.com 5.5 Electrical Characteristics LM319, LM319A
These specifications apply for VS = ±15 V, and 0°C ≤ TA ≤ 70°C, unless otherwise stated. The offset voltage, offset current, and bias current specifications apply for any supply voltage from a single 5-V supply up to ±15-V supplies. Do not operate the device with more than 16 V from ground to VS.
LM319A LM319 PARAMETER TEST CONDITIONS UNIT MIN TYP MAX MIN TYP MAX
Input Offset Voltage(1) TA = 25°C, RS ≤ 5k 0.5 1 2 8 mV Input Offset Current (1) TA = 25°C 20 40 80 200 nA Input Bias Current TA = 25°C 150 500 250 1000 nA Voltage Gain TA = 25°C(2) 20 40 8 40 V/mV Response Time(3) TA = 25°C, VS = ±15 V 80 80 ns V Saturation Voltage IN ≤ −10 mV, IOUT = 25 mA 0.75 1.5 0.75 1.5 V TA = 25°C V Output Leakage Current IN ≥ 10 mV, VOUT = 35 V 0.2 10 0.2 10 µA V− = VGND = 0 V, TA = 25°C Input Offset Voltage(1) RS ≤ 5k 10 10 mV Input Offset Current (1) 300 300 nA Input Bias Current 1000 1200 nA VS = ±15 V ±13 ±13 Input Voltage Range V V+ = 5 V, V- = 0 1 3 1 3 V+ ≥ 4.5 V, V− = 0 Saturation Voltage 0.3 0.4 0.3 0.4 V VIN ≤ −10 mV, ISINK ≤ 3.2 mA Differential Input Voltage ±5 ±5 V Positive Supply Current TA = 25°C, V+ = 5 V, V− = 0 4.3 4.3 mA Positive Supply Current TA = 25°C, VS = ±15 V 8 12.5 8 12.5 mA Negative Supply Current TA = 25°C, VS = ±15 V 3 5 3 5 mA (1) The offset voltages and offset currents given are the maximum values required to drive the output within a volt of either supply with a 1- mA load. Thus, these parameters define an error band and take into account the worst case effects of voltage gain and input impedance. (2) Output is pulled up to 15 V through a 1.4-kW resistor. (3) The response time specified is for a 100-mV input step with 5-mV overdrive. 6 Submit Documentation Feedback Copyright © 2000–2016, Texas Instruments Incorporated Product Folder Links: LM119 LM219 LM319 Document Outline 1 Features 2 Description Table of Contents 3 Revision History 4 Pin Configuration and Functions 5 Specifications 5.1 Absolute Maximum Ratings 5.2 ESD Ratings 5.3 Thermal Information 5.4 Electrical Characteristics LM119, LM219 5.5 Electrical Characteristics LM319, LM319A 5.6 Typical Characteristics 5.6.1 Typical Characteristics – LM119, LM119A, LM219 5.6.2 Typical Characteristics – LM319, LM319A 6 Detailed Description 6.1 Functional Block Diagram 7 Application and Implementation 7.1 Typical Applications 7.1.1 Relay Driver 7.1.2 Window Detector 8 Device and Documentation Support 8.1 Related Links 8.2 Community Resources 8.3 Trademarks 8.4 Electrostatic Discharge Caution 8.5 Glossary 9 Mechanical, Packaging, and Orderable Information
