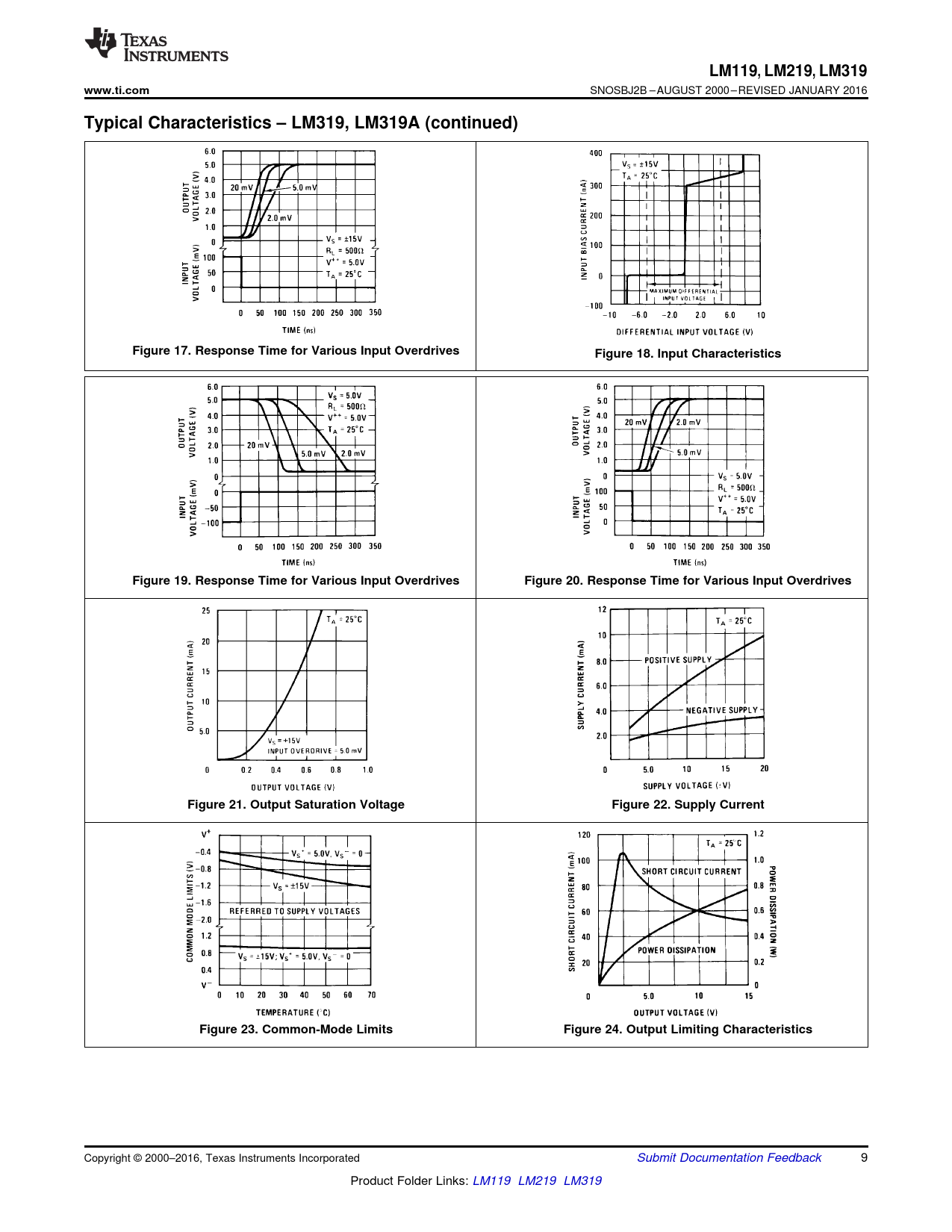

Typical Characteristics – LM319, LM319A (continued) Figure 17. Response Time for Various Input Overdrives Figure 18. Input Characteristics Figure 19. Response Time for Various Input Overdrives Figure 20. Response Time for Various Input Overdrives Figure 21. Output Saturation Voltage Figure 22. Supply Current Figure 23. Common-Mode Limits Figure 24. Output Limiting Characteristics
