TLV2370, TLV2371, TLV2372 TLV2373, TLV2374, TLV2375
SLOS270F – MARCH 2001 – REVISED AUGUST 2016

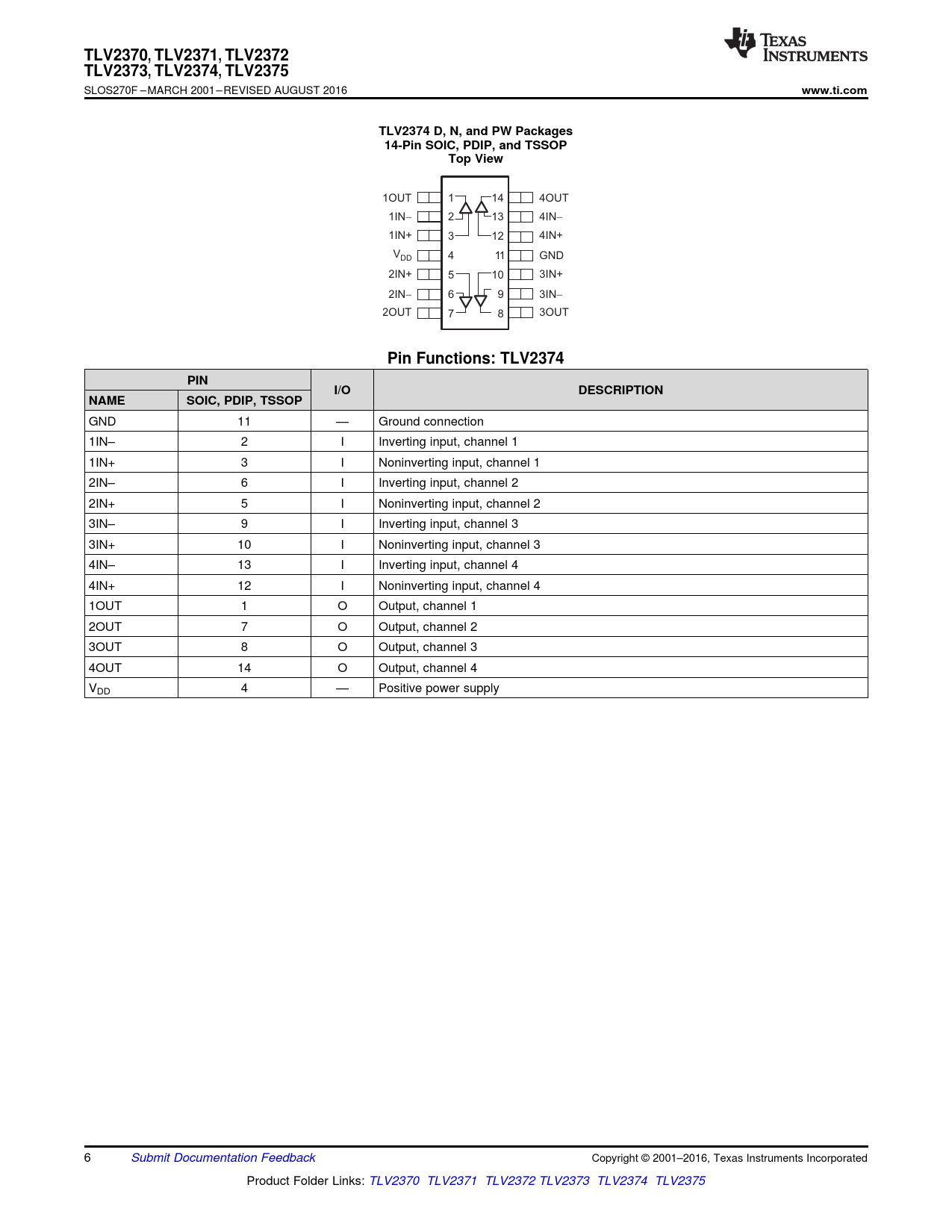

www.ti.com TLV2374 D, N, and PW Packages 14-Pin SOIC, PDIP, and TSSOP Top View
1OUT 1 14 4OUT 1IN 2 13 4IN - - 1IN+ 3 12 4IN+ V 4 11 DD GND 2IN+ 5 10 3IN+ 2IN 6 9 3IN - - 2OUT 7 8 3OUT
Pin Functions: TLV2374 PIN I/O DESCRIPTION NAME SOIC, PDIP, TSSOP
GND 11 — Ground connection 1IN– 2 I Inverting input, channel 1 1IN+ 3 I Noninverting input, channel 1 2IN– 6 I Inverting input, channel 2 2IN+ 5 I Noninverting input, channel 2 3IN– 9 I Inverting input, channel 3 3IN+ 10 I Noninverting input, channel 3 4IN– 13 I Inverting input, channel 4 4IN+ 12 I Noninverting input, channel 4 1OUT 1 O Output, channel 1 2OUT 7 O Output, channel 2 3OUT 8 O Output, channel 3 4OUT 14 O Output, channel 4 VDD 4 — Positive power supply 6 Submit Documentation Feedback Copyright © 2001–2016, Texas Instruments Incorporated Product Folder Links: TLV2370 TLV2371 TLV2372 TLV2373 TLV2374 TLV2375 Document Outline 1 Features 2 Applications 3 Description Table of Contents 4 Revision History 5 Device Comparison Tables 6 Pin Configuration and Functions 7 Specifications 7.1 Absolute Maximum Ratings 7.2 Recommended Operating Conditions 7.3 Thermal Information: TLV2370 7.4 Thermal Information: TLV2371 7.5 Thermal Information: TLV2372 7.6 Thermal Information: TLV2373 7.7 Thermal Information: TLV2374 7.8 Thermal Information: TLV2375 7.9 Electrical Characteristics 7.10 Typical Characteristics 8 Detailed Description 8.1 Overview 8.2 Functional Block Diagram 8.3 Feature Description 8.3.1 Rail-to-Rail Input Operation 8.3.2 Driving a Capacitive Load 8.3.3 Offset Voltage 8.3.4 General Configurations 8.3.5 Shutdown Function 8.4 Device Functional Modes 9 Application and Implementation 9.1 Application Information 9.2 Typical Application 9.2.1 Design Requirements 9.2.2 Detailed Design Procedure 9.2.3 Application Curve 10 Power Supply Recommendations 11 Layout 11.1 Layout Guidelines 11.2 Layout Example 11.3 Power Dissipation Considerations 12 Device and Documentation Support 12.1 Documentation Support 12.1.1 Related Documentation 12.2 Related Links 12.3 Receiving Notification of Documentation Updates 12.4 Community Resources 12.5 Trademarks 12.6 Electrostatic Discharge Caution 12.7 Glossary 13 Mechanical, Packaging, and Orderable Information
